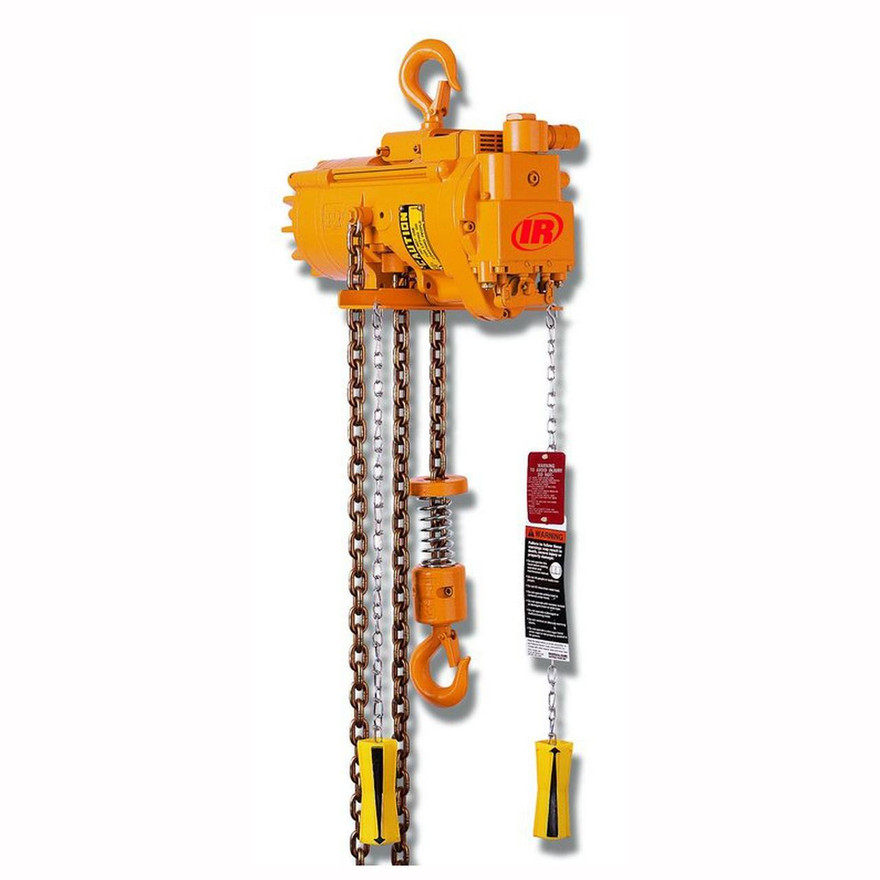

Ingersoll Rand MLK | ML1000K-2C30-C26 | 1 Ton Air Hoist | 30 ft. Lift | Hook Mount | Pendent Control

Built for continuous lifting in manufacturing, maintenance, fabrication, and material handling environments, the Ingersoll Rand ML1000K-2C30-C26 MLK Series Air Chain Hoist combines a 1 Ton (2,200 lb) lifting capacity with a 30 ft lift and 26 ft pendant control drop to provide dependable overhead lifting for demanding industrial operations. Its pneumatic drive makes it well suited for facilities that utilize compressed air, while the pilot pendent control (a suspended hand control that enables precise load positioning) allows operators to accurately raise, lower, and position loads during repetitive lifting tasks.

The MLK Series has delivered dependable industrial lifting performance for more than 25 years and features a modular design with interchangeable service components that simplify maintenance. A 100% duty cycle supports continuous operation throughout production shifts, while the self-adjusting air-operated disc brake, enclosed planetary gearing, and anti-friction bearings help ensure smooth operation and consistent lifting performance. This model features a hook-mounted suspension with a durable steel snap hook for flexible installation across a wide range of overhead lifting applications.

Type: Air Chain Hoist | Series: MLK Series | Capacity: 1 Ton (2,200 lbs) | Lift: 30 ft | Pendant Drop: 26 ft | Control: Pendent Control | Top Suspension: Hook Mount | Bottom Suspension: Steel Snap Hook | Chain Falls: 2 | Hook Mount Headroom: 18 in. | Trolley Mount Headroom: 18 in. | Lifting Speed (Rated Load): 28 ft/min (8.5 m/min) | Lifting Speed (No Load): 53 ft/min (16.2 m/min) | Lowering Speed (Rated Load): 49 ft/min (14.9 m/min) | Lowering Speed (No Load): 30 ft/min (9.1 m/min) | Chain Size: 6.4 × 19.5

Features:

• 100% duty cycle with HMI Duty Classification A5 and FEM 9.511 Duty Classification 2m for continuous production lifting.
• Pilot pendent control provides smooth, responsive load positioning for repetitive material handling tasks.
• Self-adjusting, spring-applied, air-released disc brake delivers dependable load holding with minimal maintenance.
• Planetary gearing distributes loads evenly across multiple gear teeth to improve drivetrain durability.
• Ball and roller bearings support rotating components for efficient, smooth lifting operation.
• Interchangeable motor, brake, and throttle assemblies simplify servicing and reduce maintenance downtime.
• Integrated inlet swivel, exhaust chain lubrication, and accessible control adjustments support routine maintenance.
• Optional spark-resistant configurations are available for specialized industrial environments.

Applications:

• Handling machinery, fabricated components, and production materials in manufacturing facilities.
• Supporting maintenance and repair work involving pumps, motors, gearboxes, and industrial equipment.
• Moving steel products, dies, molds, and tooling throughout fabrication and processing operations.
• Providing overhead lifting for assembly stations requiring continuous-duty hoist performance.
• General warehouse and industrial material handling where precise load control is essential.

FAQs:

• Q: What does the 26 ft pendant drop provide?
  A: The 26 ft pendant drop allows operators to control the hoist from a comfortable working position when the hoist is mounted at elevated heights.
• Q: Is this hoist suitable for continuous production use?
  A: Yes. The MLK Series is rated for a 100% duty cycle with HMI Duty Classification A5, making it suitable for continuous industrial lifting operations within its rated capacity.
• Q: Does this model use hook suspension?
  A: Yes. This SKU is supplied with a hook-mounted suspension and a steel snap hook for attaching and lifting loads.
• Q: Can the pilot pendant control improve load positioning?
  A: Yes. The pilot pendant control provides smooth, responsive operation for accurate lifting and lowering during positioning tasks.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
