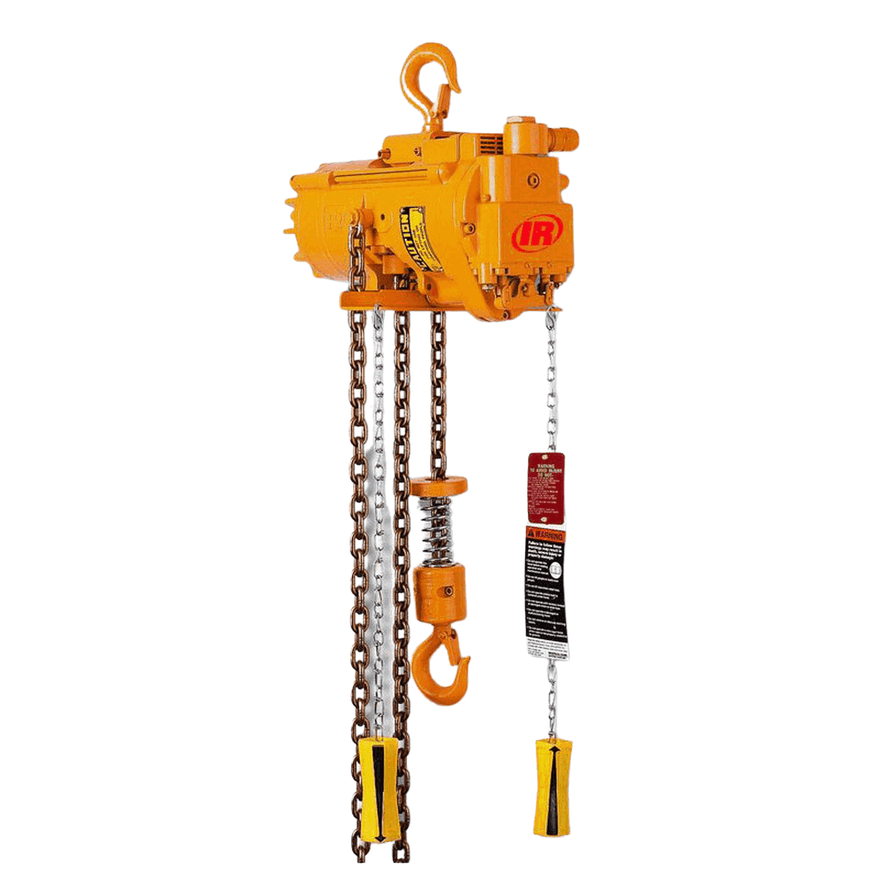

Ingersoll Rand HLK | HL1000K-2C10-C6U | 1 Ton Air Hoist | 10 ft. Lift | Hook Mount | Pendent Control

Ingersoll Rand HLK series air hoists are the ideal choice when high speed, high duty-cycle, precision spotting, and the ability to operate in harsh environments are the determining factors. The HLK Series hoists have proven themselves for years in the most difficult environments. The HLK Series incorporates a larger chain wheel to accommodate 3/8" diameter chain and a lower gear ratio to handle increased load capacities. HLK Series hoist capacities range from 1 to 6 metric tons and are severe-duty rated. The rugged and reliable HLK series share a common design with many interchangeable parts. With high speeds and precise spotting, these hoists are ideal for high production cycle operations. HLK series come with a wide range of options and accessories. HLK series hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control. Spark resistant models are also available.

Features and Benefits: 100% duty cycle. MLK are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m. These hoist are ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications. Pull chain or pilot pendent controls provide precise spotting capabilities. For even more precise control MLKS slow speed models are available. Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement. All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life. Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control. Spark resistant models and a wide range of options and accessories are available. Made In USA

Looking for more information about Ingersoll Rand Air Hoists? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
