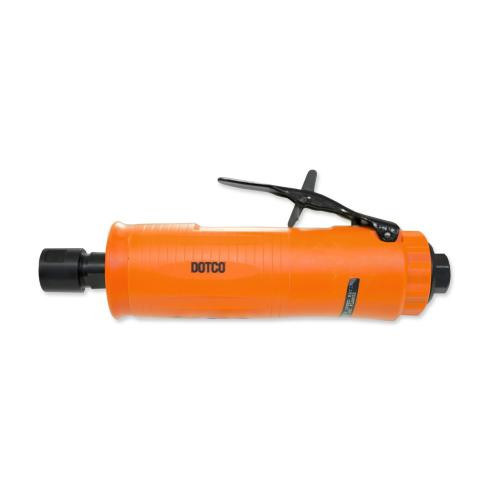

Dotco 12L2080-01M6 Inline Die Grinder | 12-20 Series | 0.6 HP | 25000 RPM | 6mm Collet | Rear Exhaust

Built for fast deburring, edge blending, and controlled material removal with metric-shank accessories, the Dotco 12L2080-01M6 Inline Die Grinder delivers 0.6 HP output and a high 25,000 RPM free speed for smooth cutting action with properly rated carbide burrs and mounted wheels. It's 6mm collet supports common metric tooling, while the inline body gives technicians a straight working approach for cleaning ports, finishing slots, removing casting flash, and dressing small fabricated parts.

Part of the Dotco 12-20 Series, this model uses rear exhaust to route spent air away from the work surface, helping reduce chip movement around the grinding point. The composite housing keeps the tool compact and manageable at 1.4 lbs, making it a practical choice for production deburring, repair work, and detailed finishing where a full-size wheel grinder would remove too much material.

Type: Inline Die Grinder | Series: 12-20 Series | Model: 12L2080-01M6 | Collet Size: 6mm | Power: 0.6 HP / 0.45 kW | Free Speed: 25,000 RPM | Exhaust: Rear | Abrasive Capacity: 3/4" Carbide Burr, 1-1/2" Mounted Wheel | Housing Material: Composite | Length: 6.9" / 175 mm | Weight: 1.4 lbs / 0.64 kg | Air Inlet: 1/4" NPT | Air Pressure: 90 PSI / 620 kPa | Minimum Hose I.D.: 1/4" / 6.4 mm

Features:

• 0.6 HP motor supports burr grinding, small mounted wheel work, edge cleanup, and general die grinder material removal.
• 25,000 RPM free speed helps carbide burrs cut cleanly when matched with accessories rated for the tool speed.
• 6mm collet accepts metric-shank die grinder accessories commonly used in production and repair environments.
• Rear exhaust routes spent air away from the work area to help maintain better visibility at the contact point.
• Composite housing keeps the tool lightweight and manageable for repetitive deburring or finishing tasks.
• Inline configuration gives a straight approach for ports, holes, edges, and small part features.
• Standard equipment includes the applicable collet and collet wrenches for accessory installation and removal.

Made in USA:

Applications:

• Fabrication and welding — removing burrs, blending small welds, cleaning edges, and smoothing cut metal surfaces.
• Automotive and fleet repair — gasket cleanup, casting flash removal, bracket modification, and small-part grinding.
• Machine shops and tool rooms — deburring machined holes, slots, pockets, and profiles with metric-shank burrs.
• Aerospace and composite finishing — trimming, controlled edge cleanup, and detail finishing where a compact inline grinder improves access.
• Industrial maintenance and MRO — preparing parts, cleaning fixtures, removing sharp edges, and maintaining equipment components.

FAQs:

• Q: What is the difference between a 6mm collet and a 1/4" collet?
  A: A 6mm collet is sized for metric-shank accessories, while a 1/4" collet is for inch-size shanks. They are close in size but not interchangeable for safe, secure accessory holding.
• Q: What accessories can be used with the Dotco 12L2080-01M6?
  A: This grinder is rated for a 3/4" carbide burr or a 1-1/2" mounted wheel. Accessories must fit the 6mm collet and have a maximum operating speed equal to or greater than 25,000 RPM.
• Q: Why choose rear exhaust on an inline die grinder?
  A: Rear exhaust directs air away from the grinding point, which can help keep chips and debris from being blown across the work surface during detail work.
• Q: What air setup does this grinder require?
  A: The tool is performance rated at 90 PSI / 620 kPa and should be used with a minimum 1/4" hose I.D. A regulated, lubricated air supply helps maintain speed and protect the motor.
• Q: Is this grinder suitable for precision deburring?
  A: Yes, its inline shape, 6mm collet, and 25,000 RPM speed make it well suited for controlled deburring and small-area finishing when paired with the correct burr or mounted point.

Looking for more information about Dotco Grinder? Click here to view the Catalog

Need help selecting the correct Dotco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
