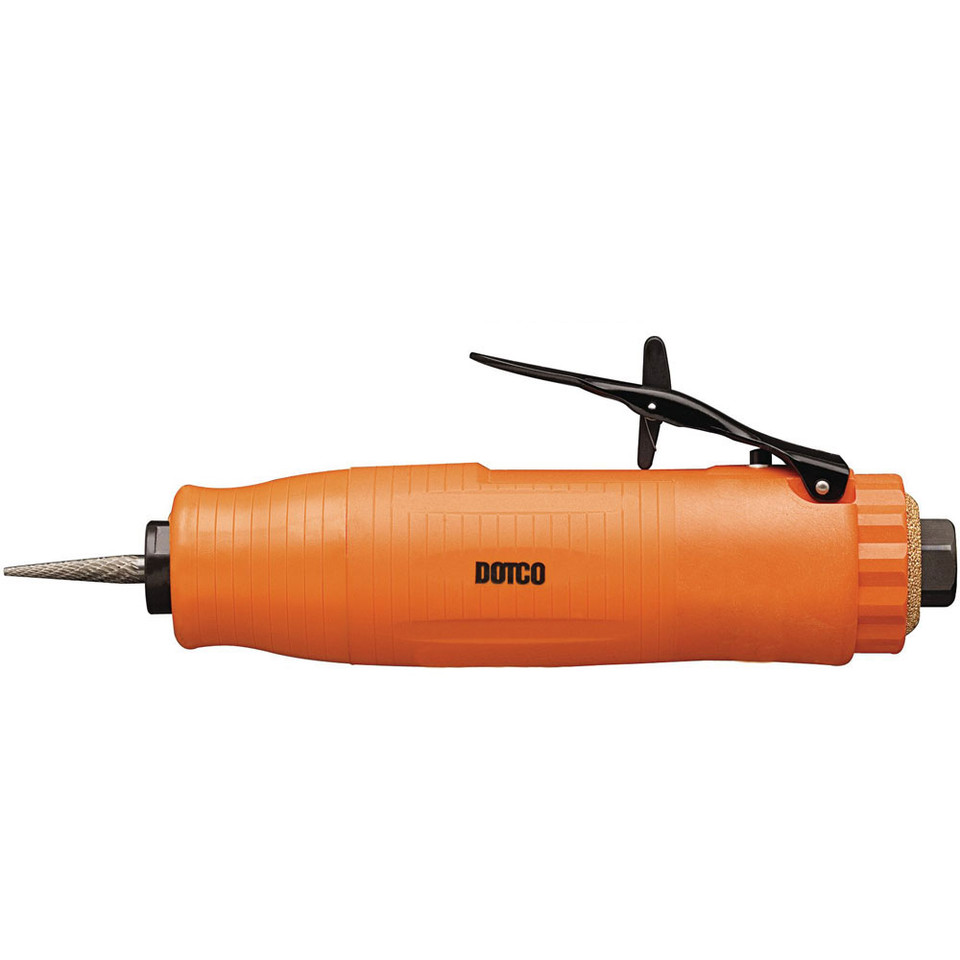

Dotco 12L2003-01 Inline Grinder | 12-20 Series | 0.6 HP | 12,000 RPM | 1/4" Collet | Composite Housing | Front Exhaust

Built for controlled deburring, blending, and small-area grinding, the Dotco 12L2003-01 Inline Grinder delivers 0.6 HP output with a lower 12,000 RPM free speed for applications where accessory control matters more than maximum speed. It's 1/4" collet accepts common carbide burrs and mounted points, while the inline body gives technicians a straight approach for cleaning edges, ports, holes, slots, and machined features.

Part of the Dotco 12-20 Series, this model uses front exhaust to direct spent air forward through the tool. The composite housing keeps the grinder lightweight at 1.4 lbs, making it a practical choice for repetitive finishing, weld cleanup, casting flash removal, and repair work where a compact pneumatic die grinder is easier to control than a larger wheel grinder.

Type: Inline Die Grinder | Series: 12-20 Series | Model: 12L2003-01 | Collet Size: 1/4" | Power: 0.6 HP / 0.45 kW | Free Speed: 12,000 RPM | Exhaust: Front | Throttle Type: Lock-Off Lever | Abrasive Capacity: 3/4" Carbide Burr, 1-1/2" Mounted Wheel | Housing Material: Composite | Length: 6.9" / 175 mm | Weight: 1.4 lbs / 0.64 kg | Air Inlet: 1/4" NPT | Standard Equipment: 200 Series Collet

Features:

• 0.6 HP motor supports deburring, mounted wheel grinding, burr work, and small-part finishing tasks.
• 12,000 RPM free speed provides a controlled speed range for properly rated mounted wheels and carbide burrs.
• 1/4" collet accepts widely used die grinder accessories for shop, repair, and fabrication work.
• Front exhaust directs air forward through the tool for applications where forward exhaust flow is preferred.
• Composite housing helps reduce tool weight for repetitive hand work and detail finishing.
• Lock-off lever throttle helps reduce accidental starts during handling and accessory positioning.
• Standard equipped with 200 Series collet for compatible 1/4" shank accessories.

Made in USA:

Applications:

• Metal fabrication and welding — blending weld edges, removing burrs, and smoothing cut or machined surfaces.
• Machine shops and tool rooms — deburring holes, slots, pockets, and profiles after machining operations.
• Automotive and fleet repair — cleaning gasket surfaces, removing casting flash, and shaping brackets or small parts.
• Industrial maintenance and MRO — preparing replacement parts, cleaning fixtures, and removing sharp edges from equipment components.
• Composite and aerospace finishing — controlled trimming and edge cleanup where a compact inline grinder improves handling.

FAQs:

• Q: What makes the 12,000 RPM version different from faster Dotco 12-20 Series grinders?
  A: The lower free speed gives more control with certain mounted wheels, burrs, and finishing tasks. Faster models may remove material more quickly, but this version is useful when a more controlled accessory speed is preferred.
• Q: What accessories fit the Dotco 12L2003-01?
  A: This grinder uses a 1/4" collet and is rated for a 3/4" carbide burr or a 1-1/2" mounted wheel. Always confirm accessory shank size and maximum RPM before use.
• Q: What does front exhaust mean?
  A: Front exhaust directs spent air forward through the tool rather than out the rear. This configuration may be preferred depending on the operator’s grip, workpiece position, and chip direction.
• Q: Is this tool appropriate for precision deburring?
  A: Yes, the inline shape, 1/4" collet, and 12,000 RPM speed make it useful for controlled deburring and detail finishing when paired with the correct accessory.
• Q: Does this grinder include the collet?
  A: Yes. The manufacturer lists this model as standard equipped with a 200 Series collet.
