Dynabrade 52615 5" Right Angle Central Vacuum Cut-Off Wheel Tool is designed for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites. Adjustable wheel guard has vacuum port, 1-1/4" outside diameter, that diverts airborne dust and debris to optional vacuum source. Non-marring composite base is removable to utilize maximum blade depth of 1-3/16". Shroud/Guide Plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece. Wick Lube System extends gear life with simple lubrication. Exhaust system rotates 360° to ensure exhaust is always directed away from operator. safety-lock throttle lever is included. These tools represent the best in Dynabrade quality and innovation!
IMPORTANT: Speed of tool must not exceed maximum operating speed of accessory. Never mount saw blades or non-reinforced grinding wheels. Always wear eye, face & body protection.

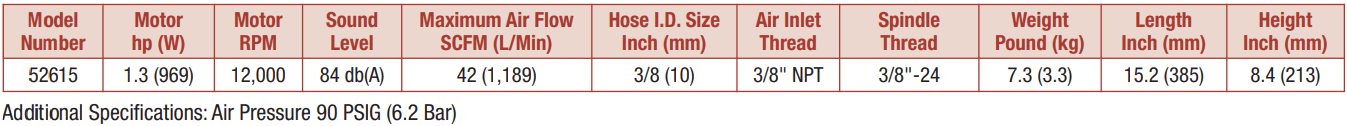

Features:
- Tool Style: Right Angle
- Vacuum Type: Central Vacuum
- Hose I.D. [inches]: 3/8
- Exhaust Type: Rotational
- Air Inlet Thread: 3/8" NPT
- Tool Spindle Thread: 3/8"- 24 Male
- Max. RPM: 12,000
- Max. Air Flow [SCFM]: 42.0
- Model Accepts: Optional 5" diameter Diamond Cut-Off Wheels with 3/4" diameter center hole
- Includes: 95848 Gear Oil and 95541 Gear Oil Gun
- Optional Scoring Assembly: Part No. 53545 Skid allows 1/8" deep score. Includes three screws for attaching
Tech Tip: Dynabrade Air Power Tools are designed to operate at 90 PSIG (6.2 Bar/620 kPa) maximum air pressure at the tool inlet, when the tool is running. To increase tool performance, extend tool life and lessen repair cost use it with a Filter-Regulator-Lubricator (Click Here To Shop FRLs)
Looking for more information about Dynabrade Grinders? Click here to view the Catalog.
For help choosing the correct Pneumatic Grinder for your application, please call (800) 608-5210 or email info@intlairtool.com
