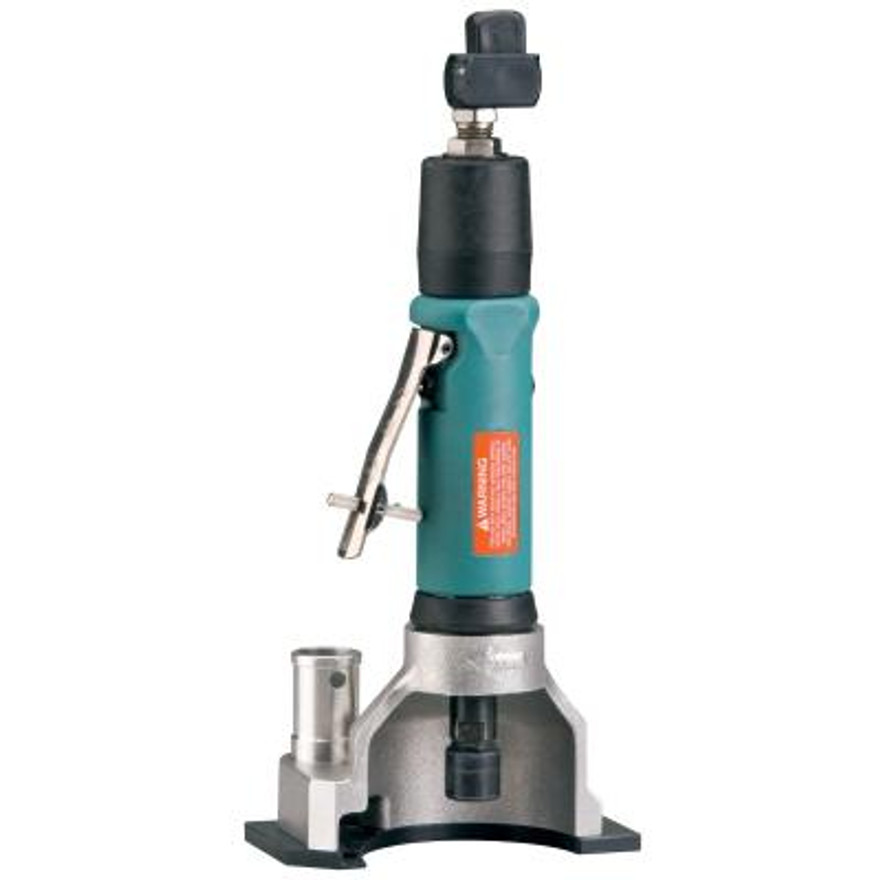

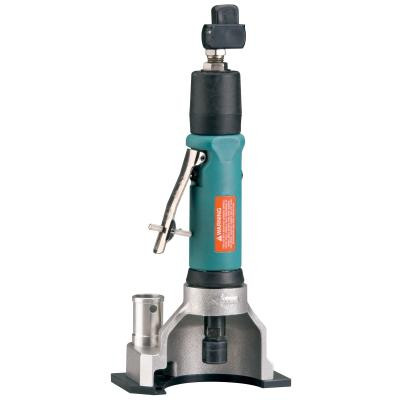

Dynabrade 52418 3" Straight-Line Central Vacuum Flush Cut-Off Wheel Tool | 0.7 HP | 20,000 RPM | Rear Exhaust | 3/8" Collet

MSRP: $881.00
$763.53
(You save $117.47 )
(No reviews yet) Write a Review

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

SKU:
52418
UPC:
616026524187
Availability:
Usually Ships Within 3 to 5 Business Days
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added


Dynabrade 52418 3" Straight-Line Central Vacuum Flush Cut-Off Wheel Tool is ideal for Central Vacuum Systems. The unique shroud and Flange design adds versatility. This too has plenty of power, .7 hp, 20,000 RPM, Rear Exhaust. Unique cutaway shroud design allows 1" (25 mm) wheel depth exposure. Non-marring plastic flange protects work surface while cutting. Includes 94300 Composite Dynaswivel, enhancing operator comfort and control. Adjustable cutting height, from flush to 5/8" (16 mm) above work surface, is achieved by inserting wheel mandrel deeper into collet. Operating tool in horizontal position allows flush-cut trimming of edges. An essential tool for boat builders, pool, spa and shower manufacturers, and in composite industries. Safety-lock lever is included. Extended rear exhaust muffler reduce sound levels. Ideal for both vertical and horizontal operation. A 3" diameter diamond wheel with integrated mandrel is required (sold separately). Tool has 1" Diameter Vacuum Port for Central Vacuum Systems.

IMPORTANT: Speed of tool must not exceed maximum operating speed of accessory. Never mount saw blades or non-reinforced grinding wheels. Always wear eye, face & body protection.

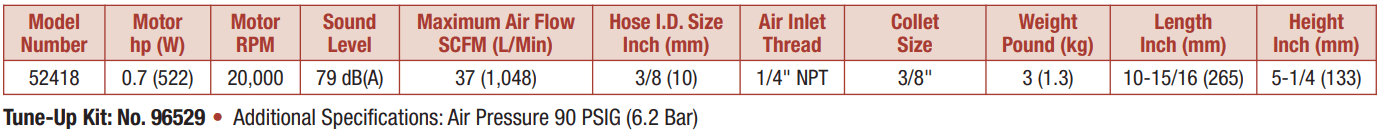

Features:

  • Tool Style: Vertical
  • Vacuum Type: Central Vacuum
  • Hose I.D. [inches]: 3/8
  • Exhaust Type: Rear
  • Air Inlet Thread: 1/4" NPT
  • Collet Insert Size: 3/8"
  • Max. RPM: 20,000
  • Max. Air Flow [SCFM]: 37.0
  • Model Accepts: Optional 3" diameter Diamond Cut-Off Wheels with 3/8" diameter mandrel.


Tech Tip: Dynabrade Air Power Tools are designed to operate at 90 PSIG (6.2 Bar/620 kPa) maximum air pressure at the tool inlet, when the tool is running. To increase tool performance, extend tool life and lessen repair cost use it with a Filter-Regulator-Lubricator (Click Here To Shop FRLs)

industrial-tools-parts-breakdown.pngLooking for more information about Dynabrade Grinders? Click here to view the Catalog.

For help choosing the correct Pneumatic Grinder for your application, please call (800) 608-5210 or email info@intlairtool.com

Limited lifetime warranty against defects on pneumatic tools.

alert-14pt.png WARNING: This or other products sold on this website may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

Type:
Vertical
Motor (HP):
0.7
Free Speed (RPM):
20,000
Exhaust:
Rear
Abrasive Capacity (in.):
3
Hose I.D. [inches]:
3/8
Vacuum Type:
Central Vacuum
Air Inlet Thread:
1/4" NPT
Collet Insert Size:
3/8"
