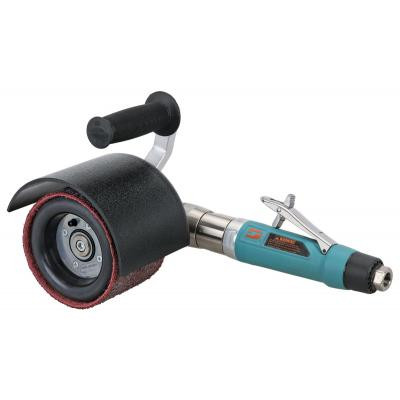

When a finishing job calls for a pronounced, continuous grain pattern rather than aggressive stock removal, the Dynabrade 13450 Dynisher Air-Powered Abrasive Finishing Tool provides the speed and power needed for controlled surface refinement. Its 1 HP pneumatic motor delivers added power for sustained finishing, while the 2,800 RPM free speed produces a deeper, longer grain pattern on the work surface. This combination is particularly useful for refinishing stainless steel sinks, kitchen countertops, fabricated panels, and other visible metal surfaces where grain direction and appearance matter.
The Dynabrade 13450 uses a 3/4-inch wheel arbor and is configured for compatible abrasive belts, conditioning discs, and flap wheels measuring up to 5 inches in diameter. It is an appropriate setup for the optional Dynabrade 92938 Dynacushion pneumatic wheel, which measures 5 inches in diameter by 3-1/2 inches wide. With a maximum airflow requirement of 41 SCFM and operation at 90 PSIG, the tool should be connected to an air system capable of maintaining the specified pressure and flow while the Dynisher is running.
Type: Air-Powered Abrasive Finishing Tool | Model: 13450 | Series: Dynisher | Motor Power: 1 HP (744 W) | Free Speed: 2,800 RPM | Sound Level: 80 dB(A) | Maximum Airflow: 41 SCFM (1,161 L/min) | Wheel Arbor Diameter: 3/4" (19 mm) | Minimum Hose I.D.: 3/8" (10 mm) | Air Inlet: 3/8" NPT | Operating Air Pressure: 90 PSIG (6.2 bar) | Weight: 5.7 lb (2.6 kg) | Length: 15" (381 mm) | Height: 7" (180 mm) | Tune-Up Kit: 96532
Features:
- 1 HP pneumatic motor supplies power for sustained abrasive finishing and graining on metal surfaces.
- 2,800 RPM operating speed creates a deeper and longer grain pattern than faster Dynisher configurations.
- Produces in-line finishes on stainless steel and other compatible metals using a controlled back-and-forth motion.
- Supports abrasive belts, conditioning discs, and flap wheels up to 5 inches in diameter.
- 3/4-inch diameter arbor accommodates compatible Dynabrade finishing accessories.
- Appropriate setup for the optional 92938 Dynacushion pneumatic wheel measuring 5 inches in diameter by 3-1/2 inches wide.
- 80 dB(A) sound level and rear exhaust configuration support use in fabrication and metal-finishing environments.
Applications:
- Stainless steel fabrication — establishing and restoring directional grain patterns on panels, enclosures, and finished assemblies.
- Commercial kitchen equipment — refinishing stainless steel sinks, countertops, worktables, and visible food-service surfaces.
- Architectural metalwork — blending and graining railings, trim, panels, and decorative stainless steel components.
- Metalworking and weld finishing — conditioning areas around welds and matching repaired sections to the surrounding surface pattern.
- Industrial maintenance and restoration — renewing scratched or worn metal surfaces on equipment, fixtures, and fabricated components.
FAQs:
- Q: What type of finish does the Dynabrade 13450 produce?
A: Its 2,800 RPM speed supports a deeper, longer in-line grain pattern on the work surface. The final appearance also depends on the abrasive type, grit, contact pressure, and direction of tool movement. - Q: Does the Dynabrade 13450 include the pneumatic wheel?
A: The 13450 is the finishing tool, and the 92938 Dynacushion pneumatic wheel is listed as an optional accessory. The 13460 Versatility Kit is the separate configuration that includes the 13450 tool, pneumatic wheel, air chuck, abrasives, grease gun, grease, and gear oil. - Q: What air supply does this Dynisher require?
A: The tool operates at 90 PSIG and has a listed maximum airflow of 41 SCFM. Use a compressor and air line capable of maintaining that pressure and airflow at the tool inlet during operation. - Q: What abrasives can be mounted on the 13450?
A: The tool supports compatible abrasive belts, conditioning discs, and flap wheels up to 5 inches in diameter. Confirm the arbor fit, dimensions, and maximum operating-speed rating before mounting any accessory. - Q: How should the optional Dynacushion pneumatic wheel be inflated?
A: Inflate the wheel only enough to hold the abrasive belt without slippage. Excessive inflation can produce chatter marks on the finished surface.
Available Variations and Specifications
| Model Number | Motor HP (W) | Motor RPM | Sound Level | Maximum Air Flow SCFM (LPM) | Wheel Arbor Diameter Inch (mm) | Hose I.D. Size Inch (mm) | Air Inlet Thread | Weight Pound (kg) | Length Inch (mm) | Height Inch (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 13400 | 0.7 (522) | 3,400 | 84 dB(A) | 41 (1,161) | 3/4 (19) | 3/8 (10) | 1/4" NPT | 4.5 (2.0) | 13-1/2 (343) | 9 (229) |
| 13401 | 0.7 (522) | 3,400 | 84 dB(A) | 41 (1,161) | 3/4 (19) | 3/8 (10) | 1/4" NPT | 4.5 (2.0) | 13-1/2 (343) | 9 (229) |
| 13450 | 1 (744) | 2,800 | 80 dB(A) | 41 (1,161) | 3/4 (19) | 3/8 (10) | 3/8" NPT | 5.7 (2.6) | 15 (381) | 7 (180) |
Looking for more information about the Dynabrade Air-Powered Abrasive Belt Tool? For help choosing the correct Dynabrade Tools, please call (800) 608-5210 or email info@intlairtool.com
