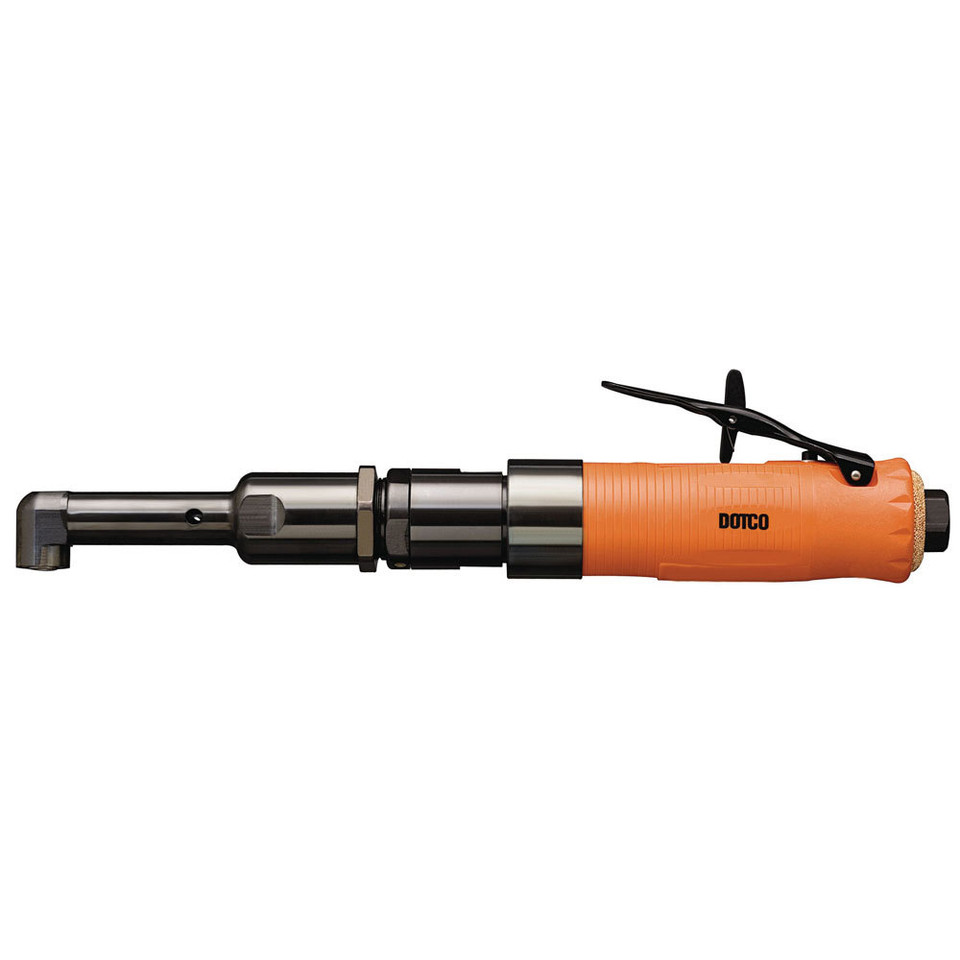

Dotco 15LF282-62 Light Duty Head Right Angle Pneumatic Drill | 15LF Series | 0.4 HP | 4,000 RPM | Composite Housing | Rear Exhaust

Built for drilling in confined workspaces where conventional drills cannot fit, the Dotco 15LF282-62 Right Angle Pneumatic Drill combines a compact 90-degree head with a 0.4 HP motor and a 4,000 RPM free speed to provide controlled drilling for fabrication, aerospace assembly, transportation equipment manufacturing, and industrial maintenance. The lower operating speed offers improved control when working with larger drill bits or materials requiring greater torque, while the composite housing helps reduce tool weight during repetitive tasks. A rear exhaust directs discharged air away from the operator and workpiece, helping maintain a cleaner working area.

The -62 configuration features a standard 1/4"-28 internal thread termination for use with compatible Dotco angle head assemblies. Its high-efficiency motor and gear train deliver dependable pneumatic performance, while the lock-off safety lever helps reduce accidental throttle engagement during handling. The compact head and balanced construction make this model well suited for precision drilling in restricted spaces where accessibility and control are equally important.

Type: Right Angle Pneumatic Drill | Series: 15LF Series | Power: 0.4 HP (0.30 kW) | Free Speed: 4,000 RPM | Termination: 1/4"-28 Internal Thread (-62) | Housing: Composite | Exhaust: Rear | Overall Length: 10.7 in. (272 mm) | Air Inlet: 1/4 in. | Minimum Hose I.D.: 1/4 in.

Features:

• High-efficiency motor and gear train provide dependable pneumatic drilling performance.
• Light-duty small-head right-angle configuration improves access in confined or obstructed work areas.
• Composite housing helps reduce overall tool weight for repetitive drilling applications.
• Rear exhaust directs spent air away from the operator and work surface.
• Lock-off safety lever helps minimize unintended throttle activation.
• Standard -62 configuration with 1/4"-28 internal thread termination for compatible Dotco angle heads.
• Lower 4,000 RPM operating speed provides greater drilling control for applications requiring additional torque.

Made in USA:

Applications:

• Drilling in restricted-access machinery, equipment frames, and structural assemblies.
• Aerospace manufacturing and maintenance requiring compact right-angle tool access.
• Metal fabrication, fixture construction, and production drilling operations.
• Transportation equipment assembly and service where clearance is limited.
• Industrial maintenance and MRO applications requiring controlled-speed pneumatic drilling.

FAQs:

• Q: Why would I choose the 4,000 RPM model instead of a higher-speed version?
  A: The lower free speed provides increased control and is often preferred for larger drill bits or materials where additional torque is beneficial.
• Q: What does the "-62" designation indicate?
  A: It identifies the standard 1/4"-28 internal thread termination used with compatible Dotco angle head assemblies.
• Q: What are the advantages of a right-angle pneumatic drill?
  A: The 90-degree head allows drilling in confined spaces where straight or pistol-grip drills cannot be positioned effectively.
• Q: What air supply is recommended?
  A: The manufacturer specifies a 1/4-inch air inlet with a minimum 1/4-inch inside diameter air hose to provide adequate airflow for normal operation.
