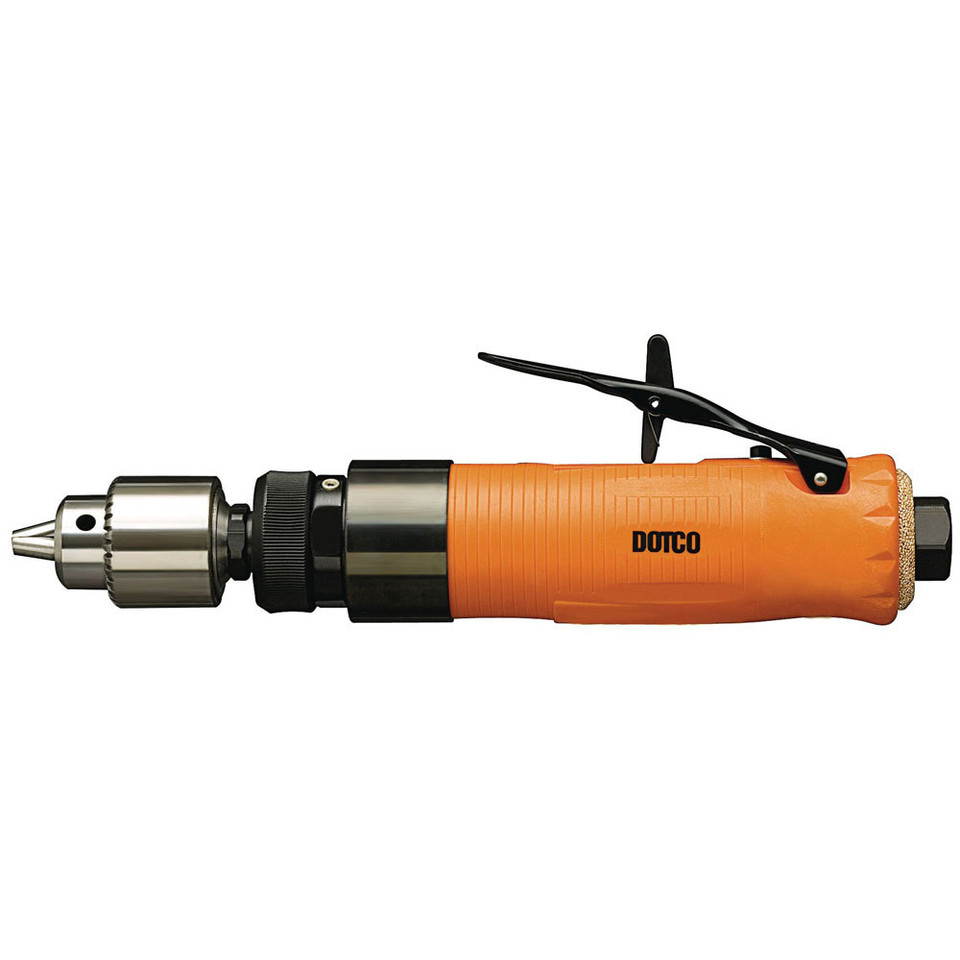

Dotco 15LF081-38 Inline Drill | 15LF Series | 0.4 HP | 1/4" Chuck | 5,300 RPM | 1/4" Drill Diameter Capacity | Composite Housing | Rear Exhaust

Built for production drilling, assembly work, and precision hole-making, the Dotco 15LF081-38 Inline Drill combines a 0.4 HP pneumatic motor with a 5,300 RPM free speed to provide controlled drilling performance in metal, composites, and other industrial materials. Its inline configuration helps keep the drill aligned with the workpiece, making it well suited for repetitive operations where accuracy and balance are important.

Part of the Dotco 15LF Series, this drill features a 1/4" chuck, 1/4" drilling capacity, composite housing, and rear exhaust. The lightweight composite body helps reduce operator fatigue during extended use, while the rear exhaust directs discharged air away from the work area to improve visibility during drilling operations.

Type: Inline Drill | Series: 15LF Series | Model: 15LF081-38 | Power: 0.4 HP | Free Speed: 5,300 RPM | Chuck Size: 1/4" | Drilling Capacity: 1/4" | Housing: Composite | Exhaust: Rear

Features:

• 0.4 HP pneumatic motor delivers dependable power for production drilling and assembly applications.
• 5,300 RPM free speed provides controlled drilling performance across a variety of industrial materials.
• Inline configuration promotes accurate hole alignment and balanced tool handling.
• 1/4" chuck securely holds compatible drill bits for precision drilling operations.
• 1/4" maximum drilling capacity accommodates common industrial drilling tasks.
• Composite housing helps reduce overall tool weight during repetitive production use.
• Rear exhaust directs spent air away from the operator and finished work surface.

Made in USA:

Applications:

• Production drilling in manufacturing and assembly environments.
• Drilling aluminum, steel, composites, and fabricated components.
• Aircraft, aerospace, and transportation assembly where precision hole placement is important.
• Maintenance, repair, and overhaul operations requiring lightweight pneumatic drilling tools.
• General fabrication, fixture building, and shop drilling applications.

FAQs:

• Q: What is the maximum drilling capacity of this tool?
  A: The 15LF081-38 is rated for drilling holes up to 1/4 inch in diameter when used with appropriate drill bits and operating conditions.
• Q: Why choose an inline drill instead of a pistol-grip drill?
  A: An inline drill keeps the motor and spindle aligned with the workpiece, providing excellent control for straight, accurate drilling in production and assembly applications.
• Q: What benefits does the composite housing provide?
  A: The composite housing helps reduce tool weight while providing a comfortable grip for repetitive drilling operations.
• Q: What is the purpose of the rear exhaust?
  A: Rear exhaust directs discharged air away from the work area, helping improve visibility and reducing airflow across the workpiece.

Looking for more information about Dotco Drill? Click here to view the Catalog

Need help selecting the correct Dotco Drills for your application? Please call (800) 608-5210 or email info@intlairtool.com
