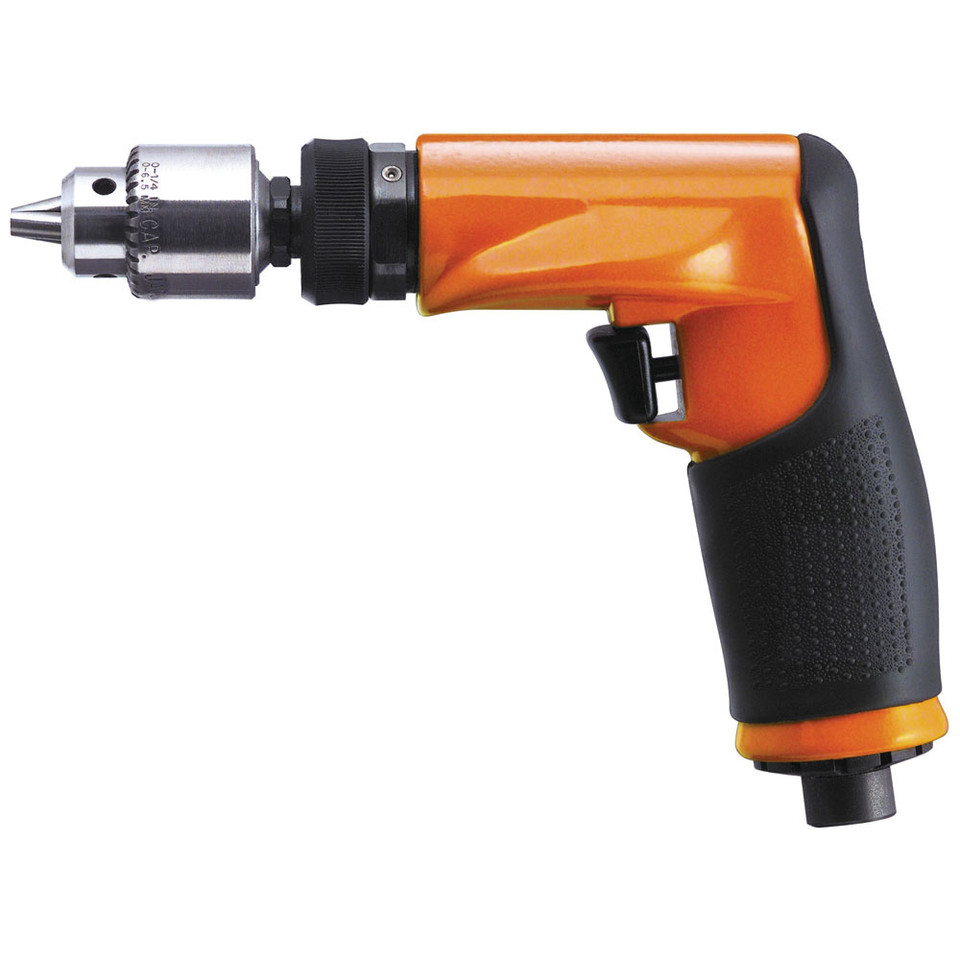

Built for controlled hole-making in production, fabrication, and assembly work, the Dotco 14CFS96-51 non-reversible pneumatic drill delivers a balanced combination of 0.4 HP power and 700 RPM free speed for applications where accuracy, repeatability, and tool control matter. Its 3/8" chuck accepts common drill bits for general drilling tasks, while the non-reversible design keeps operation straightforward for dedicated forward-drilling applications.
Part of the 14CF Series, this Dotco air drill uses a lightweight composite housing to reduce hand fatigue during repeated drilling cycles. The molded grip profile helps guide the operator’s hand position, making the tool a practical choice for aerospace assembly, metal fabrication, woodworking, and industrial maintenance environments that require dependable pneumatic drilling performance.
Type: Pneumatic Drill | Series: 14CF Series | Model: 14CFS96-51 | Operation: Non-Reversible | Power: 0.4 HP | Free Speed: 700 RPM | Chuck Capacity: 3/8" | Housing: Composite
Features:
- 0.4 HP pneumatic motor supports controlled drilling in production and maintenance settings.
- 700 RPM free speed provides a moderate drilling pace for accuracy-focused applications.
- 3/8" chuck accommodates commonly used drill bits for shop and assembly work.
- Non-reversible configuration is suited for dedicated forward-drilling operations.
- Composite housing helps reduce tool weight during repeated drilling cycles.
- Molded grip design supports steady handling and improved control.
Made in USA:
Applications:
- Aerospace assembly work requiring controlled pneumatic drilling.
- Metal fabrication shops drilling steel, aluminum, and other workpieces.
- Woodworking operations where a compact air drill is preferred.
- Industrial maintenance departments performing routine drilling tasks.
- Production environments with repetitive forward-drilling requirements.
FAQs:
- Q: Is the Dotco 14CFS96-51 reversible?
A: No. This model is non-reversible and is intended for forward drilling only. - Q: What chuck size does this drill use?
A: The 14CFS96-51 is equipped with a 3/8" chuck for use with compatible drill bits. - Q: What does 700 RPM mean for drilling?
A: The 700 RPM free speed gives the tool a controlled drilling rate, which is useful when accuracy and steady bit control are more important than high-speed drilling. - Q: What type of work is this drill used for?
A: It is commonly used for production drilling, fabrication, aerospace assembly, woodworking, and general industrial maintenance tasks.
| SKU | Termination | Free Speed (rpm) | Exhaust | Weight | Weight (kg) | Length | Length (mm) |
|---|---|---|---|---|---|---|---|
| Lb | in | ||||||
| 14CFS90-51 | 3/8“ Chuck | 29000 r/min | Rear | 1.54 | 0.70 kg | 5.7 | 145 mm |
| 14CFS91-51 | 3/8“ Chuck | 5200 r/min | Rear | 1.54 | 0.70 kg | 5.7 | 145 mm |
| 14CFS92-51 | 3/8“ Chuck | 3800 r/min | Rear | 1.54 | 0.70 kg | 5.7 | 145 mm |
| 14CFS93-51 | 3/8“ Chuck | 3200 r/min | Rear | 1.54 | 0.70 kg | 5.7 | 145 mm |
| 14CFS94-51 | 3/8“ Chuck | 2400 r/min | Rear | 1.54 | 0.70 kg | 5.7 | 145 mm |
| 14CFS95-51 | 3/8“ Chuck | 1000 r/min | Rear | 1.76 | 0.80 kg | 6.9 | 175 mm |
| 14CFS96-51 | 3/8“ Chuck | 700 r/min | Rear | 1.76 | 0.80 kg | 6.9 | 175 mm |
| 14CFS97-51 | 3/8“ Chuck | 600 r/min | Rear | 1.76 | 0.80 kg | 6.9 | 175 mm |
Looking for more information about Dotco Drill? Click here to view the Catalog
Need help selecting the correct Dotco Drills for your application? Please call (800) 608-5210 or email info@intlairtool.com
