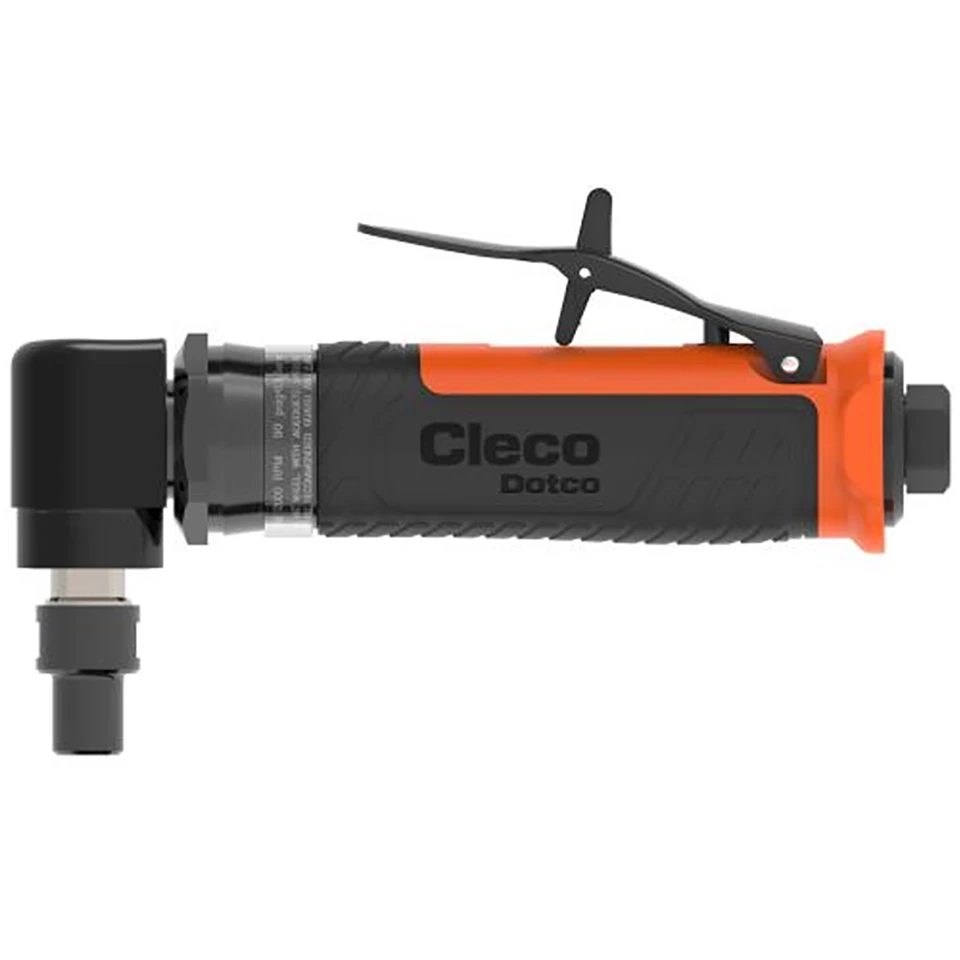

Built for precision deburring, weld blending, edge finishing, and detailed material removal, the Dotco 12LF201-36 Right Angle Grinder combines a compact 90-degree head with 0.4 HP output and a 20,000 RPM free speed for controlled performance in confined work areas. Its 1/4" collet accommodates a wide selection of carbide burs, mounted points, and rotary accessories, making it well suited for production environments where precision and accessibility are equally important.
Featuring a lightweight composite housing, this grinder helps reduce tool weight while providing a comfortable grip during repetitive finishing operations. The front exhaust directs discharged air away from the operator's hand while helping improve visibility around the work area. As part of the 12LF Series, this pneumatic grinder is suited to aerospace manufacturing, metal fabrication, automotive component finishing, tool and die work, and industrial maintenance applications.
Type: Right Angle Grinder | Series: 12LF Series | Power: 0.4 HP | Free Speed: 20,000 RPM | Collet Capacity: 1/4" | Housing: Composite | Exhaust: Front Exhaust
Features:
- Compact right angle head improves access when grinding, deburring, and blending in restricted work areas.
- 0.4 HP pneumatic motor delivers consistent power for precision material removal and finishing operations.
- 20,000 RPM free speed supports efficient use with properly rated carbide burs, mounted points, and rotary accessories.
- 1/4" collet accepts a broad range of standard industrial grinding and deburring accessories.
- Composite housing helps reduce tool weight while providing a comfortable, durable grip during extended use.
- Front exhaust directs spent air away from the work area to help maintain visibility while finishing parts.
Made in USA:
Applications:
- Aerospace manufacturing for deburring machined components, edge blending, and precision finishing.
- Metal fabrication shops performing weld cleanup, contour blending, and surface preparation.
- Automotive and performance engine work including porting, gasket cleanup, and component rework.
- Tool and die operations requiring detailed grinding and finishing in confined areas.
- Industrial maintenance departments performing equipment repair, part reconditioning, and general finishing tasks.
FAQs:
- Q: What is the advantage of a 1/4" collet?
A: A 1/4" collet accepts many of the most common industrial carbide burs, mounted points, and rotary accessories, providing broad accessory compatibility. - Q: Why choose a right angle grinder instead of a straight grinder?
A: The 90-degree head allows better access around obstructions, inside assemblies, and along tight corners where a straight grinder is difficult to position. - Q: What are the benefits of the composite housing?
A: Composite construction helps reduce overall tool weight while providing a comfortable grip and added resistance to temperature transfer during extended operation. - Q: Is this grinder suitable for heavy stock removal?
A: This model is intended for precision grinding, deburring, blending, and finishing applications rather than aggressive heavy material removal.
| SKU | Collet Size | Exhaust | Free Speed r/min |
Abrasive Capacity Grinder | Abrasive Capacity Sander | Spindle Size | Weight Lb |
Length in |
Head Height in |
Air Inlet Size in |
|---|---|---|---|---|---|---|---|---|---|---|
| 12LF280-32 | 1/4 in-28i | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1/4“-28 | 1.1 | 6.6 | 2.70 | 1/4 in |
| 12LF280-32OH | 1/4 in-28i | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1/4“-28 | 1.1 | 6.6 | 2.70 | 1/4 in |
| 12LF281-32 | 1/4 in-28i | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1/4“-28 | 1.1 | 6.6 | 2.70 | 1/4 in |
| 12LF281-32OH | 1/4 in-28i | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1/4“-28 | 1.1 | 6.6 | 2.70 | 1/4 in |
| 12LF200-36 | 1/4 in | Front | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF200-36M6 | 1/4 in | 6mm | Front | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF201-36 | 1/4 in | Front | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF201-36M6 | 1/4 in | 6mm | Front | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF280-36 | 1/4 in | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF280-36M6 | 1/4 in | 6mm | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF280-36M6OH | 1/4 in | 6mm | Rear | 12000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF281-36 | 1/4 in | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF281-36M6 | 1/4 in | 6mm | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF281-36M6OH | 1/4 in | 6mm | Rear | 20000 | 1/2“ Carbide Burr, 1“ Mounted Wheel | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF201-32 | 1/4 in-28i | Front | 20000 | 2“ (50 mm) Sanding/Polishing disc | 2“ (50 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF200-32 | 1/4 in-28i | Front | 12000 | 3“ (75 mm) Sanding/Polishing disc | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in | |
| 12LF280-27 | 3/8 in-24e | Rear | 12000 | 3“ (75 mm) Sanding/Polishing disc | 3“ (75 mm) Sanding/Polishing disc | 1.1 | 6.6 | 2.70 | 1/4 in |
Looking for more information about Dotco Grinder? Click here to view the Catalog
Need help selecting the correct Dotco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
