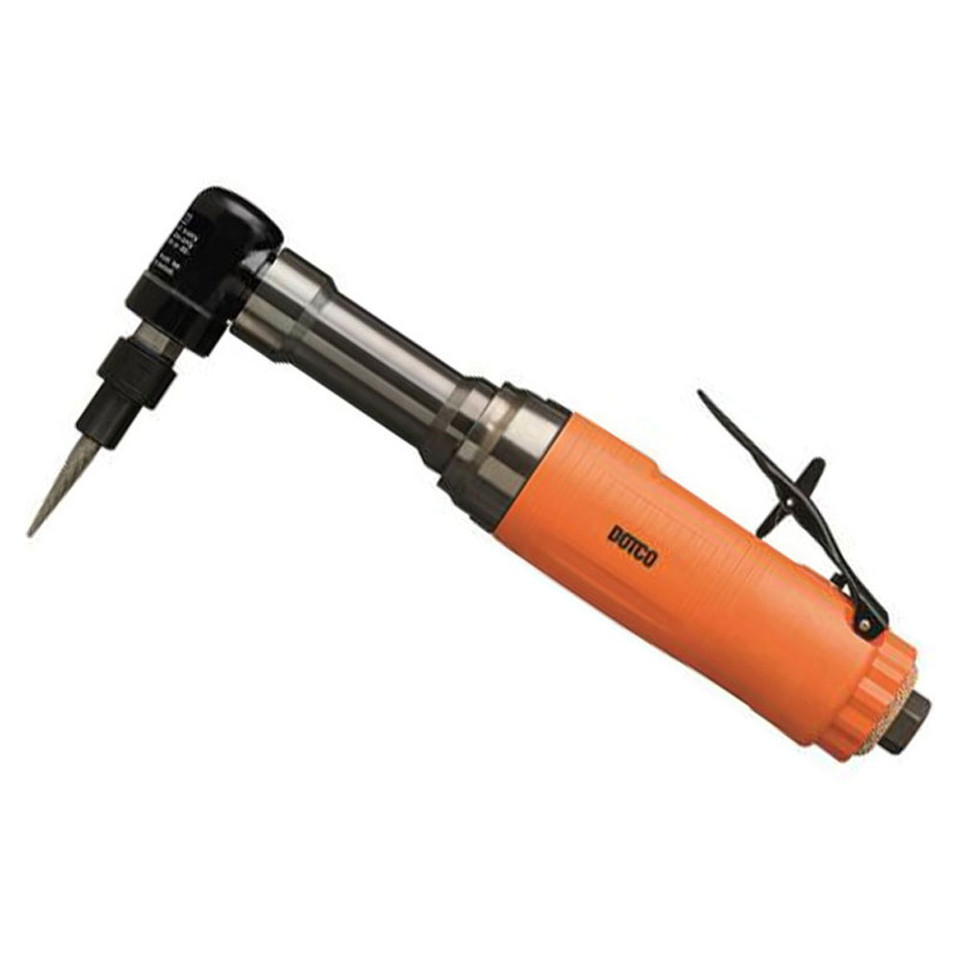

Dotco 12L2777-36 Heavy Duty Head Right Angle Grinder | 12-27 Series | 0.9 HP | 12,000 RPM | 1/4" Collet | Composite Housing

Built for higher-output deburring, weld blending, and controlled material removal in tight work areas, the Dotco 12L2777-36 Heavy Duty Head Right Angle Grinder pairs a 0.9 HP pneumatic motor with a 12,000 RPM free speed for strong cutting action with larger compatible burrs and mounted wheels. The 1/4" collet accepts common carbide burr tooling, while the heavy duty right-angle head improves access around fixtures, frames, castings, and fabricated assemblies where straight grinders are harder to position.

Part of the Dotco 12-27 Series, this model features a composite housing, rear exhaust, and a 3" extension for added reach into recessed areas. Its 3/4" carbide burr and 1.25" mounted wheel capacity make it a practical choice for production grinding, repair work, and finishing operations that require a compact tool with more power than smaller angle grinders.

Type: Heavy Duty Head Right Angle Grinder | Series: 12-27 Series | SKU: 12L2777-36 | Power: 0.9 HP | Free Speed: 12,000 RPM | Collet Size: 1/4" | Abrasive Capacity: 3/4" Carbide Burr, 1.25" Mounted Wheel | Housing: Composite | Exhaust: Rear | Extension: 3" | Overall Length: 10.5" | Weight: 2.3 lbs

Features:

• 0.9 HP motor provides added grinding power for higher material removal demands.
• Heavy duty right-angle head improves access in confined grinding and finishing locations.
• 12,000 RPM free speed supports controlled use with compatible burrs and mounted wheels.
• 1/4" collet accepts common carbide burr tooling for deburring and shaping work.
• Composite housing helps reduce tool weight while maintaining jobsite durability.
• Rear exhaust directs air away from the work area and operator.
• 3" extension provides extra reach into recessed features, castings, and assemblies.

Made in USA:

Applications:

• Deburring machined parts, castings, and fabricated metal components.
• Blending welds and smoothing edges in fabrication and repair shops.
• Die, mold, and pattern work requiring controlled access with a right-angle tool.
• Production finishing where a compact grinder must reach around fixtures or inside assemblies.
• Maintenance and MRO work on equipment frames, brackets, housings, and tight-clearance parts.

FAQs:

• Q: What accessories can be used with the Dotco 12L2777-36?
  A: This grinder uses a 1/4" collet and is rated for a 3/4" carbide burr or a 1.25" mounted wheel. Always confirm the accessory’s maximum RPM before use.
• Q: What does the 3" extension help with?
  A: The extension gives the operator more reach into recessed or obstructed areas, which is useful when grinding inside castings, brackets, frames, and assemblies.
• Q: Is this model stronger than smaller 0.6 HP Dotco angle grinders?
  A: Yes. The 0.9 HP motor provides more power for higher material removal work, while the 12,000 RPM speed remains controlled for compatible burrs and mounted wheels.
• Q: Does this grinder include the burr?
  A: No. Burrs and mounted wheels are selected separately based on the material, shape, and finishing requirement.

Looking for more information about Dotco Grinder? Click here to view the Catalog.

Need help selecting the correct Dotco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
