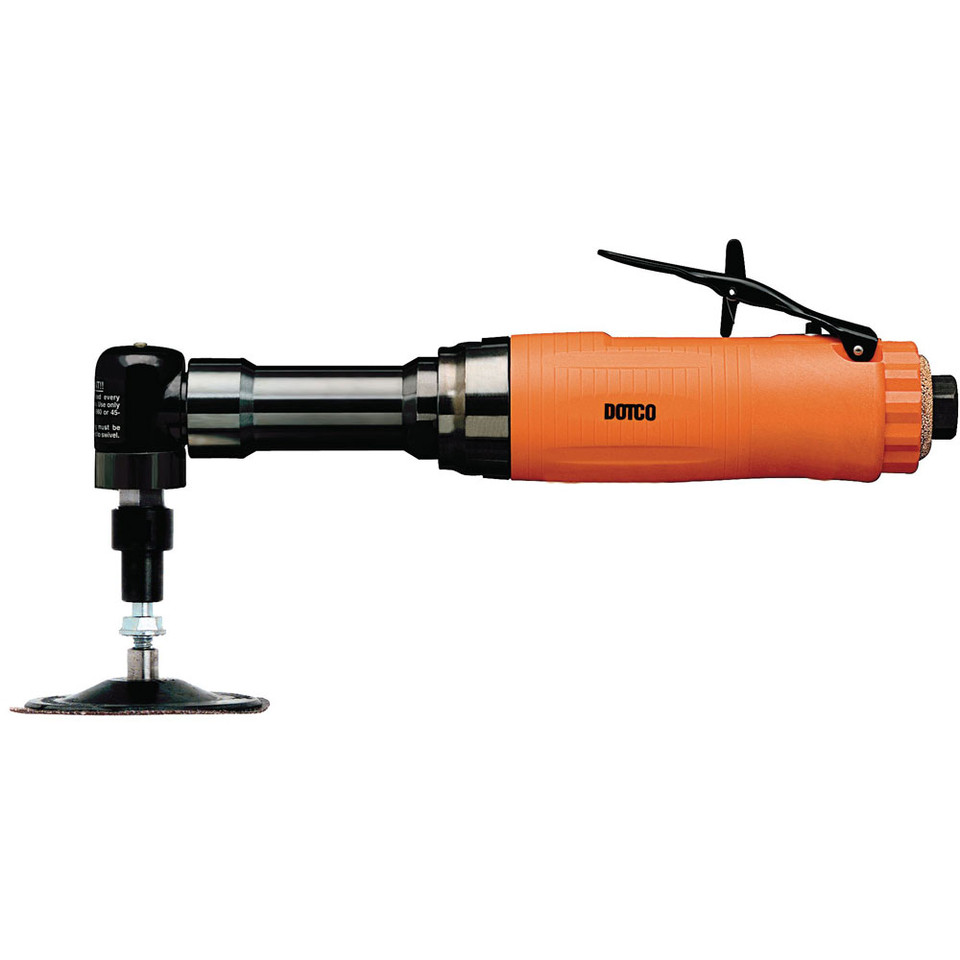

Built for precision material removal, weld blending, deburring, and surface preparation in fabrication, aerospace, metalworking, and industrial maintenance environments, the Dotco 12L2277-36 Right Angle Grinder combines a compact right-angle configuration with a 0.6 HP motor and 12,000 RPM free speed to provide controlled performance in areas that are difficult to access with straight grinders. Its right-angle head improves working access around corners, inside assemblies, and along confined surfaces, while the rear exhaust helps direct airflow away from the workpiece for a cleaner operating area.
Part of the Dotco 12-22 Series, this grinder features a composite housing that helps reduce tool weight while maintaining durability for daily production use. The 300 Series collet accepts compatible carbide burrs and mounted wheels, allowing operators to perform deburring, edge cleanup, light grinding, and finishing tasks with excellent control. The heavy-duty low-profile head further improves accessibility when working in restricted spaces. Product specifications and features are based on the manufacturer catalog.
Type: Right Angle Grinder | Series: 12-22 Series | Motor Power: 0.6 HP (0.45 kW) | Free Speed: 12,000 RPM | Collet: 1/4 in. (300 Series) | Abrasive Capacity: 1/2 in. Carbide Burr, 1 in. Mounted Wheel | Extension: 3 in. | Housing: Composite | Exhaust: Rear | Weight: 2.2 lb | Length: 10 in. | Air Inlet: 1/4 in. | Minimum Hose I.D.: 5/16 in.
Features:
- 0.6 HP pneumatic motor provides dependable power for deburring, blending, and light grinding applications.
- 12,000 RPM free speed delivers controlled material removal while maintaining accessory stability.
- Heavy-duty low-profile right-angle head improves access in confined or difficult-to-reach work areas.
- Composite housing helps reduce tool weight for improved handling during extended use.
- Rear exhaust directs discharged air away from the work surface to help maintain visibility.
- 300 Series 1/4 in. collet accepts compatible carbide burrs and mounted wheels.
- Supplied with applicable collet and collet wrenches as standard equipment.
Made in USA:
Applications:
- Deburring machined parts and fabricated components.
- Blending welds and cleaning edges before finishing operations.
- Surface preparation using carbide burrs and mounted wheels.
- Working inside confined assemblies where straight grinders have limited access.
- Maintenance, repair, and production material removal in manufacturing facilities.
FAQs:
- Q: What accessories can be used with this grinder?
A: The 1/4-inch 300 Series collet is intended for compatible carbide burrs and mounted wheels within the manufacturer's specified size and speed limits. - Q: Why choose a right-angle grinder instead of an inline grinder?
A: A right-angle configuration provides improved access around corners, inside assemblies, and on surfaces where an inline tool is difficult to position. - Q: What is the benefit of the rear exhaust?
A: Rear exhaust directs air away from the work area and operator, helping improve visibility while reducing debris around the finished surface. - Q: What air hose size is recommended?
A: The manufacturer recommends a minimum 5/16-inch inside diameter air hose for proper airflow and performance.
| SKU | Collet Size | Exhaust | Free Speed | Abrasive Capacity Grinder | Abrasive Capacity Sander | Weight | Length | Head Height | Air Inlet Size |
|---|---|---|---|---|---|---|---|---|---|
| r/min | Lb | in | in | in | |||||
| 10L2778-36 | 1/4 in | Rear | 14500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.4 | 10.5 | 2.90 | 1/4 in |
| 10L2778-45 | 1/4 in | Rear | 14500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.4 | 10.5 | 2.90 | 1/4 in |
| 12L2277-36 | 1/4 in | Rear | 12000 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10 | 2.70 | 1/4 in |
| 12L2278-36 | 1/4 in | Rear | 14500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10 | 2.70 | 1/4 in |
| 12L2776-36 | 1/4 in | Rear | 13500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10.5 | 2.90 | 1/4 in |
| 12L2777-32 | 1/4 in-28i | Rear | 12000 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10.5 | 2.90 | 1/4 in |
| 12L2777-36 | 1/4 in | Rear | 12000 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10.5 | 2.90 | 1/4 in |
| 12L2777-45 | 1/4 in | Rear | 12000 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10.5 | 2.90 | 1/4 in |
| 12L2778-36 | 1/4 in | Rear | 14500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 4“ (100mm) Sanding/Polishing Disc | 2.2 | 10.5 | 2.90 | 1/4 in |
| 12L2778-45 | 1/4 in | Rear | 14500 | 3/4“ Carbide Burr, 1.25“ Mounted Wheel | 2.2 | 10.5 | 2.90 | 1/4 in | |
| 12L2776-30 | 1/4 in-20i | Rear | 13500 | 4“ Sanding Disc | 2.2 | 10.5 | 2.90 | 1/4 in | |
| 12L2776-32 | 1/4 in-28i | Rear | 13500 | 4“ Sanding Disc | 2.2 | 10.5 | 2.90 | 1/4 in | |
| 12L2777-28OH | 3/8 in-24e | Rear | 12000 | 4“ Type 1 Cut-Off Wheel | 3.3 | 10.9 | 2.90 | 1/4 in | |
| 12L2778-28 | 3/8 in-24e | Rear | 14500 | 4“ Type 1 Cut-Off Wheel | 3.3 | 10.9 | 2.90 | 1/4 in | |
| 12L2778-84 | 3/8 in-24e | Rear | 14500 | 4“ Type 27 Wheel | 2.87 | 10.5 | 2.30 | 1/4 in |
Looking for more information about Dotco Grinder? Click here to view the Catalog.
Need help selecting the correct Dotco Grinders for your application? Please call (800) 608-5210 or email info@intlairtool.com
