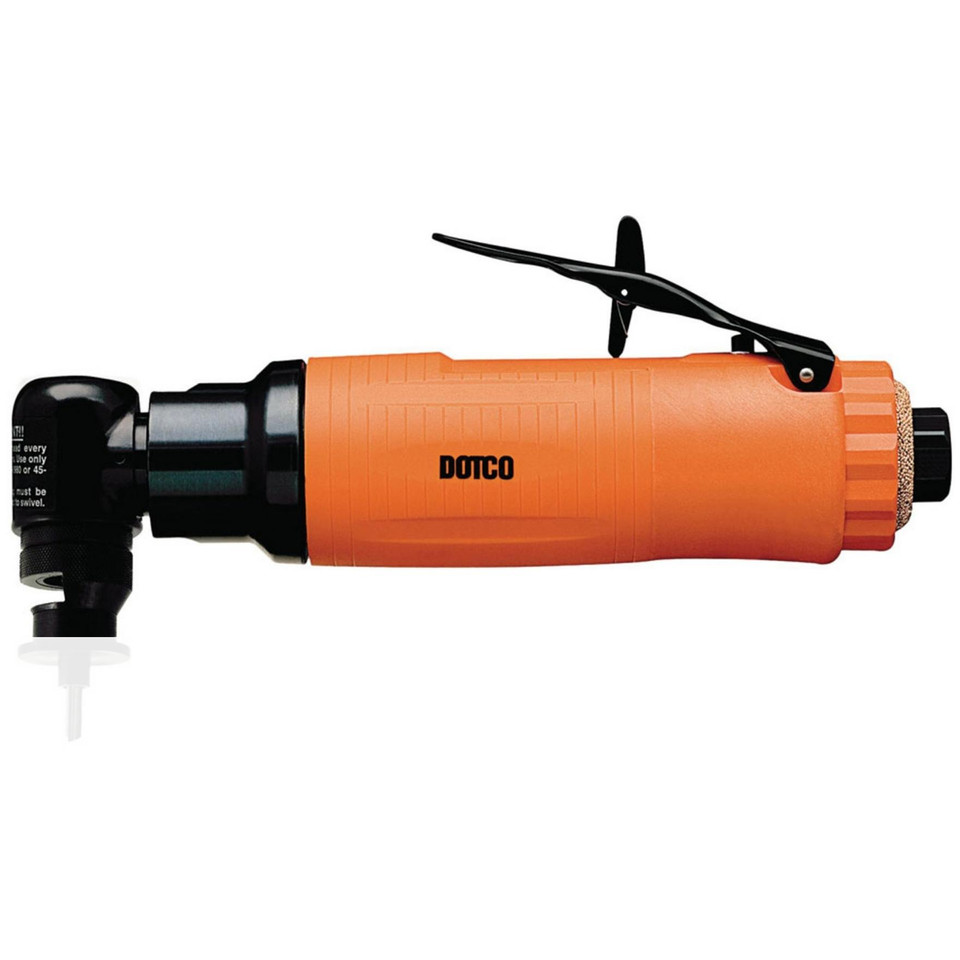

Dotco 12L1300-36RT Right Angle Router | 12 Series | Gearless Drive | 0.3 HP | 30,000 RPM | Front Exhaust

Built for high-speed trimming, routing, and controlled edge work, the Dotco 12L1300-36RT right angle router pairs a 0.3 HP pneumatic motor with a 30,000 RPM free speed for fast, precise material removal on composites, plastics, laminates, fiberglass, and similar non-ferrous materials. Its gearless drive places the direct-drive motor in the angle head, reducing mechanical complexity while maintaining responsive speed at the cutter. The right-angle layout helps operators reach around fixtures, panels, and tight work areas where inline routers may be difficult to control.

The front exhaust configuration directs spent air forward, while the 1/4" shank capacity supports common router bits used in production trimming and template-guided routing. At only 1.5 lb with a 7.4" overall length, the 12L1300-36RT is a compact choice for repetitive routing operations where speed, access, and handling matter.

Type: Right Angle Router | Series: 12 Series | Drive: Gearless | Power: 0.3 HP (0.22 kW) | Free Speed: 30,000 RPM | Exhaust: Front | Shank Capacity: 1/4" | Weight: 1.5 lb (0.68 kg) | Overall Length: 7.4" (188 mm) | Air Inlet: 1/4"

Features:

• Gearless tool with direct drive motor in the angle head for high-speed routing performance.
• 30,000 RPM free speed supports fast trimming and clean edge work on suitable materials.
• Right angle configuration improves access around fixtures, panels, and confined routing areas.
• 0.3 HP pneumatic motor provides controlled power for precision material removal.
• Front exhaust model directs spent air forward during operation.
• 1/4-inch shank capacity accepts common router bits for trimming and routing applications.
• Compact 1.5 lb body helps reduce handling effort during repetitive production work.

Note: Router Template Guide is not included; it is sold separately.

Made in USA:

Applications:

• Composite fabrication — trimming carbon fiber, fiberglass, and composite panel edges.
• Aerospace production — controlled routing on aircraft components, access panels, and fixture-guided work.
• Plastics and laminate shops — shaping, trimming, and finishing non-ferrous sheet materials.
• Industrial manufacturing — repetitive routing tasks where a compact right-angle tool improves reach.
• Template-guided routing — following jigs and fixtures for repeatable edge profiles and cutouts.

FAQs:

• Q: What does gearless drive mean on this router?
  A: Gearless drive means the tool uses a direct-drive motor in the angle head rather than a geared reduction system. This supports high-speed routing at 30,000 RPM with fewer drive components.
• Q: What bit shank size does the 12L1300-36RT accept?
  A: This model is listed with a 1/4-inch shank diameter capacity. Use compatible router bits rated for the tool speed and material being cut.
• Q: Is this the same as the rear exhaust version?
  A: No. The 12L1300-36RT is the front exhaust version. Rear exhaust models are available separately for applications where exhaust direction is a key operator preference.
• Q: What materials is this router commonly used on?
  A: It is commonly used for routing and trimming composites, plastics, fiberglass, laminates, and similar non-ferrous materials. Always match the cutter type and speed rating to the material and application.
