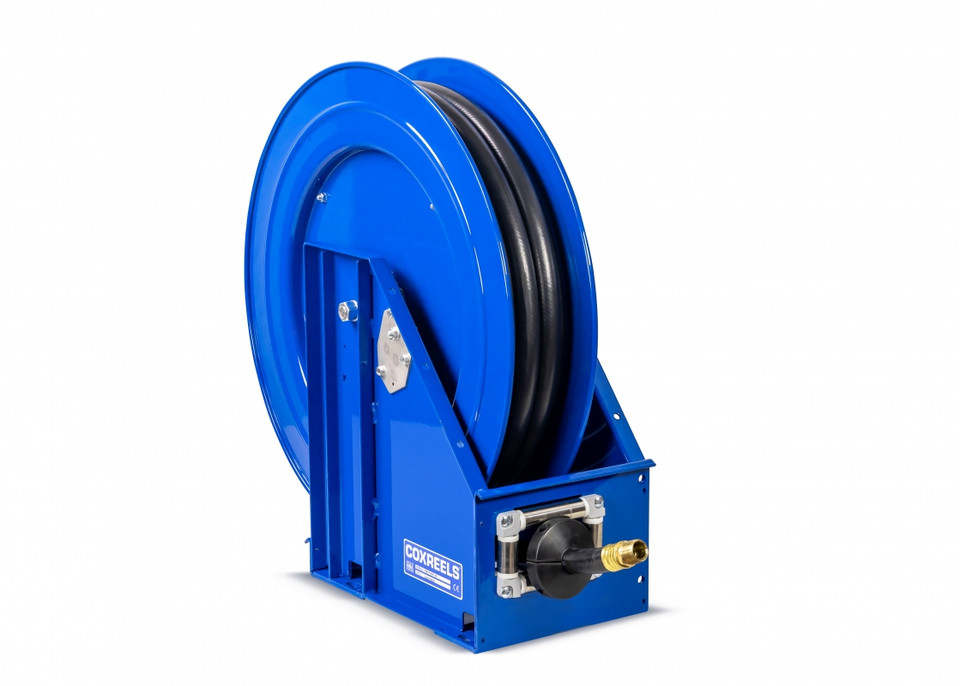

Coxreels XTM-MP-575 Extreme Duty Spring Rewind Hose Reel | XTM Series | 3/4" Hose Diameter | 75' Hose Length | 1500 Max PSI

Built for demanding medium-pressure hose handling where larger hose flow, extended reach, and rugged reel construction are all required, the Coxreels XTM-MP-575 is an extreme duty spring rewind hose reel from the XTM Series. This model is supplied with 3/4" I.D. hose, a 75 ft hose length, and a 1500 PSI maximum pressure rating, giving service trucks, equipment yards, maintenance bays, and field repair crews a heavy-duty reel for compatible air, water, or oil applications.

The XTM Series is designed for high-demand work environments that require a stronger reel platform than typical truck-duty hose reels. Its fully welded box frame, stainless steel rollers, cartridge-style spring motor, and heavy-duty reel components help support tough use in mobile service, mining, construction, off-road maintenance, railroad work, and industrial operations. With 75 ft of 3/4" medium-pressure hose, the XTM-MP-575 provides longer working range than the 50 ft configuration while supporting greater flow potential than smaller hose diameters when the supply system, fittings, and connected equipment are sized accordingly.

Type: Extreme Duty Spring Rewind Hose Reel | Series: XTM Series | Model: XTM-MP-575 | Hose I.D.: 3/4" | Hose Length: 75 ft | Max Pressure: 1500 PSI | Service: Air, Water, Oil | Hose Included: Yes | Rewind Type: Spring Rewind | Configuration: Extreme Duty Open Frame Hose Reel

Features:

• Extreme duty XTM Series construction is built for high-demand industries that need a hose reel above typical truck-duty requirements.
• 1500 PSI medium-pressure rating supports compatible air, water, or oil service when system pressure, hose rating, fittings, seals, and temperature requirements match the reel.
• 3/4" I.D. hose supports greater flow than smaller 1/2" and 3/8" configurations when the supply line, fittings, and connected equipment are sized accordingly.
• 75 ft hose length provides extended reach for service trucks, larger repair bays, equipment yards, maintenance zones, and field service work.
• Fully welded box frame construction with welded seams and reinforced mounting structure supports demanding mobile and fixed installations.
• Stainless steel rollers help guide hose during payout and rewind in harsh shop, vehicle, and outdoor service environments.
• Enclosed factory-tuned cartridge-style spring motor powers automatic hose return after use.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during operation.
• External fluid path with full-flow swivel design supports hose connection, fluid flow, and service access.
• Solid steel axle, lubricated precision bearings, ribbed discs with rolled edges, CPC powder coat finish, and adjustable solid rubber hose stop support rugged daily use.

Made in USA:

2 Year Warranty

Applications:

• Service trucks, mechanic trucks, utility vehicles, and lube skids where 75 ft of 3/4" medium-pressure hose helps crews work farther from the vehicle.
• Mining, off-road, and heavy equipment maintenance where hose reels may be exposed to demanding jobsite and field service conditions.
• Construction and railroad maintenance operations where spring rewind hose storage helps keep service hose organized between tasks.
• Industrial maintenance yards, large repair bays, and equipment service areas where higher-flow medium-pressure hose access must cover more working distance.
• Manufacturing and general industrial facilities that need rugged spring rewind hose management for point-of-use air, water, or oil service.

FAQs:

• Q: Does the Coxreels XTM-MP-575 include hose?
  A: Yes. The XTM-MP-575 is supplied with 3/4" I.D. x 75 ft medium-pressure hose.
• Q: What does “extreme duty” mean for the XTM Series?
  A: In Coxreels terminology, the XTM Series is built for high-demand environments and uses heavier construction features such as a fully welded box frame, stainless steel rollers, and a cartridge-style spring motor.
• Q: How is the XTM-MP-575 different from the XTM-MP-550?
  A: Both models use 3/4" I.D. hose and have a 1500 PSI maximum pressure rating. The XTM-MP-575 provides 75 ft of hose for longer reach, while the XTM-MP-550 uses a shorter 50 ft hose length.
• Q: How is the XTM-MP-575 different from 1/2" XTM-MP models?
  A: The XTM-MP-575 uses a larger 3/4" I.D. hose for greater flow potential when the pump, supply line, fittings, and connected equipment are sized correctly. The 1/2" XTM-MP models use a smaller hose size and are typically rated to a higher maximum pressure.
• Q: What service media is this reel intended for?
  A: This MP configuration is suited to compatible air, water, or oil service. Always confirm pressure, temperature, hose construction, fittings, seals, and fluid compatibility before installation.
• Q: When should I choose a 75 ft hose length?
  A: Choose the 75 ft version when the reel must reach around vehicles, across larger bays, or farther from a service truck. A 50 ft reel may be better when the mounting point is close to the work and less hose on the ground is preferred.
