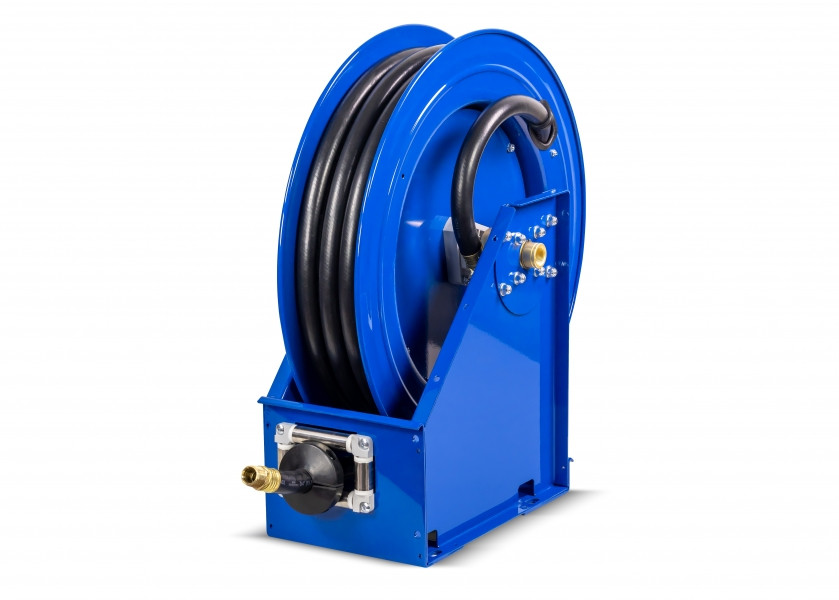

Coxreels XTM-MP-450 Extreme Duty Spring Rewind Hose Reel | XTM Series | 1/2" Hose Diameter | 50' Hose Length | 2500 Max PSI

Built for demanding medium-pressure hose handling where larger hose flow and rugged reel construction are required, the Coxreels XTM-MP-450 is an extreme duty spring rewind hose reel from the XTM Series. This model is supplied with 1/2" I.D. hose, a 50 ft hose length, and a 2500 PSI maximum pressure rating, giving service trucks, equipment bays, maintenance yards, and field repair crews a heavy-duty reel for compatible air, water, or oil applications.

The XTM Series is built for high-demand work environments that require a stronger reel platform than typical truck-duty hose reels. Its fully welded box frame, stainless steel rollers, cartridge-style spring motor, and heavy-duty reel components help support tough use in mobile service, mining, construction, off-road maintenance, railroad work, and industrial operations. With a 1/2" medium-pressure hose and 50 ft reach, the XTM-MP-450 is well suited for applications where higher flow capacity is needed without moving to a longer hose length.

Type: Extreme Duty Spring Rewind Hose Reel | Series: XTM Series | Model: XTM-MP-450 | Hose I.D.: 1/2" | Hose Length: 50 ft | Max Pressure: 2500 PSI | Service: Air, Water, Oil | Hose Included: Yes | Hose Type: Standard One-Wire Braid | Hose Specification: Exceeds SAE R1 | Max Temperature: 250°F | Rewind Type: Spring Rewind | Configuration: Extreme Duty Open Frame Hose Reel

Features:

• Extreme duty XTM Series construction is built for high-demand industries that need a hose reel above typical truck-duty requirements.
• 2500 PSI medium-pressure rating supports compatible air, water, or oil service when system pressure, hose rating, fittings, seals, and temperature requirements match the reel.
• 1/2" I.D. hose supports greater flow than smaller 3/8" configurations when the supply line, fittings, and connected equipment are sized accordingly.
• 50 ft hose length provides practical reach for service trucks, repair bays, maintenance zones, and nearby equipment work without carrying excess hose length.
• Standard one-wire braid hose exceeds SAE R1 specifications for medium-pressure applications.
• Fully welded box frame construction with welded seams and reinforced mounting structure supports demanding mobile and fixed installations.
• Stainless steel rollers help guide hose during payout and rewind in harsh shop, vehicle, and outdoor service environments.
• Enclosed factory-tuned cartridge-style spring motor powers automatic hose return after use.
• Multi-position lock ratchet mechanism secures the hose at the desired working length during operation.
• External fluid path with full-flow swivel design supports hose connection, fluid flow, and service access.

Made in USA:

2 Year Warranty

Applications:

• Service trucks, mechanic trucks, utility vehicles, and lube skids where a 1/2" medium-pressure hose reel is needed in a rugged mounting environment.
• Mining, off-road, and heavy equipment maintenance where hose reels may be exposed to demanding jobsite and field service conditions.
• Construction and railroad maintenance operations where spring rewind hose storage helps keep service hose organized between tasks.
• Industrial maintenance yards, repair bays, and equipment service areas where 50 ft of medium-pressure hose reach is enough to cover the work zone.
• Manufacturing and general industrial facilities that need rugged spring rewind hose management for point-of-use air, water, or oil service.

FAQs:

• Q: Does the Coxreels XTM-MP-450 include hose?
  A: Yes. The XTM-MP-450 is supplied with 1/2" I.D. x 50 ft medium-pressure hose.
• Q: What does extreme duty mean for the XTM Series?
  A: In Coxreels terminology, the XTM Series is built for high-demand environments and uses heavier construction features such as a fully welded box frame, stainless steel rollers, and a cartridge-style spring motor.
• Q: How is the XTM-MP-450 different from the XTM-MP-350?
  A: Both models provide 50 ft of hose reach, but the XTM-MP-450 uses 1/2" I.D. hose and is rated to 2500 PSI. The XTM-MP-350 uses 3/8" I.D. hose and is rated to 3000 PSI.
• Q: Why choose a 1/2" medium-pressure reel instead of a 3/8" model?
  A: A 1/2" hose can support greater flow than a 3/8" hose when the supply line, fittings, and connected equipment are sized properly. Choose based on the required flow, pressure rating, hose handling, and service media.
• Q: What service media is this reel intended for?
  A: This MP configuration is suited to compatible air, water, or oil service. Always confirm pressure, temperature, hose construction, fittings, seals, and fluid compatibility before installation.
• Q: When is a 50 ft hose length the right choice?
  A: A 50 ft reel works well when the mounting point is close enough to the work area and the user wants useful reach without carrying extra hose. For larger yards or longer pulls from a service vehicle, confirm whether a 75 ft or 100 ft configuration is available.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
