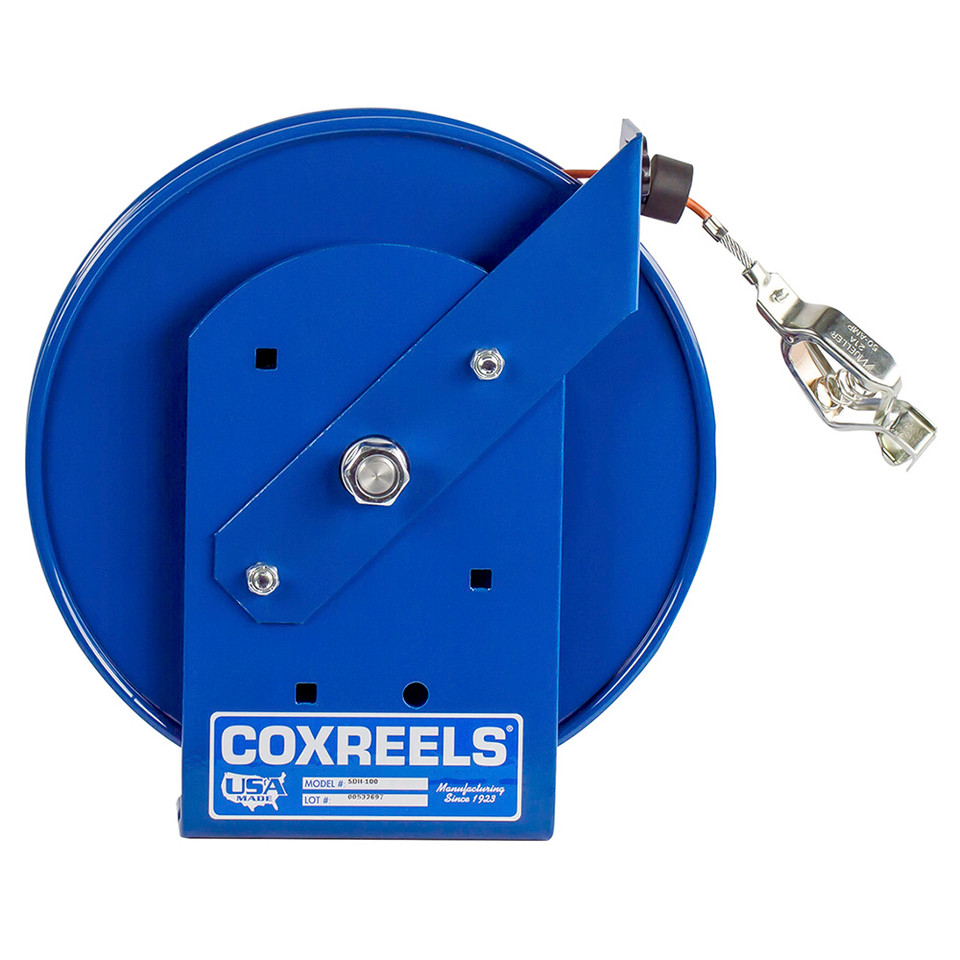

Coxreels SDH-200-1 Static Discharge Hand Crank Cable Reel | SDH Series | 200' Cable Length

Used where static buildup must be safely routed to ground, the Coxreels SDH-200-1 Static Discharge Hand Crank Cable Reel provides a compact grounding reel for combustible work environments, fuel dispensing areas, service trucks, and ground-support operations. This SDH Series model includes 200 ft of cable, giving operators extended reach around vehicles, tanks, aircraft support equipment, and fueling stations while keeping grounding cable stored neatly when not in use. Static discharge reels help control electrostatic charge buildup, which can create an ignition risk when flammable vapors or combustible materials are present.

The SDH-200-1 uses direct hand crank retraction, allowing the user to manually wind cable back onto the reel without relying on a spring motor. The reel includes cable, ball stop, and a 50 Amp grounding clamp, while the high-visibility orange vinyl cable cover helps make the grounding lead easier to see in busy work areas. Its heavy-gauge steel base, solid steel axle, lubricated bearings, and adjustable guide arm support floor, wall, vehicle, or overhead mounting layouts where permanent grounding cable storage is needed.

Type: Static Discharge Hand Crank Cable Reel | Series: SDH Series | Model: SDH-200-1 | Cable Length: 200 ft | Cable Type: Stainless Steel Cable | Cable Construction: 7 Strand x 7 Wire | Cable Diameter: 3/32" | Cable Cover O.D.: 5/32" | Retraction: Direct Hand Crank | Included: Cable, Ball Stop, 50 Amp Grounding Clamp

Features:

• Direct hand crank retraction gives the user controlled manual rewind without a spring motor.
• Static discharge cable reel is built for grounding use in combustible environments where static buildup can create an ignition hazard.
• Includes cable, ball stop, and 50 Amp grounding clamp for common static discharge grounding setups.
• Stainless steel 7 strand x 7 wire cable provides a flexible grounding lead for repeated payout and rewind.
• High-visibility orange vinyl cable cover improves cable visibility around fuel equipment, trucks, ramps, and shop areas.
• Multi-position aluminum guide arm adjusts for wall, floor, ceiling, vehicle, and overhead mounting positions.
• Solid one-piece, heavy-gauge 1/4" steel base supports stable installation and helps maintain proper reel grounding.
• Rolled edges, ribbed discs, 1" solid steel axle, and lubricated precision bearings support smooth rotation and durable cable storage.

Made in USA:

2 Year Warranty

Applications:

• Fuel and service trucks used for grounding during fuel transfer, equipment refueling, and mobile dispensing operations.
• Fuel storage and dispensing systems where a grounding cable must stay organized, visible, and ready to deploy.
• Ground support equipment areas where vehicles, carts, and aircraft support systems require static discharge grounding procedures.
• Combustible industrial environments where static electricity control is part of safe material handling or fluid transfer practices.
• Maintenance shops, terminals, and fleet yards that need a fixed reel location for long-reach grounding cable storage.

FAQs:

• Q: What is a static discharge cable reel used for?
  A: A static discharge reel stores and deploys grounding cable used to help control electrostatic buildup. It is commonly paired with fuel reels and other equipment used where flammable vapors or combustible materials may be present.
• Q: Does the SDH-200-1 include the cable?
  A: Yes. The SDH-200-1 includes 200 ft of stainless steel cable, a ball stop, and a 50 Amp grounding clamp.
• Q: What does the -1 mean on this Coxreels model?
  A: In the SDH Series model table, the -1 version identifies the stainless steel cable configuration. Non -1 SDH models use galvanized steel cable.
• Q: Is this a spring rewind reel?
  A: No. The SDH-200-1 is a hand crank reel, so the user manually rewinds the cable using the crank handle. Coxreels also offers spring rewind static discharge reels in the SD Series for applications where automatic retraction is preferred.
• Q: Can this reel be mounted on a truck or wall?
  A: Yes. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions. Confirm the reel location provides a proper grounding path and meets the site's grounding procedures before installation.
