When grounding is required around fuel handling, service trucks, petroleum transfer, or other combustible work areas, the Coxreels EZ-SDL-50 EZ-SD Series Spring Rewind Static Discharge Cable Reel provides a compact retractable reel body for managing static discharge cable. This less cable model is built for buyers who need the EZ-Coil reel mechanism but plan to install a separately sourced compatible cable, clamp, and stop to match their grounding requirements.
The EZ-SD Series is used where static buildup could create an ignition hazard, helping keep grounding cable organized, retractable, and positioned where it is needed. The 50 ft cable capacity, 5/32" O.D. cable size, and compact 3-7/8" W x 11-1/2" H x 11" L size make this reel suitable for wall, floor, vehicle, or overhead mounting when space is limited and a controlled static discharge cable layout is required.

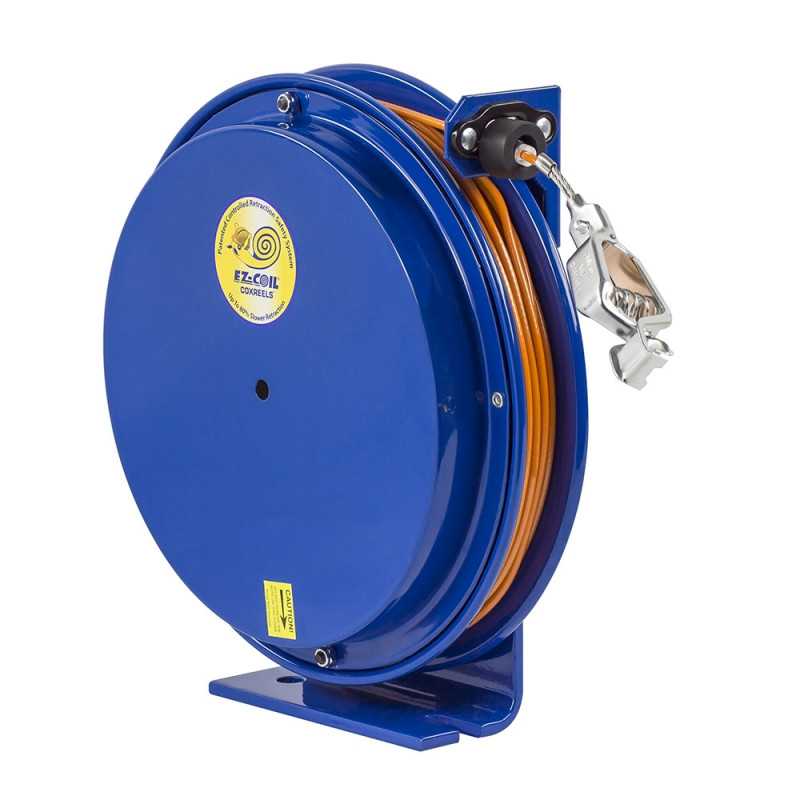

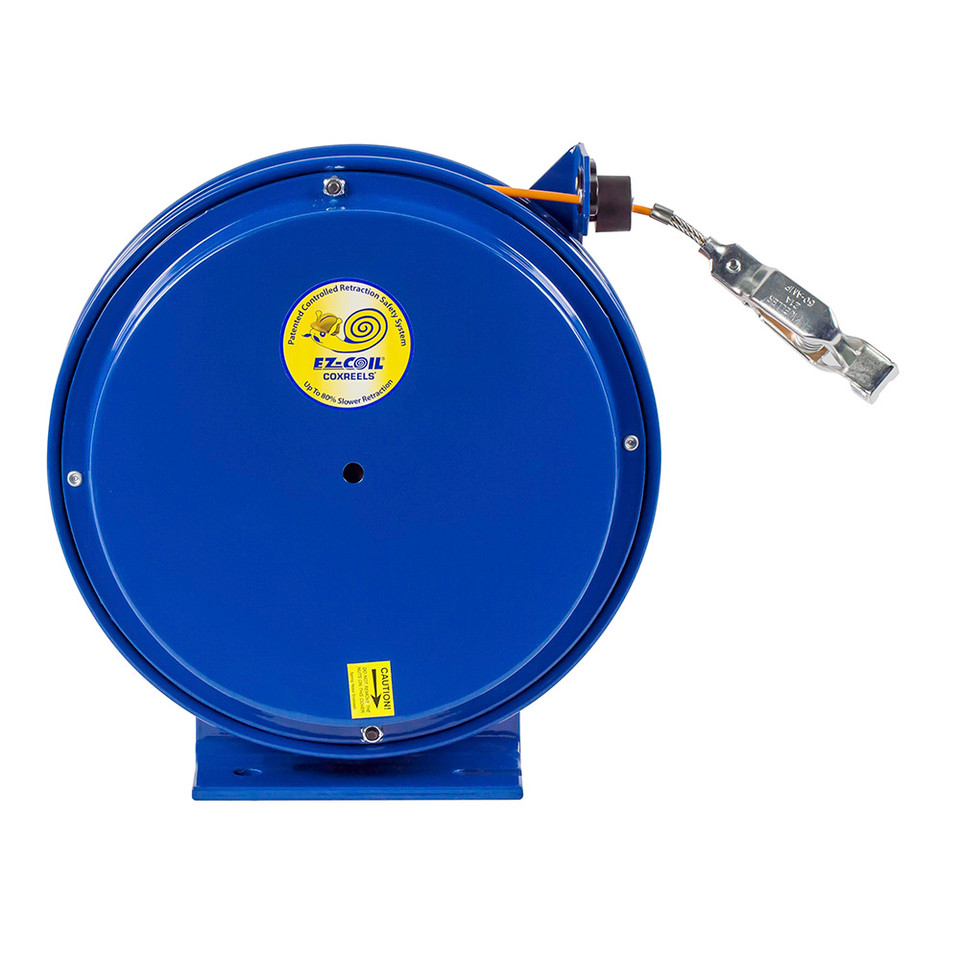

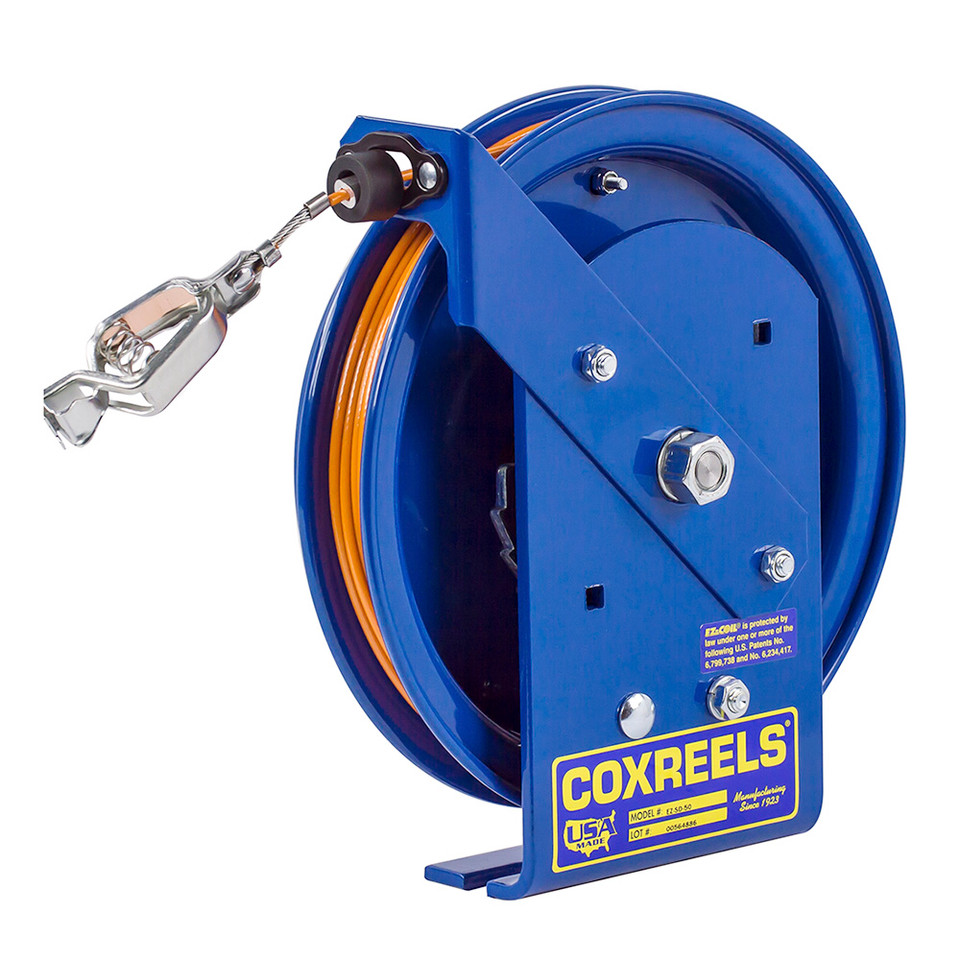

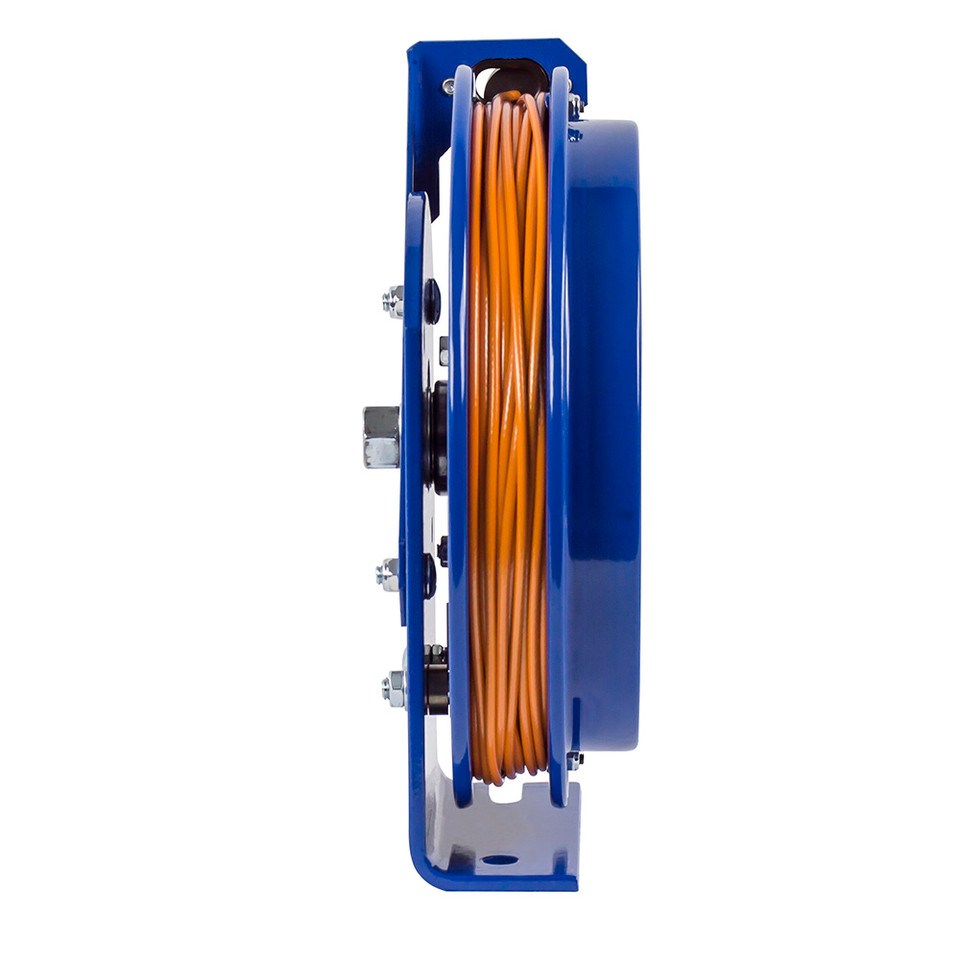

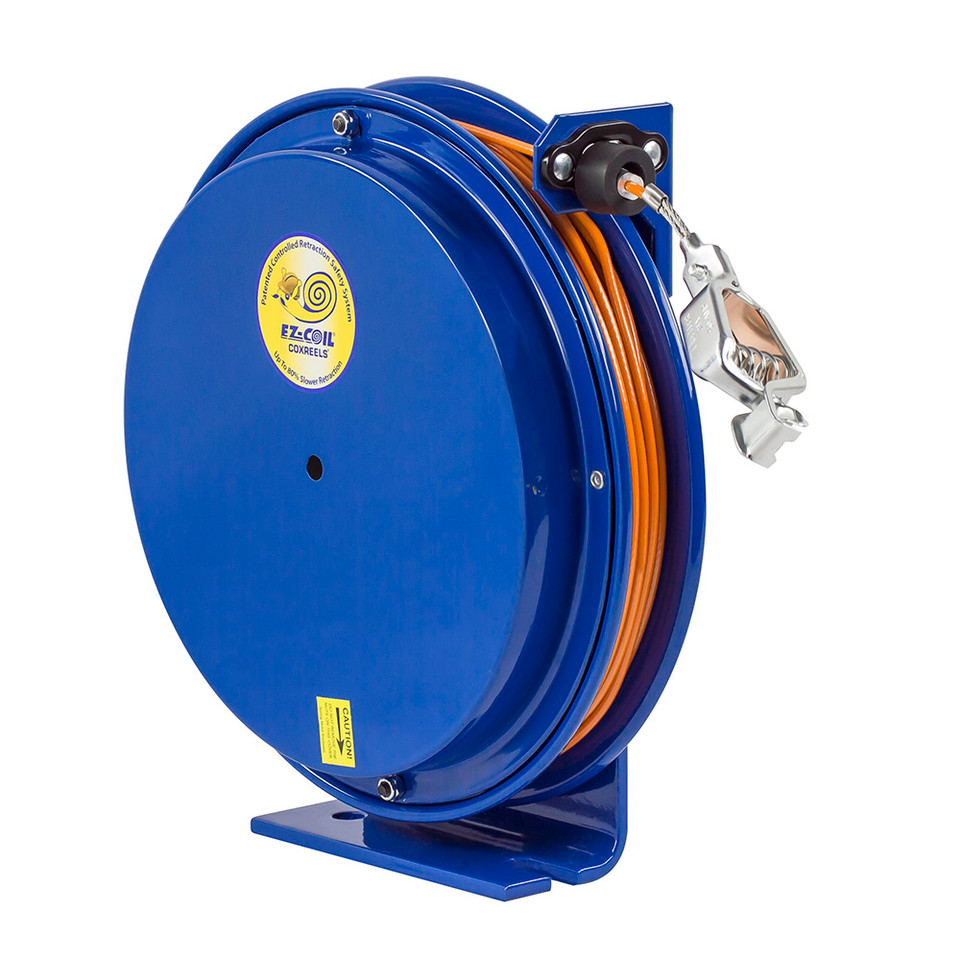

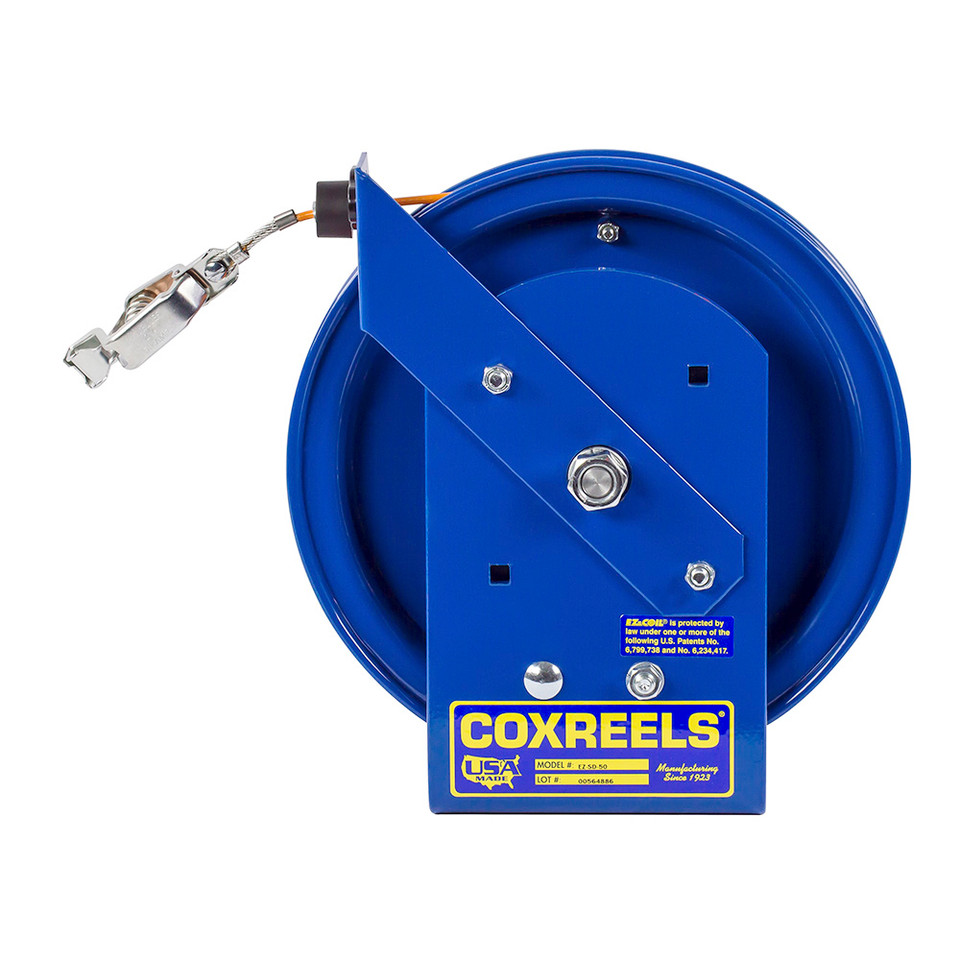

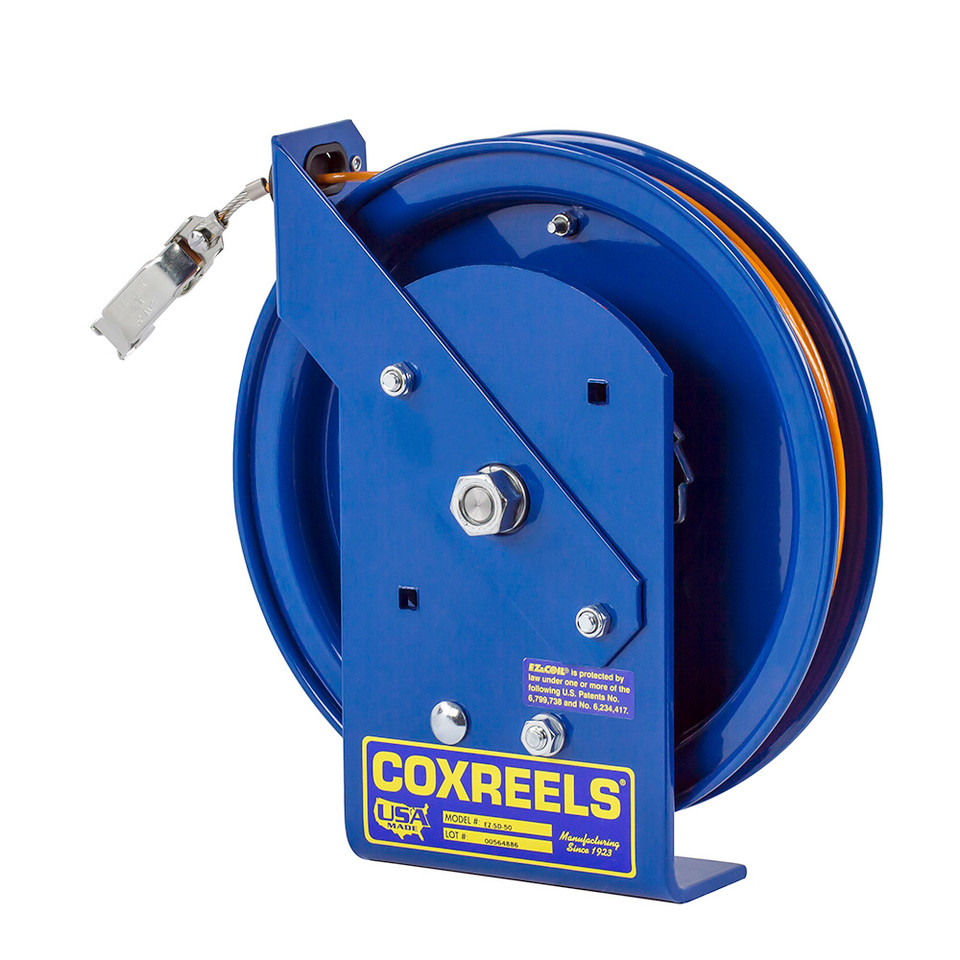

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any static discharge cable, ball stop, or grounding clamp. Please note this before ordering.
Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Configuration: Less Cable | Cable Capacity: 50 ft | Cable O.D.: 5/32" | Approx. Weight: 18 lbs | Size Index: 1 | Width: 3-7/8" | Height: 11-1/2" | Length: 11" | Base: 2-1/2" x 6" | Mounting Pattern: 4"
Features:
- EZ-Coil retraction safety system retracts up to 80% slower than conventional spring driven reels, helping reduce snap-back during cable return.
- Compact static discharge reel body supports spring rewind cable management for grounding applications in combustible environments.
- Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting positions to match the installation layout.
- Solid one-piece, heavy gauge 1/4" steel base provides a stable mounting platform for reel installation.
- 1" solid steel axle and lubricated precision bearings support smooth reel rotation during cable payout and rewind.
- Bottom of base is un-powder coated to ground the reel as part of the static discharge system.
- Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
- Non-corrosive stainless steel spring, pawl, zinc plated ratchet, and multi-position non-sparking lock ratchet mechanism secure cable at the desired working length.
Made in USA:
Applications:
- Fuel handling and transfer areas where grounding cable management is needed near fuel hose reels.
- Service trucks and fleet maintenance vehicles that require compact, retractable static discharge cable storage.
- Petroleum, oil, and gas service locations where static buildup must be controlled during fluid handling.
- Industrial maintenance areas where grounding reels help keep cable off the floor and ready for use.
- Vehicle-mounted reel stations where wall, floor, overhead, or truck mounting flexibility is important.
FAQs:
- Q: What does less cable mean on the EZ-SDL-50?
A: It means this model is supplied as the reel only and does not include the static discharge cable, ball stop, or grounding clamp. Compatible cable and grounding hardware must be selected separately. - Q: Is this the same as the EZ-SD-50?
A: No. The EZ-SD-50 is supplied with 50 ft of cable, while the EZ-SDL-50 is the less-cable version for customers who need the reel body without installed cable. - Q: Where are static discharge cable reels commonly used?
A: Static discharge reels are commonly paired with fuel reels and used in combustible environments for grounding purposes. They help manage the cable so it can be pulled out for use and retracted when finished. - Q: Can this reel be mounted on a service truck?
A: Yes, the guide arm adjusts for vehicle mounting as well as wall, floor, and overhead positions. The mounting location should provide a secure base and maintain the required grounding path. - Q: Does this reel include a grounding clamp?
A: No. Because the EZ-SDL-50 is a less-cable model, the grounding clamp is not included. Coxreels offers grounding clamp options on cable-equipped models and as accessories, but the correct clamp should be confirmed before ordering.
