Coxreels EZ-SDL-100 Spring Rewind Static Discharge Cable Reel | EZ-SD Series | 100' Cable Length | 5/32" Gauge | Less Hose

For grounding cable management around fuel handling, petroleum transfer, service trucks, and combustible work areas, the Coxreels EZ-SDL-100 EZ-SD Series Spring Rewind Static Discharge Cable Reel provides the EZ-Coil controlled retraction platform in a less cable configuration. This model is built for applications that require a retractable static discharge reel body but need separately selected cable, clamp, and stop hardware to match site-specific grounding procedures.

The 100 ft cable capacity gives installers additional reach compared with shorter EZ-SD models, while the 5/32" cable O.D. capacity supports the common covered static discharge cable size used in the series. Its spring rewind design keeps cable controlled between uses, and the EZ-Coil system retracts substantially slower than standard spring rewind reels to help reduce snap-back risk during return.

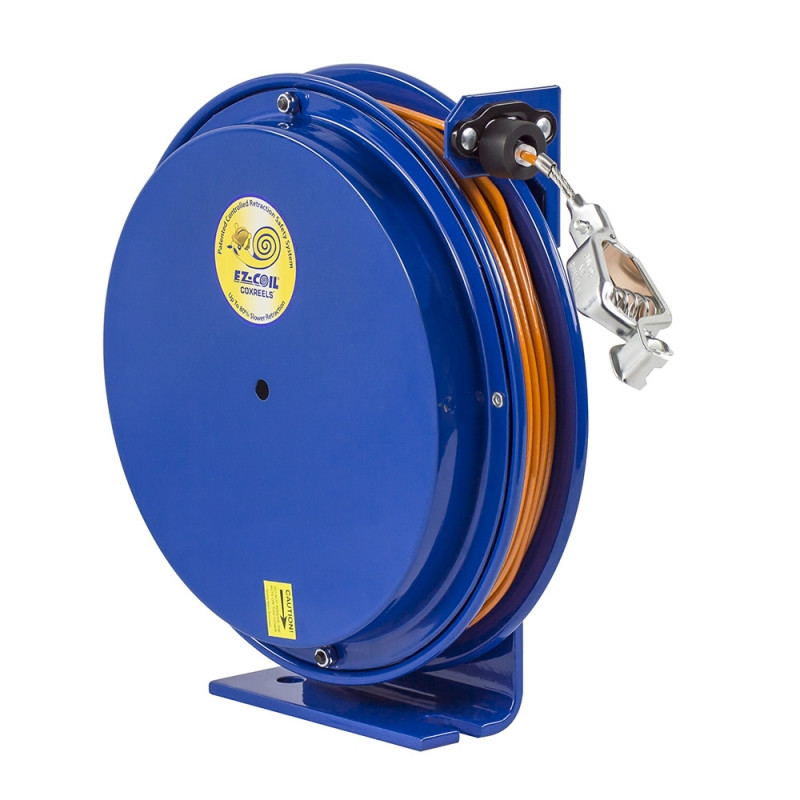

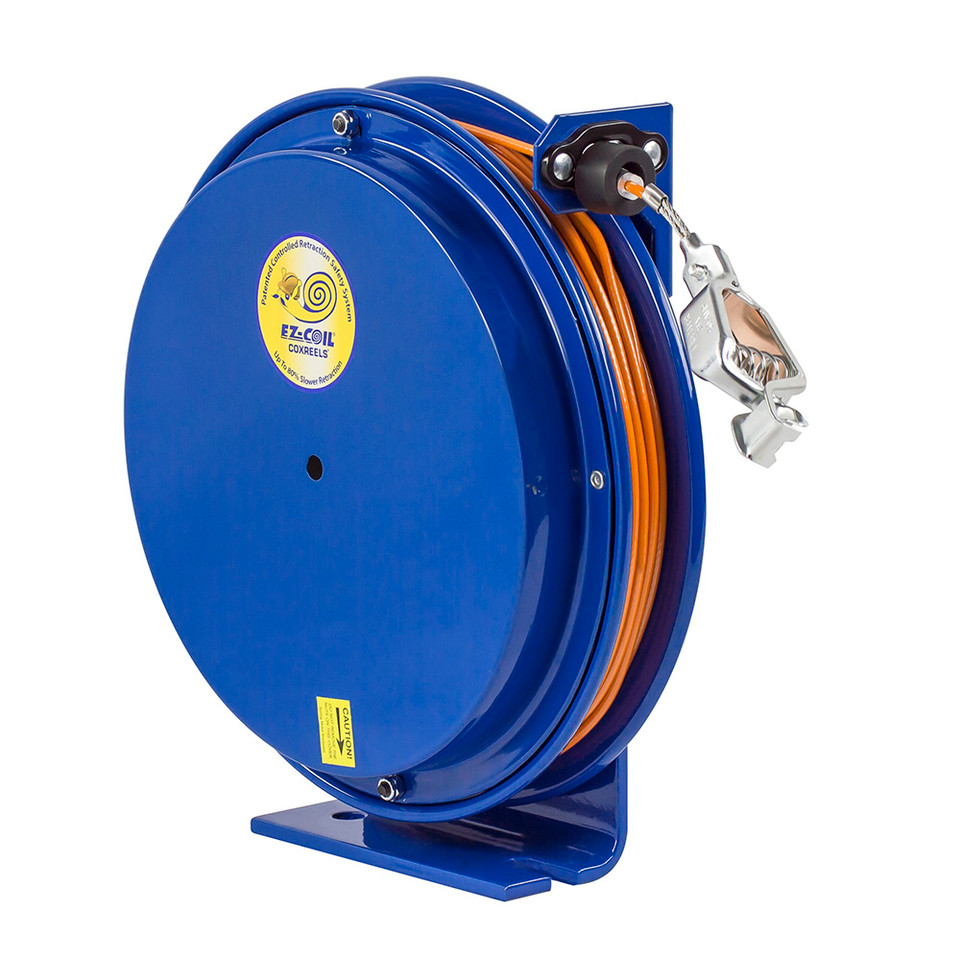

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any static discharge cable, ball stop, or grounding clamp. Please note this before ordering.

Type: Spring Rewind Static Discharge Cable Reel | Series: EZ-SD Series | Model: EZ-SDL-100 | Configuration: Less Cable | Cable Capacity: 100 ft | Cable O.D.: 5/32" | Approx. Weight: 28 lbs | Size Index: 2 | Overall Width: 4" | Overall Height: 15" | Overall Length: 14-1/2" | Base: 2-1/2" x 6" | Mounting Pattern: 4"

Features:

• EZ-Coil controlled retraction system retracts up to 80% slower than conventional spring driven reels, helping reduce cable snap-back during rewind.
• Compact static discharge reel body is used for grounding cable management in combustible environments when properly configured with compatible cable and grounding hardware.
• Multi-position guide arm adjusts for wall, floor, vehicle, and overhead mounting, giving installers flexibility in fixed or mobile reel layouts.
• Solid one-piece, heavy gauge 1/4" steel base provides a stable foundation for mounting the reel.
• 1" solid steel axle and lubricated precision bearings support smooth rotation during cable payout and rewind.
• Bottom of base is un-powder coated to ground the reel as part of the installed static discharge system.
• Enclosed factory tuned and matched cartridge-style spring motor supports controlled spring rewind operation.
• Non-corrosive stainless steel spring, pawl, zinc plated ratchet, and multi-position non-sparking lock ratchet mechanism secure cable at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Fuel transfer stations where longer grounding cable reach is needed near pumps, fuel reels, or dispensing points.
• Petroleum, oil, and gas service areas where retractable static discharge cable helps keep grounding connections organized.
• Service trucks and fleet maintenance vehicles that need a compact reel body for custom grounding cable installations.
• Industrial MRO areas where cable must be stored off the floor and available for controlled grounding procedures.
• Vehicle-mounted and fixed reel stations requiring wall, floor, overhead, or truck mounting flexibility.

FAQs:

• Q: What does less cable mean for the EZ-SDL-100?
  A: It means the reel is supplied without static discharge cable installed. The buyer must select compatible grounding cable, a cable stop, and grounding clamp separately.
• Q: Is the EZ-SDL-100 a hose reel?
  A: No. This is a static discharge cable reel used for grounding applications. It is not a fluid hose reel and does not have a PSI rating for air, water, fuel, or oil service.
• Q: How is the EZ-SDL-100 different from the EZ-SD-100?
  A: The EZ-SD-100 is supplied with 100 ft of static discharge cable, while the EZ-SDL-100 is the less-cable version. Choose the EZ-SDL-100 when the cable and clamp need to be selected separately for the installation.
• Q: Can this reel be mounted on a truck or trailer?
  A: Yes, the guide arm can be adjusted for vehicle mounting as well as wall, floor, and overhead mounting. The installer should confirm the mounting surface, grounding path, and cable routing before use.
• Q: Does this reel include a grounding clamp?
  A: No. Because this is the less-cable version, a grounding clamp is not included. Select the clamp and cable assembly based on the grounding procedure and jobsite requirements.
