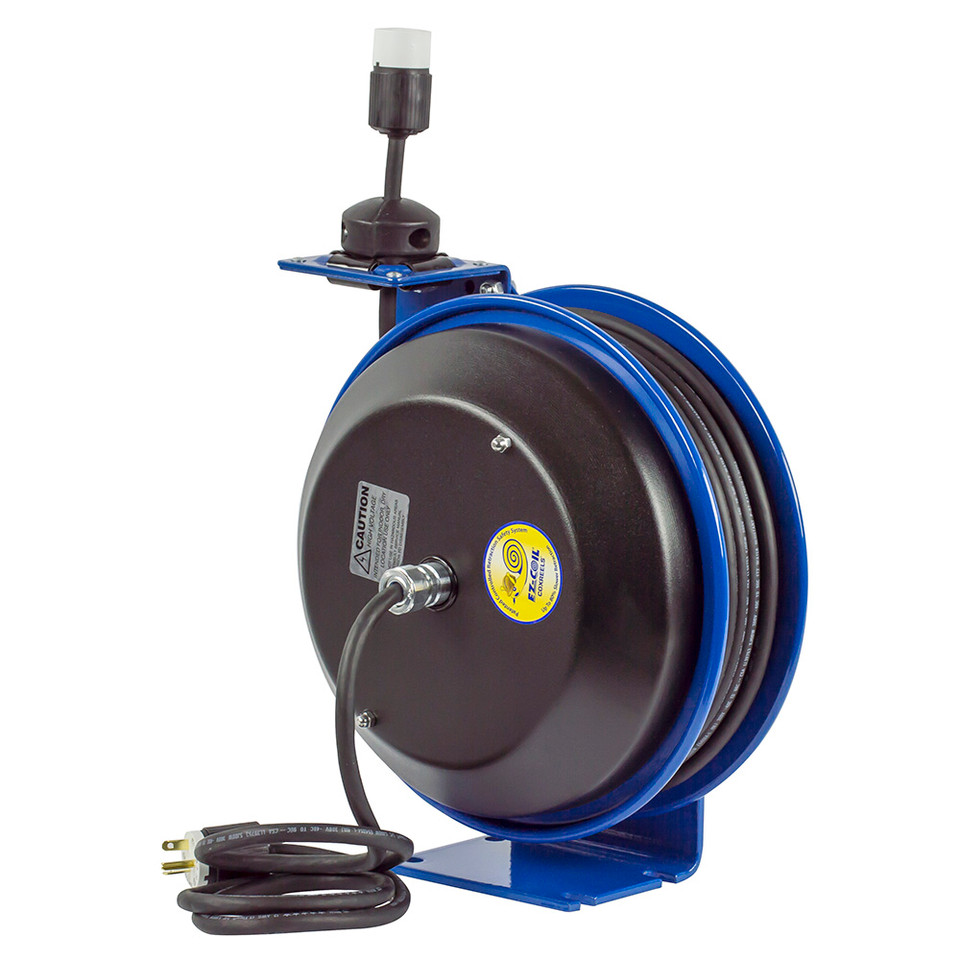

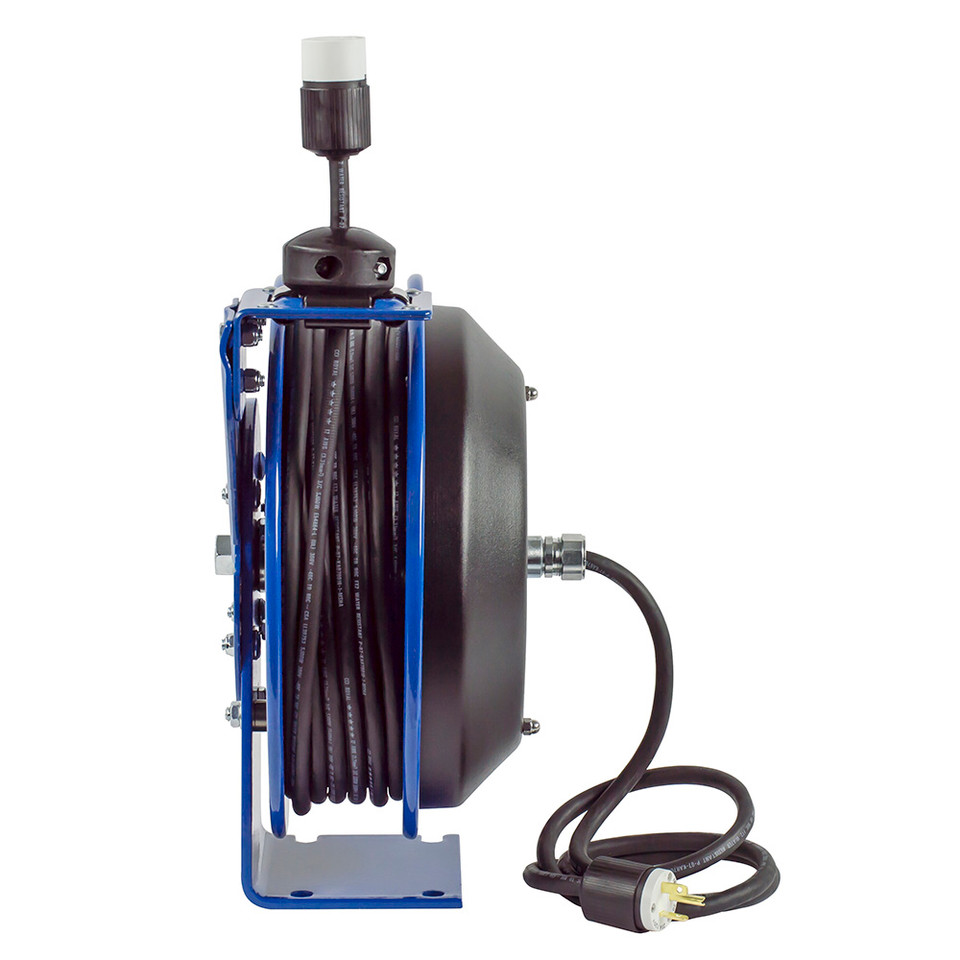

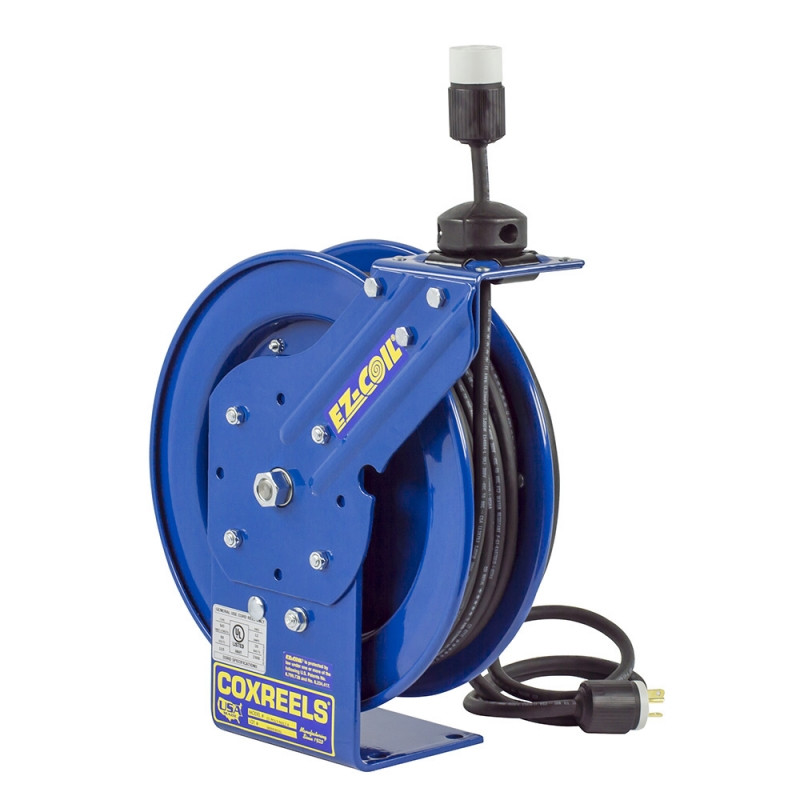

When you need a retractable light source that reaches across bays, benches, and work areas without leaving loose cord on the floor, the Coxreels EZ-PC24-0016-H EZ-PC Series spring rewind power light reel provides a controlled cord management solution with a built-in Industrial Duty LED Light. This model is supplied with 100 ft of 16/3 SJTO cord, giving maintenance crews, service technicians, and shop personnel extended reach from a fixed mounting point while keeping the cord stored on the reel when not in use.
The EZ-PC24-0016-H operates on 115 volts, 60 Hz single phase and is rated for indoor use only. Its EZ-Coil controlled retraction system slows rewind speed compared with standard spring rewind reels, helping reduce snap-back while the enclosed cartridge-style spring motor and multi-position lock ratchet allow the cord to be pulled out and held at the desired working length.
Type: Spring Rewind Power Light Reel | Series: EZ-PC Series | Model: EZ-PC24-0016-H | Accessory: Industrial Duty LED Light | Cord Length: 100 ft | Cord Size: 16/3 AWG | Cord Type: SJTO | Voltage: 115V | Amps: 0.17 | Approx. Weight: 70 lbs | Size Index: 3 | Use: Indoor Use Only
Features:
- EZ-Coil controlled retraction slows rewind speed by up to 80% compared with conventional spring rewind models, helping manage cord return in busy work areas.
- Industrial Duty LED Light provides a retractable task-lighting solution for maintenance, inspection, service, and shop work.
- External heavy gauge CPC powder coated steel components cover allows simpler routine access to the slip ring area.
- Single pedestal reel design helps conserve mounting space while keeping power cord organized and off the floor.
- Guide arm adjusts for wall, floor, or overhead mounting positions to match the layout of the work cell, bay, or service area.
- Solid one-piece, heavy gauge 1/4" steel base and support post provide stable reel mounting.
- Coxreels Super Hub dual axle support system is used on size index #3 and #4 models for added drum support.
- Multi-position lock ratchet mechanism secures the cord at the desired length during use.
Made in USA:
Applications:
- Maintenance shops and MRO departments needing retractable LED task lighting for inspections, repairs, and equipment service.
- Automotive and fleet service centers where overhead or wall-mounted cord storage helps keep work bays clear.
- Manufacturing plants using fixed workstations that need a 100 ft retractable cord and light source for localized visibility.
- Construction, repair, and workshop environments where indoor task lighting must be stored neatly between uses.
- General industrial facilities looking to replace loose extension cords with a spring rewind reel and controlled cord return.
FAQs:
- Q: What accessory is included with the EZ-PC24-0016-H?
A: This model is listed with an Industrial Duty LED Light. It is best treated as a retractable power light reel rather than a general-purpose outlet reel. - Q: Can this reel be used outdoors?
A: No. The manufacturer catalog states that these models are for indoor use only. - Q: What does 16/3 SJTO cord mean?
A: 16/3 means the cord uses 16 AWG wire with three conductors. SJTO is a junior service thermoplastic cord type commonly used for portable electrical equipment. - Q: What is EZ-Coil controlled retraction?
A: EZ-Coil is Coxreels controlled rewind system. It slows cord return compared with a standard spring rewind reel, helping reduce rapid snap-back during retraction. - Q: What mounting options does this reel support?
A: The guide arm adjusts for wall, floor, and overhead mounting positions. Final installation should follow the manufacturer's mounting instructions and use appropriate hardware for the structure.
| CORD | SIZE INDEX |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SKU | ACCESSORY | INLET OUTLET |
AWG / NO COND. |
CORD FT. |
TYPE | VOLTS | AMPS | APRX. LBS. |
EZ-COIL SKU | |
|
FOR INDOOR USE ONLY!All models rated at 115 volts, 60 hz single phase only.
|
||||||||||
| PC13-3516-E† | Caged Drop Light with Tool Tap Plug |
16 / 3 | 35 | SJTO | 115 | 13 | 34 | - | 1 | |
| PC13-5016-E† | Caged Drop Light with Tool Tap Plug |
16 / 3 | 50 | SJTO | 115 | 13 | 36 | EZ-PC13-5016-E | 1 | |
| PC19-7516-E† | Caged Drop Light with Tool Tap Plug |
16 / 3 | 75 | SJTO | 115 | 13 | 60 | - | 2 | |
| PC24-0016-E† | Caged Drop Light with Tool Tap Plug |
16 / 3 | 100 | SJTO | 115 | 13 | 73 | EZ-PC24-0016-E | 3 | |
| PC13-3516-H† | Industrial Duty LED Light† |
16 / 3 | 35 | SJTO | 115 | .17 | 35 | - | 1 | |
| PC13-5016-H† | Industrial Duty LED Light† |
16 / 3 | 50 | SJTO | 115 | .17 | 37 | EZ-PC13-5016-H | 1 | |
| PC24-0016-H | Industrial Duty LED Light† |
16 / 3 | 100 | SJTO | 115 | .17 | 70 | EZ-PC24-0016-H | 3 | |
| PC13-3516-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 35 | SJTO | 115 | .17 | 35 | - | 1 | |
| PC13-5016-K | Super-Bright LED Light with Tool Tap on Handle |
16 / 3 | 50 | SJTO | 115 | .17 | 37 | EZ-PC13-5016-K | 1 | |
| PC13-3516-M | Compact Super- Bright LED Light |
16 / 3 | 35 | SJTO | 115 | .17 | 35 | - | 1 | |
| PC13-5016-M | Compact Super- Bright LED Light |
16 / 3 | 50 | SJTO | 115 | .17 | 37 | EZ-PC13-5016-M | 1 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
