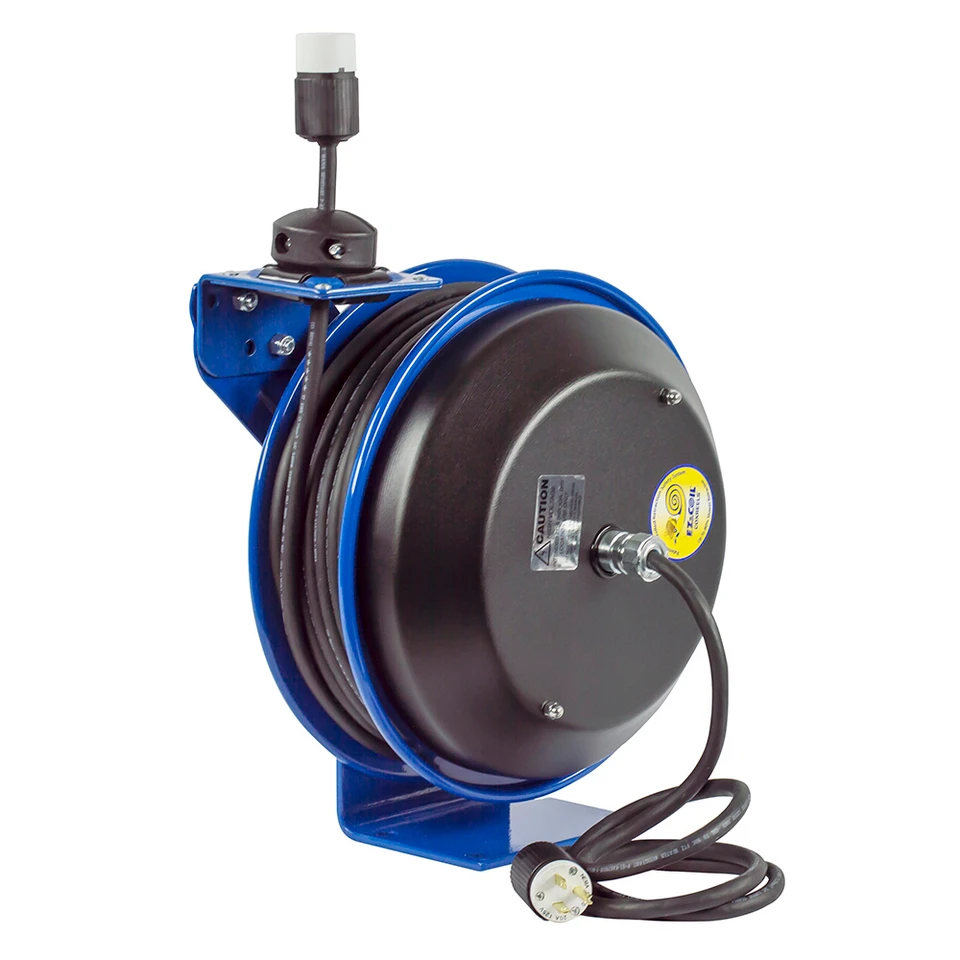

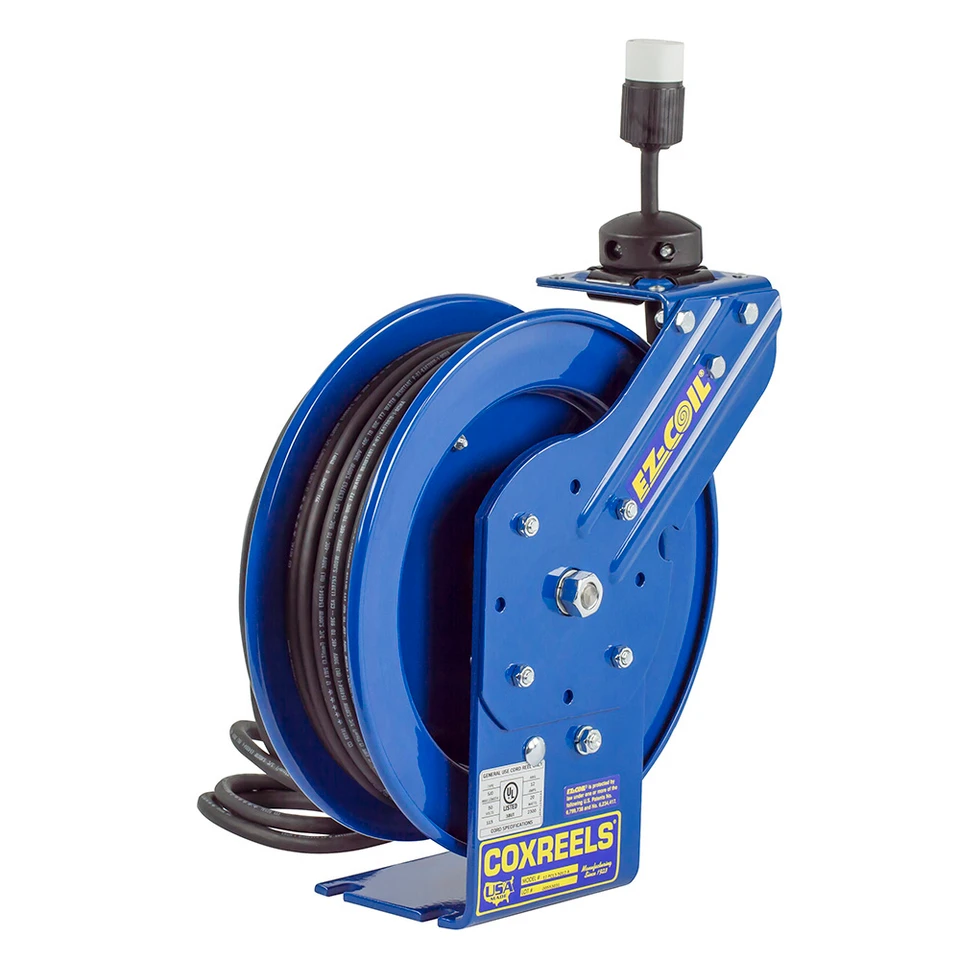

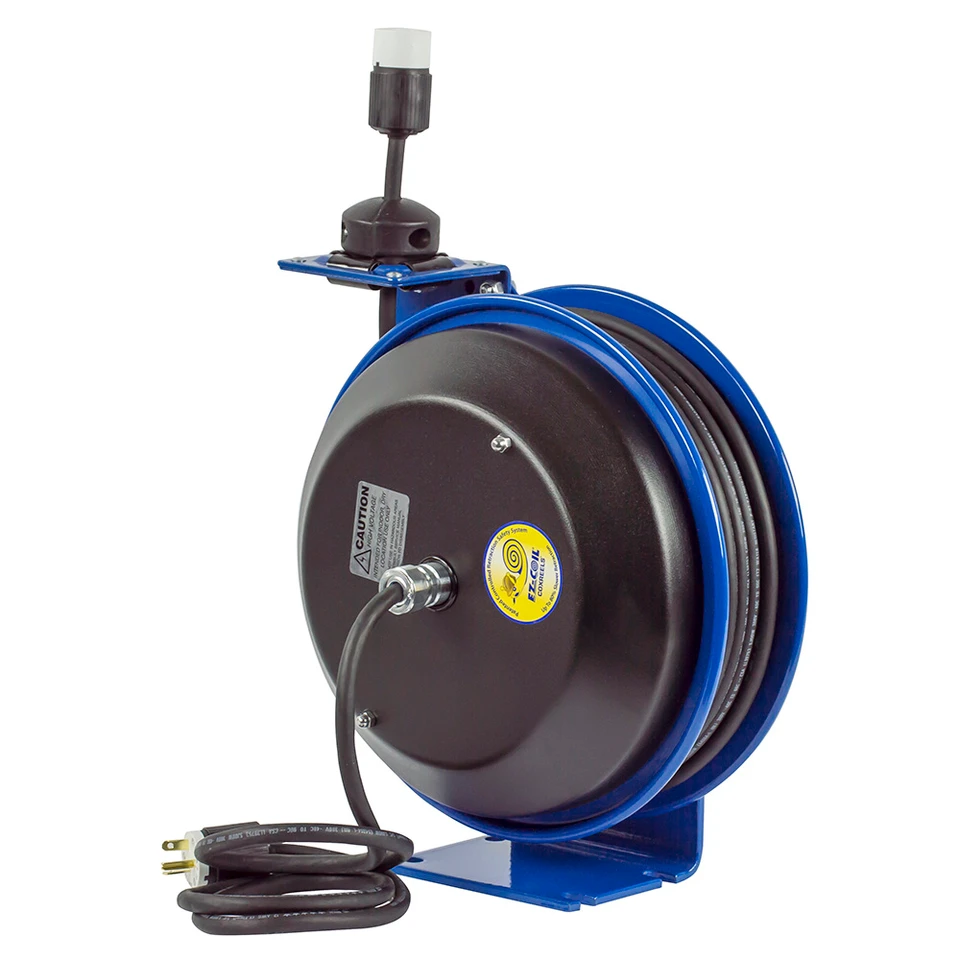

Coxreels EZ-PC24-0016-E Spring Rewind Power Cord Reel | EZ-PC Series | 100' Cord Length | 13 Amps | 115 Volts

Coxreels EZ-PC24-0016-E is a spring rewind power cord reel from the EZ-PC Series, designed to provide long-reach retractable power cord storage with controlled rewind for indoor work areas. This model includes a 100 ft cord length with 16/3 SJTO cord and is rated for 13 amps at 115 volts, making it a useful extended-reach reel for compatible maintenance, repair, service, garage, warehouse, and workstation applications.

Equipped with Coxreels EZ-Coil controlled-retraction system, the EZ-PC24-0016-E rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip during return. This configuration is supplied with an incandescent caged drop light with tool tap plug, giving users task lighting and compatible cord-end power access from the same retractable reel. Always confirm that the connected load, plug configuration, power source, and indoor work environment match the reel's electrical rating before use.

Type: Spring Rewind Power Cord Reel | Series: EZ-PC Series | Model: EZ-PC24-0016-E | Cord Included: Yes | Cord Length: 100 ft | Cord Size: 16/3 AWG | Cord Type: SJTO | Accessory: Incandescent Caged Drop Light with Tool Tap Plug | Amps: 13 | Volts: 115 | Electrical Rating: 60 Hz Single Phase | Rewind Type: EZ-Coil Spring Rewind | Use: Indoor Use Only

Features:

• EZ-Coil controlled-retraction system rewinds the cord more slowly than a standard spring rewind reel to help reduce cord whip and improve handling during return.
• 100 ft cord length provides extended reach for larger service bays, maintenance areas, warehouses, garages, and workstations located farther from the power source.
• 16/3 SJTO cord supports compatible 115 volt, 13 amp electrical applications when the connected device, accessory, and power source match the reel rating.
• Incandescent caged drop light with tool tap plug provides task lighting and compatible cord-end power access from one retractable cord.
• 13 amp and 115 volt rating supports compatible electrical loads when the full setup remains within the reel’s listed capacity.
• Designed for indoor use only and rated for 115 volt, 60 Hz single phase service.
• Multi-position lock ratchet mechanism secures the cord at the desired working length during use.
• Adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions when installed on a suitable mounting surface.
• Single pedestal, space-saving reel design helps conserve mounting space in shops, garages, service vehicles, maintenance areas, and production workstations.
• Solid one-piece heavy-gauge steel base and support post provide stable reel support for routine cord payout and rewind.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during operation.
• CPC powder coat finish helps protect the reel structure in shop, service, and industrial work environments.

Made in USA:

2 Year Warranty

Applications:

• Large maintenance shops and MRO departments where 100 ft of retractable 115 volt cord helps keep power access and task lighting organized.
• Automotive, fleet, and equipment service bays where long cord reach supports inspection, repair, lighting, and compatible electrical device use around vehicles and lifts.
• Warehouses, garages, and indoor industrial work areas where controlled-retraction cord storage helps reduce loose cable across floors and walk paths.
• Manufacturing, assembly, and repair workstations that need extended point-of-use cord reach with an integrated incandescent drop light.
• Service trucks and mobile repair setups where retractable cord storage helps keep electrical cable controlled between field service tasks.

FAQs:

• Q: Does the Coxreels EZ-PC24-0016-E include cord?
  A: Yes. This model includes 100 ft of 16/3 SJTO cord.
• Q: What accessory is supplied with this model?
  A: The EZ-PC24-0016-E is supplied with an incandescent caged drop light with tool tap plug.
• Q: What is EZ-Coil retraction?
  A: EZ-Coil is Coxreels controlled-retraction system that slows the rewind speed compared with a standard spring rewind reel, helping reduce cord whip during return.
• Q: What electrical rating does this reel have?
  A: This reel is rated for 13 amps at 115 volts, 60 Hz single phase. Connected equipment must remain within the reel's electrical rating.
• Q: What does 16/3 SJTO cord mean?
  A: 16/3 identifies the cord gauge and conductor count, while SJTO identifies the flexible service cord type used on this power cord reel.
• Q: What does the tool tap plug provide?
  A: The tool tap plug provides compatible cord-end power access at the drop light, provided the connected device stays within the reel's electrical rating.
• Q: How is the EZ-PC24-0016-E different from the EZ-PC24-0016-A?
  A: Both models are EZ-PC Series reels with 100 ft of 16/3 cord and a 13 amp, 115 volt rating. The EZ-PC24-0016-E includes an incandescent caged drop light with tool tap plug, while the EZ-PC24-0016-A is configured with a single industrial receptacle.
• Q: Can this reel be used outdoors?
  A: No. Coxreels lists EZ-PC Series power cord reels for indoor use only.
• Q: When should I choose a 100 ft EZ-PC reel?
  A: Choose a 100 ft reel when the power source is farther from the work area or when users need to reach across larger bays, warehouses, garages, or service zones while keeping cord storage controlled.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
