Coxreels 1125-5-200-EJ-SP Stainless Steel Electric 230V Explosion Proof 1/2HP Motor Rewind Hose Reel | SS1125 Series | 3/4" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

For washdown, fluid transfer, chemical processing, marine, and other corrosion-prone work areas, the Coxreels 1125-5-200-EJ-SP delivers stainless steel reel construction with motorized rewind convenience for high-pressure hose management. This SS1125 Series reel is built for 3/4" I.D. hose up to 200 ft, giving maintenance crews, processing facilities, and service bays the reach needed to handle long hose runs while keeping unused hose organized, protected, and off the floor. The 3000 PSI pressure rating supports compatible high-pressure air, water, and fluid transfer applications when paired with the correct hose and fittings.

The 230V AC, 1/2 HP explosion proof reversible motor rewind helps reduce manual rewind effort on long hose lengths, while the SS Series stainless steel fluid path supports cleaner, non-corrosive performance in environments where rust, contamination, or frequent washdown are concerns. The 'SP' suffix indicates Coxreels' standard unpolished 'as manufactured' stainless steel finish, and the 1125 Series open drum slot and low-profile outlet riser help promote a flatter, smoother hose wrap during rewind.

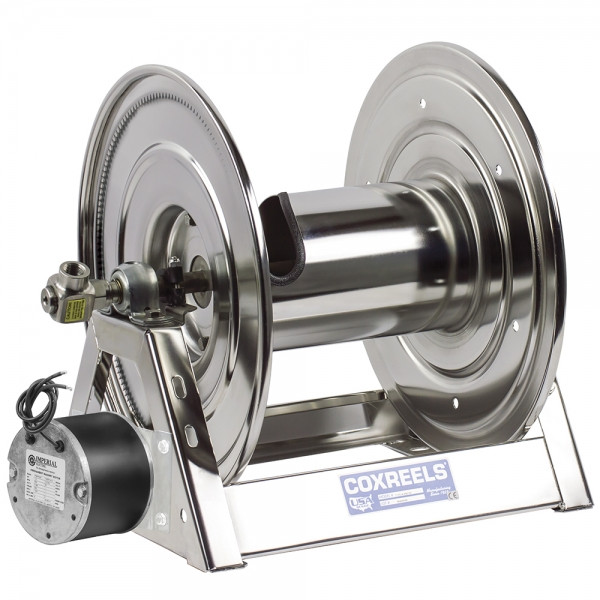

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Stainless Steel Motorized Hose Reel | Series: SS1125 Series | Model: 1125-5-200-EJ-SP | Configuration: Less Hose | Rewind: 230V AC, 1/2 HP Explosion Proof Reversible Motor | Hose I.D. Capacity: 3/4" | Hose O.D. Capacity: 1-1/4" | Hose Capacity: 200 ft | Optional Capacity: 1/2" I.D. x 7/8" O.D. x 450 ft with reducer required | Inlet Swivel & Outlet Riser: 3/4" F NPT | Max Pressure: 3000 PSI | Base Reel Approx. Weight: 55 lb | Motor Option Add-On Approx. Weight: 26 lb

• Stainless steel construction with stainless steel fluid paths supports cleaner performance in corrosive, hygienic, washdown, and contamination-sensitive environments.
• Non-corrosive 90° full-flow NPT swivel inlet is machined from high quality stainless steel to help maintain flow through the reel connection.
• Nitrile swivel seals use non-toxic food grade grease for SS Series applications where cleaner fluid handling is required.
• All-welded A-frame construction provides a rigid reel structure for demanding plant, dock, facility, and service environments.
• Low-profile outlet riser and open drum slot design help guide hose onto the drum for a flat, smooth wrap with reduced crimping.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation with reduced routine service requirements.
• Adjustable tension brake helps prevent free-wheeling during operation, while the long-handled locking pin secures the reel during transport or storage.
• Direct gear drive on motor-driven models provides quiet, smooth retraction without a chain drive.

Made in USA:

2 Year Warranty

Applications:

• Food and chemical processing plants managing compatible transfer, washdown, or service hoses in corrosion-sensitive work areas.
• Marine, dock, and offshore facilities where stainless construction helps reduce rust concerns around moisture, salt air, and outdoor exposure.
• Manufacturing plants and MRO departments organizing long high-pressure hose runs for equipment service, fluid handling, or facility maintenance.
• Water treatment, bottling, dairy, and commercial kitchen environments where cleaner hose storage and non-corrosive reel components are important.
• Petrochemical and chemical fluid transfer settings where the reel’s pressure rating, stainless fluid path, and compatible hose selection match the system requirements.

FAQs:

• Q: What does 'less hose' mean on the 1125-5-200-EJ-SP?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible hose separately based on the required hose I.D., O.D., pressure rating, fluid compatibility, and end fittings.
• Q: What does the EJ motor option mean?
  A: Coxreels lists the EJ motor option as a 230V AC, 1/2 HP explosion proof reversible AC rectified motor rewind. It is used to motorize reel rewind so long hose lengths do not need to be manually cranked back onto the drum.
• Q: Is this the electro-polished stainless version?
  A: No. The 'SP' suffix indicates the standard unpolished 'as-manufactured' stainless steel finish. Coxreels also identifies 'SS' as the electro-polished stainless steel finish option.
• Q: Can this reel be used with 1/2" hose instead of 3/4" hose?
  A: Coxreels lists an optional capacity of 1/2" I.D. x 7/8" O.D. hose up to 450 ft for this size index, with a reducer required. Confirm hose O.D., pressure rating, fitting size, and media compatibility before ordering.
• Q: Is the 3000 PSI rating enough for high-pressure washdown or fluid transfer?
  A: The reel is rated for 3000 PSI, but the complete system must also be matched to the hose, fittings, swivel, fluid type, and operating pressure. Do not exceed the lowest-rated component in the hose and reel assembly.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
