Coxreels 1125-5-100-EJ-SP Stainless Steel Electric 230V Explosion Proof 1/2HP Motor Rewind Hose Reel | SS1125 Series | 3/4" Hose Diameter | 100' Hose Length | 3000 Max PSI | Less Hose

When a hose reel needs stainless construction, powered rewind, and a motor configuration for controlled environments, the Coxreels 1125-5-100-EJ-SP provides a practical reel platform for long hose runs in washdown, fluid transfer, spraying, marine, and industrial maintenance areas. This SS1125 Series model handles 3/4" I.D. hose with up to 100 ft capacity and a 3000 PSI maximum pressure rating, giving buyers a corrosion-conscious reel body for compatible medium-pressure air, water, oil, grease, hydraulic, clean fluid, and washdown service.

The 230V explosion proof 1/2 HP electric motor rewind configuration helps reduce the labor of retrieving longer hose lengths while keeping hose stored off the floor between uses. 'Explosion proof' refers to the motor design used for hazardous or controlled locations where ignition sources must be evaluated; final suitability depends on the site classification, electrical installation, and applicable codes. The SP finish indicates a standard unpolished, as-manufactured stainless steel finish, while the stainless steel external fluid path helps support cleaner, non-corrosive performance where the transferred media and hose assembly are properly matched.

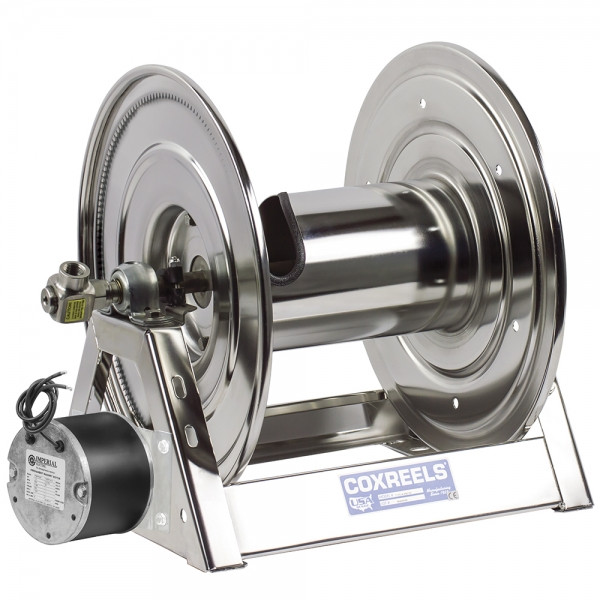

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Stainless Steel Electric Motor Rewind Hose Reel | Series: SS1125 Series | Model: 1125-5-100-EJ-SP | Configuration: Less Hose | Motor: 230V Explosion Proof 1/2 HP | Finish: SP Standard Unpolished Stainless Steel | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 3000 PSI | Ship Weight: 68 lbs | Overall Dimensions: 26" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y

Features:

• Stainless steel reel construction and stainless steel fluid path help reduce corrosion concerns in wet, washdown, marine, and clean-fluid environments.
• Non-corrosive external fluid path with high quality stainless steel 90° full-flow NPT swivel inlet supports efficient flow through the reel.
• Nitrile swivel seals with non-toxic food grade grease support clean fluid handling where the seal material and media are compatible.
• Exclusive stainless steel low profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
• One-piece, all CNC robotically welded 1/4" stainless steel 'A' frame base creates a rigid reel structure and includes the mounting pattern in the base.
• Stainless steel CNC robotically spun and ribbed discs with rolled edges help add strength, hose protection, and safer handling around the drum edges.
• Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during hose payout and rewind.
• Reliable direct gear drive on motor driven models provides quiet, smooth retraction with no chain.

Made in USA:

2 Year Warranty

Applications:

• Washdown and cleaning stations - storing 3/4" hose neatly between shifts while keeping walkways clearer and reducing loose hose on the floor.
• Food, beverage, and clean-fluid handling - supporting compatible hose assemblies where stainless construction and a stainless fluid path are preferred.
• Marine and coastal service areas - managing hose in moisture-prone environments where corrosion resistance is a major buying concern.
• Chemical and fluid transfer operations - organizing compatible hose for controlled dispensing, transfer, or rinsing tasks when media compatibility has been verified.
• Pressure washing and spraying work - handling 100 ft hose runs for medium-pressure applications that stay within the reel's 3000 PSI maximum rating.
• Industrial MRO and maintenance bays - providing powered rewind for air, water, oil, grease, or hydraulic hose where the selected hose and fittings match the service.

FAQs:

• Q: Does the 1125-5-100-EJ-SP include hose?
  A: No. This is a 'Less Hose' reel, meaning the hose is not included. Select a compatible 3/4" I.D. hose separately and confirm that the hose outside diameter, length, pressure rating, temperature range, fittings, and media compatibility match the application.
• Q: What does the EJ motor option mean for this reel?
  A: In this product title, EJ identifies the 230V explosion proof 1/2 HP electric motor rewind configuration. The motor voltage and hazardous-location suitability should be checked against your facility's electrical requirements and jobsite classification before installation.
• Q: What is the benefit of the SP stainless finish?
  A: SP indicates the standard unpolished, as-manufactured stainless steel finish. It provides the corrosion-resistance benefits of stainless construction without the electro-polished finish used on SS-finish variants.
• Q: Can this reel be used for hydraulic or grease service?
  A: Yes, when the hose, fittings, seals, pressure rating, and media compatibility match the hydraulic or grease application. The reel is rated to 3000 PSI, but the complete hose assembly must also be rated for the job.
• Q: Why choose a motor rewind reel instead of a hand crank reel?
  A: Motor rewind reduces manual effort when retrieving long or heavier hose assemblies. It is useful for fixed service bays, vehicle-mounted systems, wash areas, and production environments where repeated hose rewind is part of the workflow.
