When corrosion control, powered rewind, and higher-pressure hose capacity all matter, the Coxreels 1125-5-100-ED-SP stainless steel motor rewind hose reel gives technicians a clean, organized way to manage long hose runs in washdown, fluid transfer, marine, food processing, and chemical handling environments. This SS1125 Series reel is built for 3/4" I.D. hose with up to 100 ft capacity and a 3000 PSI maximum pressure rating, allowing buyers to pair the reel with compatible hose for medium-pressure air, water, oil, grease, hydraulic, washdown, or spraying service where the application matches the reel and hose specifications.
The 12V DC explosion proof 1/2 HP electric motor rewind configuration supports powered hose retrieval where manual cranking is not preferred, while the stainless steel fluid path and stainless steel reel construction help reduce corrosion risk in wet, washdown, coastal, and contamination-sensitive locations. The open drum slot and low profile outlet riser help guide hose onto the drum in a flatter, smoother wrap, reducing hose crimping during storage and daily use.

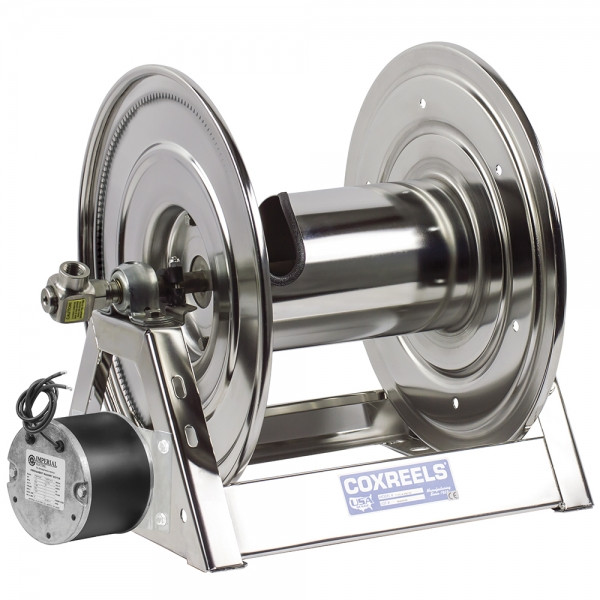

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Electric Motor Rewind Hose Reel | Series: SS1125 Series | Model: 1125-5-100-ED-SP | Configuration: Less Hose | Motor: 12V DC Explosion Proof 1/2 HP | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Max Pressure: 3000 PSI | Ship Weight: 68 lbs | Overall Dimensions: 26" W x 19-1/4" H x 17-5/8" L | Mounting Pattern: 15-13/20" M x 10" N | Base: 17-3/8" X x 16" Y
Features:
- Stainless steel reel construction and stainless steel fluid path help resist corrosion in wet, washdown, marine, and contamination-sensitive environments.
- Non-corrosive external fluid path with high quality stainless steel 90° full-flow NPT swivel inlet supports efficient flow through the reel.
- Nitrile swivel seals with non-toxic food grade grease support clean fluid handling where compatible with the media being transferred.
- Stainless steel low profile outlet riser and open drum slot help create a flat, smooth hose wrap with reduced crimping during rewind.
- One-piece CNC robotically welded 1/4" stainless steel 'A' frame base provides a rigid mounting platform without a bolted frame joint.
- Stainless steel CNC robotically spun and ribbed discs with rolled edges add strength while helping protect the hose during storage and retrieval.
- Permanently lubricated, self-aligning pillow block bearings support smooth reel rotation during winding and unwinding.
- Reliable direct gear drive provides powered rewind without a chain, helping deliver smooth, quiet retraction on motor driven models.
Made in USA:
Applications:
- Food and beverage facilities - managing compatible washdown or clean-fluid hose where stainless construction helps limit corrosion and contamination concerns.
- Marine and coastal service areas - organizing 3/4" hose in environments exposed to moisture, salt air, or frequent washdown.
- Chemical and fluid transfer stations - storing compatible hose for controlled dispensing, transfer, or cleanup work where stainless fluid paths are preferred.
- Pressure washing and spraying operations - handling long 100 ft hose runs while keeping the work area cleaner and reducing hose left loose on the floor.
- Industrial maintenance and MRO - routing air, water, oil, grease, or hydraulic hose where the reel pressure rating, hose size, and service media are properly matched.
FAQs:
- Q: What does 'less hose' mean on this Coxreels model?
A: It means the reel is supplied without hose installed. The buyer must select and install a compatible 3/4" I.D. hose that does not exceed the listed hose outside diameter, hose length, pressure rating, and media compatibility requirements. - Q: Is this reel stainless steel?
A: Yes. This SS1125 Series reel uses stainless steel reel construction and a stainless steel fluid path for cleaner, more corrosion-resistant performance than standard painted steel reel construction. - Q: What does explosion proof motor rewind mean?
A: Explosion proof motor rewind refers to the motor configuration supplied for hazardous or controlled environments where ignition risk must be considered. Final suitability depends on the jobsite classification, wiring method, applicable codes, and the exact motor approval details. - Q: Can this reel be used for pressure washing?
A: It can be used when the pressure washing hose, fittings, media, temperature, and working pressure are compatible with the reel's 3/4" hose capacity and 3000 PSI maximum pressure rating. - Q: Why choose motor rewind instead of hand crank?
A: Motor rewind reduces manual effort when retrieving longer or heavier hose runs. It is useful when the reel is mounted on equipment, in a fixed service bay, or in a location where powered retraction improves workflow.
| LESS HOSE | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
SIZE INDEX | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
|
SS1125 SERIES - Hand Crank & Motor Driven
|
||||||||||
| 1125-5-100-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-A-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-E-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-EA-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-EB-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-ED-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-EJ-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
| 1125-5-100-H-SP | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | 42 | 6 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
