Coxreels 1125-4-200-EA-SP Stainless Steel Electric 115V Explosion Proof 1/2HP Motor Rewind Hose Reel | SS1125 Series | 1/2" Hose Diameter | 200' Hose Length | 3000 Max PSI | Less Hose

Built for high-pressure hose management in washdown, fluid transfer, spraying, chemical processing, marine, and corrosion-prone work areas, the Coxreels 1125-4-200-EA-SP is a stainless steel motor rewind hose reel from the SS1125 Series. This reel is configured for 1/2" I.D. hose with 200 ft hose capacity and a 3000 PSI maximum pressure rating, giving buyers a reel platform suited for long hose runs where pressure capability and controlled storage matter. The 115V explosion proof 1/2 HP electric motor provides powered rewind for installations where manual cranking is not preferred and where the motor configuration must match the electrical and environmental requirements of the work area.

The stainless steel SS1125 construction is selected for clean, non-corrosive service where rust, contamination, and washdown exposure can shorten the life of standard painted steel reels. Its open drum slot and low profile outlet riser help guide hose onto the drum without pinching, while the direct gear drive rewind system eliminates chain-driven retraction components. Use this reel as a fixed hose storage and dispensing point in processing plants, marine facilities, pressure washing systems, and other industrial locations that require stainless steel fluid handling equipment.

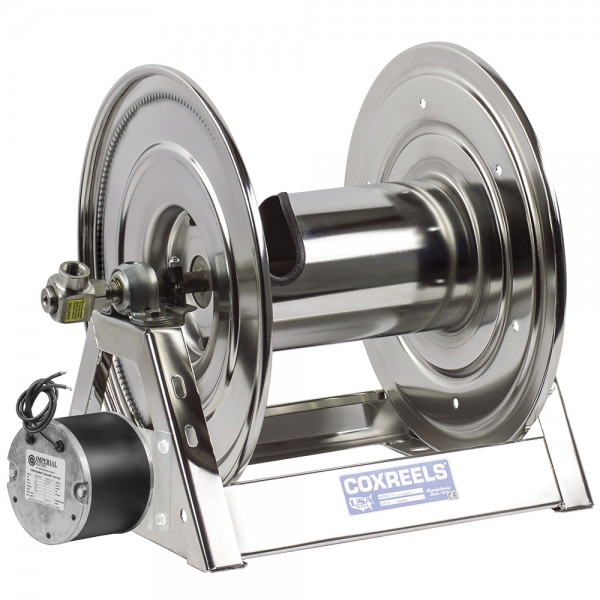

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Motor Rewind Hose Reel | Series: SS1125 Series | Model: 1125-4-200-EA-SP | Configuration: Less Hose | Material: Stainless Steel | Motor: 115V Explosion Proof Electric Motor | Motor Power: 1/2 HP | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 200 ft | Max Pressure: 3000 PSI | Ship Weight: 65 lbs | Overall Dimensions: 25.75" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y

Features:

• Electro-polished stainless steel construction helps reduce corrosion and supports cleaner fluid handling in washdown, food processing, chemical processing, and marine environments.
• Stainless steel fluid path supports non-corrosive performance where contamination control and resistance to rust are important purchasing factors.
• Reliable direct gear drive on motor driven models provides quiet, smooth retraction without a chain drive.
• Exclusive low profile outlet riser and open drum slot design help produce a flat, smooth hose wrap that reduces pinching and binding during rewind.
• All-welded A-frame construction provides a rigid mounting base for fixed installation on skids, walls, benches, trucks, or equipment frames.
• Permanently lubricated self-aligning pillow block bearings support smooth drum rotation and reduce routine bearing maintenance.
• Long-handled locking pin secures the reel from rotation during transport or storage.
• Adjustable tension brake helps prevent free-wheeling during hose payout and rewind.

Made in USA:

2 Year Warranty

Applications:

• Food and chemical processing facilities - managing 1/2" hose in areas where stainless steel construction helps limit corrosion and contamination concerns.
• Marine and dockside service - storing pressure hose in salt-air or moisture-prone locations where painted steel reels may be less suitable.
• Pressure washing and washdown stations - keeping long hose runs organized while maintaining a reel pressure rating up to 3000 PSI.
• Industrial fluid transfer systems - supporting fixed reel installations for water, compatible chemicals, oils, and other service fluids when hose and seal compatibility are confirmed.
• Spraying and plant maintenance areas - reducing hose clutter around work cells, processing lines, utility skids, and service bays.

FAQs:

• Q: What does 'less hose' mean on this Coxreels 1125-4-200-EA-SP reel?
  A: It means the reel is supplied without hose installed. The buyer must provide a compatible 1/2" I.D. hose separately and confirm that the hose pressure rating, outside diameter, length, and fluid compatibility match the application.
• Q: Why choose the stainless steel SS1125 version instead of a standard 1125 Series reel?
  A: The stainless steel version is used where corrosion resistance and cleaner fluid handling are important, such as food processing, chemical processing, marine environments, and washdown areas. It is a better fit than painted steel when rust, moisture, or contamination are major concerns.
• Q: Is this reel rated for 3000 PSI service?
  A: Yes, this model is listed with a 3000 PSI maximum pressure rating. The installed hose and system components must also be rated for the working pressure of the application.
• Q: What does explosion proof motor rewind mean?
  A: Explosion proof refers to the motor configuration supplied on this model. The final installation must still be reviewed against the job site's electrical code, hazardous location requirements, and local safety standards.
• Q: Can this reel be mounted on a truck, skid, or fixed work station?
  A: Yes, it can be installed where the mounting surface and fasteners are properly sized for the reel weight, hose weight, and pull forces. Confirm the mounting pattern and available clearance before ordering.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
