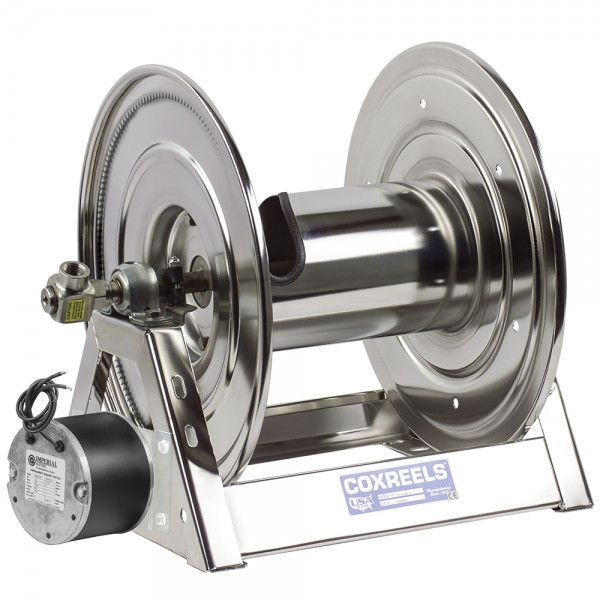

Built for corrosion-prone hose handling areas that also need powered rewind, the Coxreels 1125-4-100-E-SP is a stainless steel electric motor rewind hose reel from the SS1125 Series. This less-hose model is sized for 1/2" I.D. hose with up to 100 ft hose capacity, giving maintenance teams and equipment builders a stainless reel platform for selecting the exact hose required for the media, pressure, and work environment. The 3000 PSI pressure rating supports compatible high-pressure hose service, while the 12V DC 1/3 HP electric motor rewind retrieves hose using vehicle or DC system power instead of manual cranking.
The SS1125 Series combines Coxreels' open drum 1125-style layout with stainless steel construction for cleaner, more corrosion-resistant hose storage. Its motorized direct gear drive (a chain-free drive arrangement used to rotate the reel under power) supports controlled rewind, while the low profile outlet riser and open drum slot help the hose lay flat across the drum. For service bodies, mobile washdown rigs, marine equipment, and fixed stations exposed to moisture or cleaning chemicals, this reel helps keep hose organized while reducing loose hose on the floor or deck.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Stainless Steel Electric Motor Rewind Hose Reel | Series: SS1125 Series | Model: 1125-4-100-E-SP | Rewind: 12V DC 1/3 HP Electric Motor | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 100 ft | Max Pressure: 3000 PSI | Inlet: 1/2" Female NPT | Swivel Material: Stainless Steel | Seal Type: Nitrile | Bearing Type: Permanently Lubricated Self-Aligning Pillow Block Bearings | Finish: Stainless Steel | Ship Weight: 49 lbs
Features:
- 12V DC 1/3 HP electric motor rewind retrieves hose using DC power, making the reel practical for service trucks, mobile equipment, and remote stations.
- Stainless steel construction supports cleaner, non-corrosive hose management in wet, washdown, marine, and processing environments.
- Stainless steel swivel and fluid path help reduce corrosion concerns when compared with standard painted steel reel configurations.
- Direct gear drive on motorized models provides chain-free powered rewind for smooth reel rotation.
- Low profile outlet riser and open drum slot help guide the hose into a flat, smooth wrap during rewind.
- Permanently lubricated self-aligning pillow block bearings support consistent rotation with reduced routine bearing maintenance.
- All-welded A-frame style base provides a stable mounting platform for fixed or mobile installations.
- Less-hose configuration allows the buyer to install hose selected for the exact media, fittings, pressure rating, and operating environment.
Made in USA:
Applications:
- Service trucks and mobile equipment - DC-powered hose rewind where a 12V electrical system is available on the vehicle or skid.
- Marine and dockside work areas - stainless steel hose storage for salt-air, wet, or splash-prone environments.
- Food and beverage processing - managing compatible hose in cleaning, sanitation, or maintenance zones where stainless construction is preferred.
- Washdown and facility maintenance - keeping high-pressure hose organized at cleaning stations, equipment wash bays, and maintenance points.
- Chemical processing and industrial MRO - corrosion-resistant reel storage for compatible hose used in plant service areas and production support spaces.
FAQs:
- Q: Does the Coxreels 1125-4-100-E-SP include hose?
A: No. This is a less-hose reel. It is built to hold up to 100 ft of compatible 1/2" I.D. hose, but the hose must be selected and installed separately. - Q: What does the 'E' motor option mean?
A: The 'E' configuration identifies a 12V DC 1/3 HP electric motor rewind. It is commonly chosen for service vehicles, mobile systems, and installations where DC power is preferred over compressed air or hydraulic rewind. - Q: Why choose stainless steel for this hose reel?
A: Stainless steel is used where rust, moisture, washdown exposure, or contamination control are concerns. It is a practical choice for marine, food processing, chemical processing, and sanitation-related hose handling areas. - Q: Can I install any 1/2" hose on this reel?
A: The hose must match the reel's 1/2" I.D. and 7/8" O.D. capacity, 100 ft length capacity, pressure rating, inlet size, bend radius, and media compatibility. Always verify hose, fittings, and swivel materials before installation. - Q: What should be checked before ordering this model?
A: Confirm the 12V DC power source, 1/3 HP electric rewind requirement, 100 ft hose capacity, 3000 PSI rating, 1/2" Female NPT inlet, and available mounting space against your equipment layout.
| LESS HOSE SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | APRX. LBS. |
SIZE INDEX | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||
|
SS1125 SERIES - Hand Crank & Motor Driven
|
||||||||||
| 1125-4-100-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-A-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-E-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-EA-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-EB-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-ED-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-EJ-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
| 1125-4-100-H-SP | 1/2" | 7/8" | 100 | 3/8" | 3/4" | 140 | 1/2" F NPT | 3,000 | 36 | 4 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
