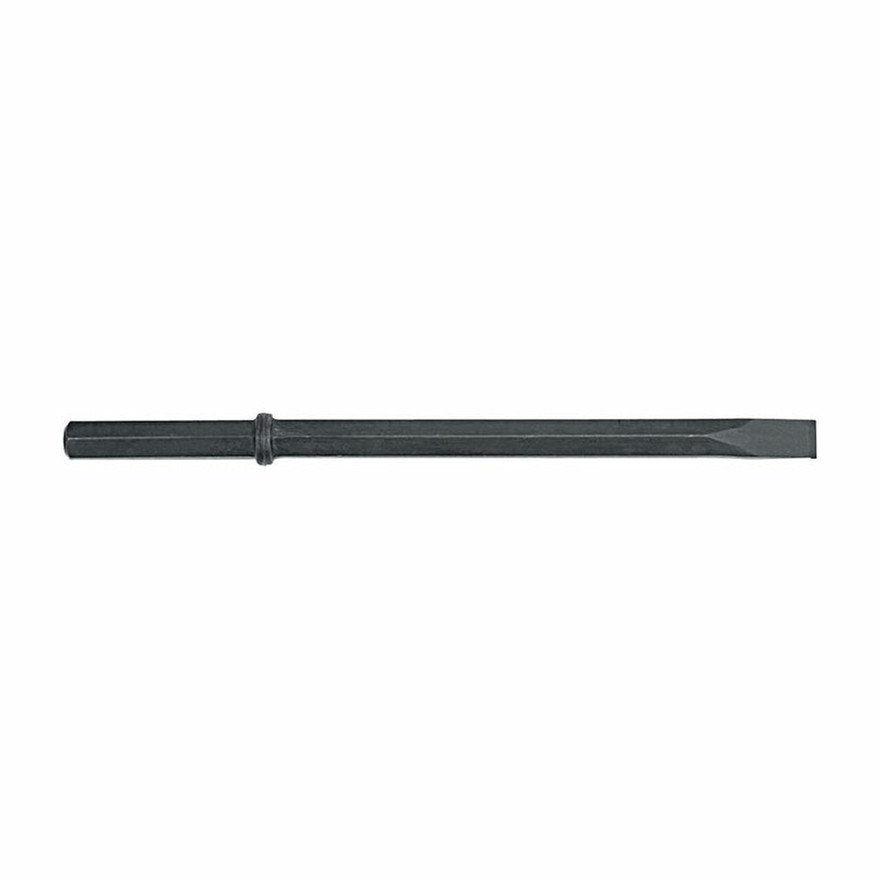

Designed for controlled material removal and surface preparation, the Ingersoll Rand 50196385 Standard-Duty 1" Narrow Chisel features a 14 in. under collar length with a 1-1/4 in. x 6 in. hex shank. Its narrow cutting edge is well suited for scaling, channeling, trimming, and controlled concrete or masonry removal where a focused cutting path is required.
Manufactured from heat-treated alloy steel, this standard-duty narrow chisel is engineered to withstand repeated impact while delivering dependable performance in construction, demolition, and industrial maintenance applications. It is designed for use with compatible pneumatic breakers and demolition hammers that accept a 1-1/4 in. x 6 in. hex shank steel.
Product Type: Standard-Duty Narrow Chisel | Model: 50196385 | SKU: 50196385 | Chisel Width: 1 in. | Under Collar Length: 14 in. | Shank Size: 1-1/4 in. x 6 in. Hex | Material: Heat-Treated Alloy Steel | Application: Concrete, Masonry & Surface Preparation
Features:
- 1 in. narrow chisel edge provides controlled material removal with precise cutting action.
- Heat-treated alloy steel construction delivers durability under repeated impact loading.
- Standard-duty design is suitable for a wide variety of demolition and maintenance applications.
- 14 in. under collar length provides an effective balance of reach and maneuverability.
- 1-1/4 in. x 6 in. hex shank fits compatible pneumatic breakers and demolition hammers.
- Precision-machined shank helps ensure secure tool retention during operation.
- Ideal for trimming, channeling, scaling, and surface preparation work.
- Engineered for dependable performance in demanding construction environments.
Note: Other Ingersoll Rand Steels and accessories include Bushing tools, Moil Points, Spark-Resistant Chisels, Blanks, Capes, Gouges, Round Noses, Fullers, Caulkings, Ripper Chisels, Tooth Chisels, Paper Box Stripping Chisels, Carbide-Tipped Drill Steels, Jack Rods, Bits, Diamond Points, Clay Spades, Couplers, Cutters, Drivers, Hoses, Lock Clips, Lock Springs, Retainers, Rubber Bumpers, Shanks, Steels and Washers etc.
Applications:
- Concrete trimming and shaping.
- Masonry removal and renovation.
- Asphalt cutting and edge cleanup.
- Surface preparation and scaling.
- Expansion joint cleaning.
- General construction and industrial maintenance.
FAQs:
- Q: What is the width of this narrow chisel?
A: This model features a 1 in. cutting edge. - Q: What is the under collar length?
A: The under collar length is 14 inches. - Q: What shank size does this chisel use?
A: It is manufactured with a 1-1/4 in. x 6 in. hex shank. - Q: What materials is this narrow chisel designed for?
A: It is suitable for concrete, masonry, asphalt, and similar construction materials. - Q: What equipment is this chisel compatible with?
A: It is designed for pneumatic breakers and demolition hammers that accept a 1-1/4 in. x 6 in. hex shank accessory.
| Hex Shank Size | 7/8" x 3-1/4" | 1" x 4-1/4" | 1-1/8" x 6" | 1-1/4" x 6" | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length Under Collar | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity |
| 1" Narrow Chisel — Standard-Duty | ||||||||||||
| 14" | 50199207 | 3.25 | 10 | 50197805 | 4.5 | 5 | 50197904 | 6 | 10 | 50196385 | 7.5 | 10 |
| 18" | 50199215 | 4 | 10 | 50197821 | 5.5 | 5 | 50197912 | 7.25 | 5 | 50196401 | 9 | 5 |
| 24" | 50199223 | 5.25 | 1 | 45510245 | 6.75 | 1 | 50197938 | 9.5 | 1 | 50196419 | 11.25 | 1 |
| 36" | 45510682 | 7.5 | 1 | 45510252 | 10 | 1 | 51298107 | 13.25 | 1 | 51299477 | 15.75 | 1 |
| 48" | 45510690 | 9.75 | 1 | 45510260 | 13 | 1 | 50197979 | 17 | 1 | 51299485 | 20.5 | 1 |
| 60" | 45510708 | 12 | 1 | 45510278 | 15.75 | 1 | 50197987 | 20.5 | 1 | 51299048 | 25 | 1 |
| 72" | 45510716 | 14.25 | 1 | 45510286 | 18.75 | 1 | 50197995 | 24 | 1 | 51299493 | 29.5 | 1 |
| 84" | 45510294 | 21.75 | 1 | 45510385 | 28 | 1 | 45509965 | 34 | 1 | |||
| 96" | 45510302 | 24.5 | 1 | 45510393 | 31.75 | 1 | 45509973 | 38.75 | 1 | |||
| 120" | 45510211 | 30.5 | 1 | 45510401 | 39.75 | 1 | 45509932 | 48.5 | 1 | |||
| 144" | 45510229 | 36.75 | 1 | 45510369 | 47.5 | 1 | 45509940 | 58 | 1 | |||
| 168" | 45510237 | 42.75 | 1 | 45510377 | 55.5 | 1 | 45509957 | 67.75 | 1 | |||
| 1" Narrow Chisel — Super-Duty | ||||||||||||
| 11-1/4" | 22041503 | 3.5 | 5 | 22041115 | 4 | 5 | 22041131 | 6.5 | 5 | 22041156 | 7.5 | 5 |
| 14-1/4" | 22041610 | 3.75 | 5 | 22041123 | 5.25 | 5 | 22041149 | 6.75 | 5 | 22041164 | 8 | 5 |
Looking for more information about Ingersoll Rand Chisel? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Chisels for your application, please call (800) 608-5210 or email info@intlairtool.com
