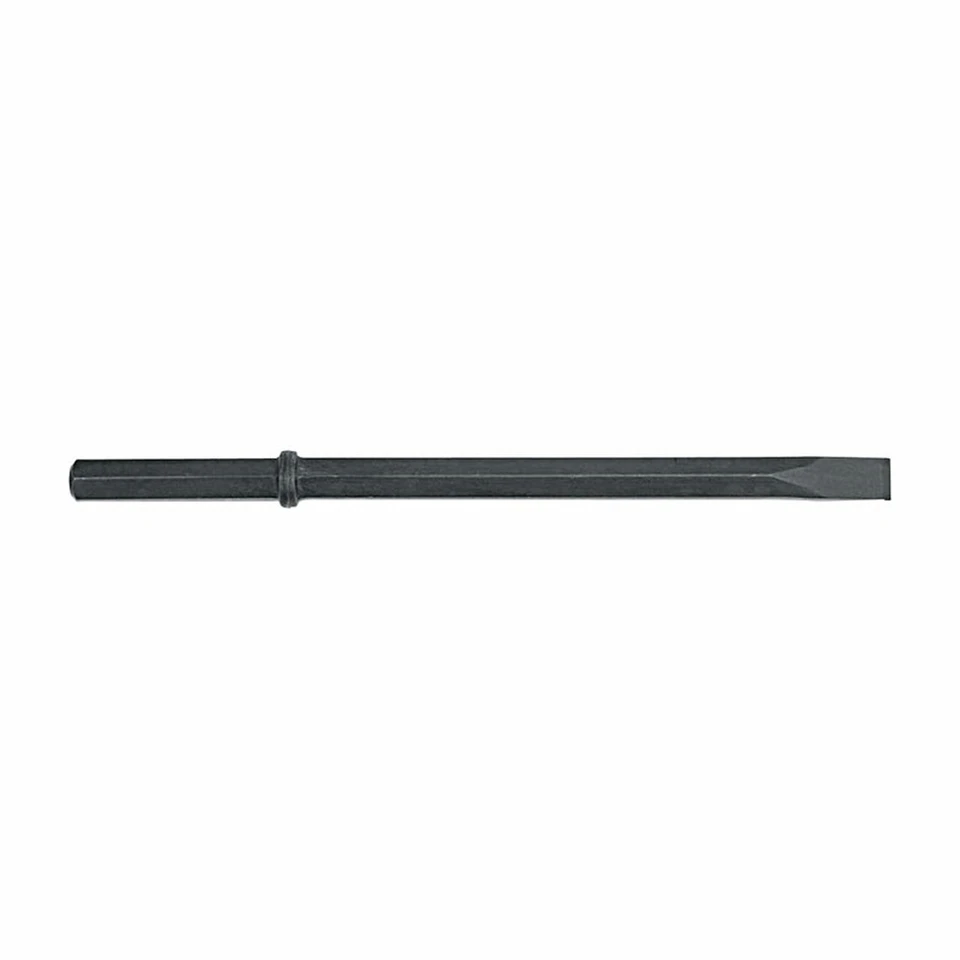

Built for demanding demolition and material removal applications, the Ingersoll Rand 22041164 Super-Duty 1" Narrow Chisel features a 14-1/4 in. under collar length and a 1-1/4 in. x 6 in. hex shank. The narrow 1-inch cutting edge concentrates impact energy into a precise area, making it ideal for trimming concrete, cutting channels, removing masonry, and other controlled demolition tasks.
Manufactured from heat-treated alloy steel, this super-duty demolition steel is designed to withstand repeated heavy impacts while maintaining dependable cutting performance. It is intended for use with compatible pneumatic breakers and demolition hammers equipped to accept a 1-1/4 in. x 6 in. hex shank accessory.
Product Type: Super-Duty Narrow Chisel | Model: 22041164 | SKU: 22041164 | Chisel Width: 1 in. | Under Collar Length: 14-1/4 in. | Shank Size: 1-1/4 in. x 6 in. Hex | Material: Heat-Treated Alloy Steel | Application: Concrete, Masonry & Surface Preparation
Features:
- 1 in. narrow cutting edge provides accurate, controlled material removal.
- Super-duty construction is engineered for demanding demolition applications.
- Heat-treated alloy steel delivers long service life under repeated impact.
- 14-1/4 in. under collar length offers an excellent balance of reach and tool control.
- 1-1/4 in. x 6 in. hex shank fits compatible pneumatic breakers and demolition hammers.
- Precision-machined shank promotes secure retention during operation.
- Suitable for trimming, channeling, scaling, and surface preparation work.
- Designed for reliable performance in construction, industrial, and maintenance environments.
Note: Other Ingersoll Rand Steels and accessories include Bushing tools, Moil Points, Spark-Resistant Chisels, Blanks, Capes, Gouges, Round Noses, Fullers, Caulkings, Ripper Chisels, Tooth Chisels, Paper Box Stripping Chisels, Carbide-Tipped Drill Steels, Jack Rods, Bits, Diamond Points, Clay Spades, Couplers, Cutters, Drivers, Hoses, Lock Clips, Lock Springs, Retainers, Rubber Bumpers, Shanks, Steels and Washers etc.
Applications:
- Concrete trimming and shaping.
- Masonry removal and renovation.
- Asphalt cutting and repair work.
- Expansion joint cleaning.
- Surface preparation and scaling.
- Heavy-duty construction and industrial demolition.
FAQs:
- Q: What is the width of the cutting edge?
A: This model features a 1-inch narrow chisel cutting edge for controlled material removal. - Q: What is the under collar length?
A: The under collar length is 14-1/4 inches. - Q: What shank size does this chisel use?
A: It is manufactured with a 1-1/4 in. x 6 in. hex shank. - Q: What makes this a Super-Duty chisel?
A: The Super-Duty designation identifies it as part of Ingersoll Rand's heavy-duty demolition steel line for demanding impact applications. - Q: What equipment is this chisel compatible with?
A: It is intended for pneumatic breakers and demolition hammers that accept a 1-1/4 in. x 6 in. hex shank accessory.
| Hex Shank Size | 7/8" x 3-1/4" | 1" x 4-1/4" | 1-1/8" x 6" | 1-1/4" x 6" | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length Under Collar | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity | Part Number | Weight lb | Box Quantity |
| 1" Narrow Chisel — Standard-Duty | ||||||||||||
| 14" | 50199207 | 3.25 | 10 | 50197805 | 4.5 | 5 | 50197904 | 6 | 10 | 50196385 | 7.5 | 10 |
| 18" | 50199215 | 4 | 10 | 50197821 | 5.5 | 5 | 50197912 | 7.25 | 5 | 50196401 | 9 | 5 |
| 24" | 50199223 | 5.25 | 1 | 45510245 | 6.75 | 1 | 50197938 | 9.5 | 1 | 50196419 | 11.25 | 1 |
| 36" | 45510682 | 7.5 | 1 | 45510252 | 10 | 1 | 51298107 | 13.25 | 1 | 51299477 | 15.75 | 1 |
| 48" | 45510690 | 9.75 | 1 | 45510260 | 13 | 1 | 50197979 | 17 | 1 | 51299485 | 20.5 | 1 |
| 60" | 45510708 | 12 | 1 | 45510278 | 15.75 | 1 | 50197987 | 20.5 | 1 | 51299048 | 25 | 1 |
| 72" | 45510716 | 14.25 | 1 | 45510286 | 18.75 | 1 | 50197995 | 24 | 1 | 51299493 | 29.5 | 1 |
| 84" | 45510294 | 21.75 | 1 | 45510385 | 28 | 1 | 45509965 | 34 | 1 | |||
| 96" | 45510302 | 24.5 | 1 | 45510393 | 31.75 | 1 | 45509973 | 38.75 | 1 | |||
| 120" | 45510211 | 30.5 | 1 | 45510401 | 39.75 | 1 | 45509932 | 48.5 | 1 | |||
| 144" | 45510229 | 36.75 | 1 | 45510369 | 47.5 | 1 | 45509940 | 58 | 1 | |||
| 168" | 45510237 | 42.75 | 1 | 45510377 | 55.5 | 1 | 45509957 | 67.75 | 1 | |||
| 1" Narrow Chisel — Super-Duty | ||||||||||||
| 11-1/4" | 22041503 | 3.5 | 5 | 22041115 | 4 | 5 | 22041131 | 6.5 | 5 | 22041156 | 7.5 | 5 |
| 14-1/4" | 22041610 | 3.75 | 5 | 22041123 | 5.25 | 5 | 22041149 | 6.75 | 5 | 22041164 | 8 | 5 |
Looking for more information about Ingersoll Rand Chisel? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Chisels for your application, please call (800) 608-5210 or email info@intlairtool.com
