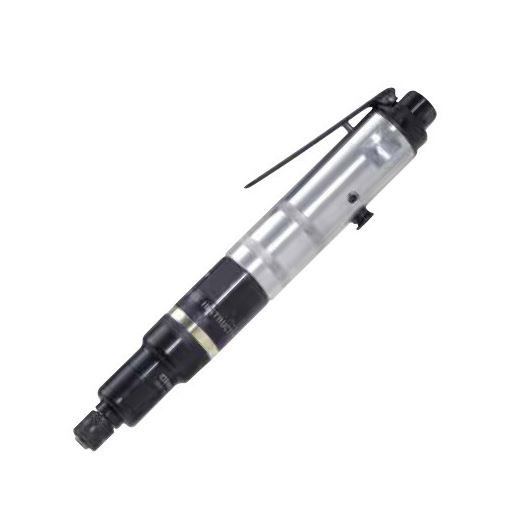

Cleco 8RSAL-20BQ Push Button Reverse Inline Screwdriver | 1,800 RPM | 15 - 38 (in-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled fastening in production assembly, the Cleco 8RSAL-20BQ inline pneumatic screwdriver combines a 15 - 38 in-lbs torque range with 1,800 RPM free speed for driving small to medium fasteners quickly without oversizing the tool for light assembly work. The inline body supports straight-on bit engagement, while the push and lever start configuration gives operators controlled starts during repetitive fastening cycles.

This 8 Series Cleco screwdriver uses a Clecomatic clutch, a torque-controlled clutch system that helps stop the tool at the selected torque setting for repeatable rundown. Its push-button reverse allows fast back-out of screws without changing grip position, and the 1/4" hex quick change drive accepts common insert bits for faster bit swaps on the bench, line, or repair station.

Type: Inline Pneumatic Screwdriver | Series: Cleco 8 Series | Model: 8RSAL-20BQ | Clutch Type: Clecomatic Clutch | Start Type: Push and Lever Start | Reverse Type: Push Button Reverse | Drive: 1/4" Hex Quick Change | Torque Range: 15 - 38 in-lbs / 1.7 - 4.3 Nm | Free Speed: 1,800 RPM | Length: 10.5" / 282 mm | Weight: 2.6 lbs / 1.2 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch supports repeatable torque-controlled fastening for assembly environments where consistent rundown matters.
• Push and lever start configuration gives the operator positive control before each fastening cycle.
• Push button reverse allows quick screw removal or correction without switching tools.
• 1/4" hex quick change drive speeds bit changes when moving between fastener sizes or bit styles.
• Inline body helps keep force aligned with the fastener, reducing side load on screws during bench and fixture work.
• Includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range.
• Runs at 90 PSI air pressure for maximum rated torque output.

Applications:

• Electronics and appliance assembly where small fasteners require controlled torque and fast repeat cycles.
• Automotive interior, trim, and component fastening where inline access and reverse control help with correction work.
• Light manufacturing stations using 1/4" hex screwdriver bits for screws, threaded inserts, and repeat assembly tasks.
• Maintenance benches and repair cells that need a compact pneumatic screwdriver for removing and reinstalling machine covers, brackets, and panels.
• Fixture-based assembly where straight-line tool alignment helps keep the bit square to the fastener.

FAQs:

• Q: What is the torque range of the Cleco 8RSAL-20BQ?
  A: The 8RSAL-20BQ has a torque range of 15 - 38 in-lbs, or 1.7 - 4.3 Nm. This range is suited to controlled assembly fastening rather than high-torque bolt removal.
• Q: What does 1/4" hex quick change mean?
  A: The tool accepts 1/4" hex screwdriver bits and uses a quick change chuck to make bit swaps faster. This is helpful when operators change between Phillips, Torx, hex, or other common drive styles during assembly.
• Q: Does this screwdriver have reverse?
  A: Yes. The 8RSAL-20BQ is listed as a push button reverse model, allowing the operator to back out screws or correct a fastener without reaching for a separate tool.
• Q: What air pressure is required?
  A: Cleco rates this tool at 90 PSI, or 620 kPa, for maximum rated torque performance. Use a properly regulated air supply and a minimum 1/4" I.D. hose as specified by the manufacturer.
• Q: Is this a pistol grip screwdriver?
  A: No. This model is an inline screwdriver, which keeps the tool body aligned with the fastener. Inline tools are commonly used in bench assembly, fixture work, and straight-access fastening positions.
