Cleco 88RSATP-7CQ Sliding Knob Reverse Pneumatic Screwdriver | Trigger Start | 88 Series | 550 RPM | 1.2 - 7.3 (ft-lbs) Torque Range | 1/4" Hex Quick Change Drive

Built for controlled production fastening where pistol-grip handling and trigger activation are preferred, the Cleco 88RSATP-7CQ Sliding Knob Reverse Pneumatic Screwdriver delivers a 1.2 - 7.3 ft-lbs torque range for light-to-medium assembly screws, threaded inserts, and small fasteners. Its 550 RPM free speed provides a measured rundown rate for repeatable seating without the high-speed behavior of lower-torque drivers, making it well-suited for assembly stations where torque consistency matters more than raw speed.

This 88 Series trigger start screwdriver uses Cleco’s Clecomatic clutch (a torque-controlled clutch system that helps stop the tool at the selected torque setting) to support consistent fastening results across repeated cycles. The sliding knob reverse allows the operator to change direction for screw removal, correction, or rework, while the 1/4" hex quick change drive accepts compatible insert bits for faster changeover between fastener styles at the bench, line, or fixture-based assembly station.

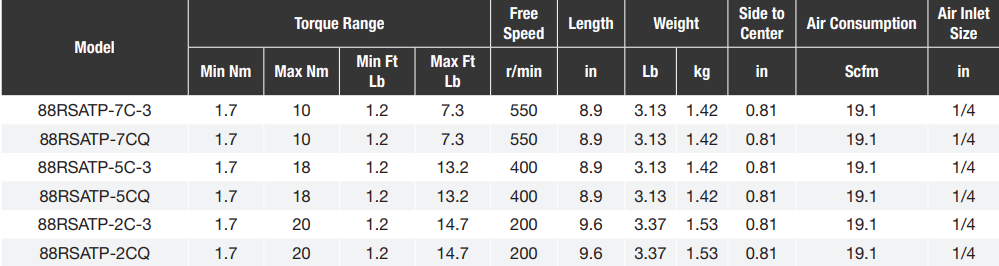

Type: Pistol Grip Pneumatic Screwdriver | Series: Cleco 88 Series | Model: 88RSATP-7CQ | Clutch Type: Clecomatic Clutch | Start Type: Trigger Start | Reverse Type: Sliding Knob Reverse | Drive: 1/4" Hex Quick Change | Torque Range: 1.2 - 7.3 ft-lbs / 15 - 95 in-lbs / 1.7 - 10 Nm | Free Speed: 550 RPM | Length: 8.9" / 225 mm | Weight: 3.1 lbs / 1.4 kg | Side to Center: 0.81" | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19.1 SCFM | Rated Air Pressure: 90 PSI / 620 kPa

Features:

• Clecomatic clutch supports torque-controlled fastening for repeatable production assembly work.
• Trigger start operation gives the operator direct control of each fastening cycle from the pistol grip handle.
• Sliding knob reverse allows quick direction changes for backing out screws, correcting misstarts, and completing rework.
• 1.2 - 7.3 ft-lbs torque range handles light-to-medium assembly screws and threaded fasteners.
• 550 RPM free speed provides a balanced rundown rate for controlled seating and productive cycle timing.
• 1/4" hex quick change drive accepts compatible insert bits and helps reduce downtime during bit changes.
• Compact 88 Series pistol grip format works well at bench, line, and fixture-based assembly stations.
• Standard equipment includes operating instructions and service manual, suspension bail, and all torque springs required to meet the indicated torque range.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Light manufacturing assembly: Installing housings, brackets, covers, panels, and small mechanical components where torque repeatability is required.
• Appliance and electronics production: Fastening plastic, sheet-metal, and threaded-insert assemblies where controlled rundown helps protect parts and threads.
• Automotive component assembly: Driving trim screws, access cover hardware, small brackets, and repeated fasteners in subassembly work.
• Industrial repair benches: Removing and reinstalling guards, plates, machine covers, and small hardware during service or inspection.
• Production workstations: Supporting repetitive fastening with 1/4" hex insert bits where operators prefer trigger start control.

FAQs:

• Q: What does trigger start mean on the Cleco 88RSATP-7CQ?
  A: Trigger start means the operator starts each fastening cycle by pulling the trigger on the pistol grip handle. This gives direct start-stop control and is useful for workstations where the operator wants to position the bit before activating the tool.
• Q: What does the sliding knob reverse do?
  A: Sliding knob reverse lets the operator change tool direction for removing screws, correcting a misstart, or performing rework. This keeps one tool at the station for both installation and removal tasks.
• Q: What is the difference between the 88RSATP-7CQ and the 88RSAPT-7CQ?
  A: The 88RSATP-7CQ is a trigger start model, while the 88RSAPT-7CQ uses push and trigger start. Both are sliding knob reverse 88 Series screwdrivers with 550 RPM speed and a 1/4" hex quick change drive, but the start style changes how the operator initiates each cycle.
• Q: What bits are compatible with the 1/4" hex quick change drive?
  A: This model accepts compatible 1/4" hex insert bits, including common Phillips, Torx, hex, and other assembly bit styles. Match the bit profile and bit quality to the fastener type, torque setting, and production requirement.
• Q: What air setup is required for this screwdriver?
  A: Cleco rates this tool at 90 PSI / 620 kPa. The listed air requirements include a 1/4" NPT air inlet, 1/4" minimum hose I.D., and 19.1 SCFM air consumption.
