Cleco 88RSATP-5C-3 Sliding Knob Reverse Pneumatic Screwdriver | Trigger Start | 88 Series | 400 RPM | 1.2 - 13.2 (ft-lbs) Torque Range | 3/8" Square Drive

Built for socket-driven fastening where controlled torque and steady handling matter, the Cleco 88RSATP-5C-3 is an 88 Series pistol grip pneumatic screwdriver with trigger start, sliding knob reverse, and a 3/8" square drive for use with compatible sockets. Its 400 RPM free speed provides a balanced middle speed between slower high-torque rundown and faster light-duty assembly models, while the 1.2 - 13.2 ft-lbs torque range supports repeatable tightening on small bolts, nuts, and socket-head fasteners.

The Clecomatic clutch, a torque-control clutch system that helps the tool shut off consistently at the selected torque setting, makes this model useful for repetitive production tasks where hand feel alone is not enough. External torque adjustment helps tool technicians set the screwdriver for the application, and the compact pistol grip format gives operators familiar trigger control during bench assembly, fixture work, rework, and MRO fastening.

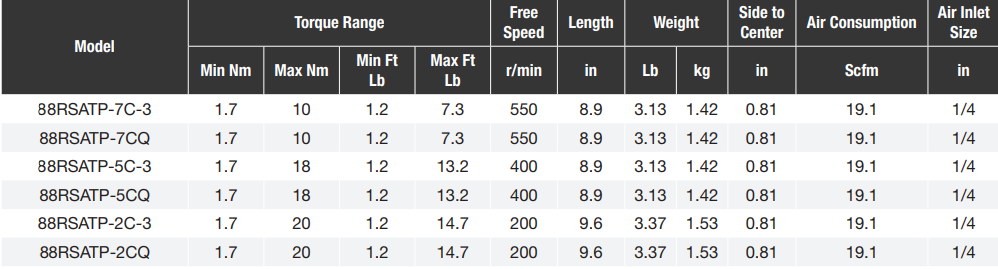

Type: Pneumatic Screwdriver | Series: 88 Series | Model: 88RSATP-5C-3 | Start Type: Trigger Start | Reverse Type: Sliding Knob Reverse | Drive Size: 3/8" | Drive Type: Square Drive | Torque Range: 15 - 160 in-lbs / 1.7 - 18 Nm / 1.2 - 13.2 ft-lbs | Free Speed: 400 RPM | Overall Length: 8.9" / 225 mm | Weight: 3.1 lbs / 1.4 kg | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" | Air Consumption: 19 SCFM | Rated Pressure: 90 PSI / 620 kPa

Features:

• Sliding knob reverse supports fast direction changes for assembly correction, fastener removal, and rework.
• Trigger start gives the operator direct control of each fastening cycle from a familiar pistol grip layout.
• Dependable Clecomatic clutch delivers consistent torque accuracy and repeatability.
• External torque adjustment helps set the tool for the fastener without disassembling the screwdriver.
• Compact design increases productivity, saves weight, and is easy to integrate into any assembly environment.
• Cleco motor is the industry standard for durability.
• Easy to repair and maintain, with high parts interchangeability with other Cleco products.
• Standard equipment includes operating instructions and service manual, suspension bail, all torque springs required to meet the indicated torque, and a side handle for models above 8 ft-lbs torque capacity.

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator FRL)

Applications:

• Assembly line fastening: Running nuts, bolts, and socket-driven fasteners where a controlled torque range is required for repeatable results.
• Automotive and off-road equipment assembly: Installing covers, brackets, guards, panels, and smaller mechanical components without using impact force.
• Appliance and machinery production: Tightening fasteners on frames, housings, subassemblies, and production fixtures.
• Industrial maintenance and repair: Removing and reinstalling socket-head hardware during inspection, service, and component replacement.
• Workshop and garage projects: Controlled pneumatic fastening for users who need socket compatibility and repeatable torque in a compact air tool.

FAQs:

• Q: What type of fasteners are the 3/8" square drive used for?
  A: The 3/8" square drive is used with compatible sockets for nuts, bolts, and socket-driven hardware. It is different from a 1/4" hex quick-change output, which is normally used with screwdriver bits.
• Q: Is the Cleco 88RSATP-5C-3 an impact tool?
  A: No. This is a torque-controlled pneumatic screwdriver, not an impact wrench. It is intended for controlled fastening and repeatable assembly work rather than breaking loose seized fasteners.
• Q: Why choose the 400 RPM version instead of the 200 RPM or 550 RPM models?
  A: The 400 RPM model offers a middle-speed option. It provides faster rundown than the 200 RPM version while offering more controlled pacing than the 550 RPM model for applications that need both productivity and torque control.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch helps the screwdriver shut off at the selected torque setting. This supports more consistent fastening than relying only on operator feel.
• Q: What air setup should be used with this screwdriver?
  A: The available data lists 19 SCFM air consumption, a 1/4" NPT air inlet, and 90 PSI-rated tool performance. Use clean, regulated air through a properly sized line and FRL to help maintain tool performance.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
