Cleco 55NL-3T-4 Pneumatic Stall Non-Reversible Angle Nutrunner | 55 Series | Lever Start | 290 RPM | 110 (ft-lbs) Max Torque

When a production fastening job calls for a compact right-angle tool with controlled stall output, the Cleco 55NL-3T-4 pneumatic angle nutrunner delivers up to 110 ft-lbs / 149 Nm max torque for higher-torque assembly work in machinery, vehicle, and industrial production settings. Its stall drive system means the tool reaches torque by stalling against the fastener rather than using a shut-off clutch, while the non-reversible configuration supports forward-only tightening where reverse operation is not required at the station.

Built in the Cleco 55 Series, this lever-start angle nutrunner uses a 1/2" square drive for compatible impact-rated sockets and a 290 RPM free speed for controlled run-down on larger threaded fasteners. The 2.0" head height and 0.9" side-to-center distance help the angle head reach into fixtures, frames, and assembly areas where straight tools or pistol tools may not fit.

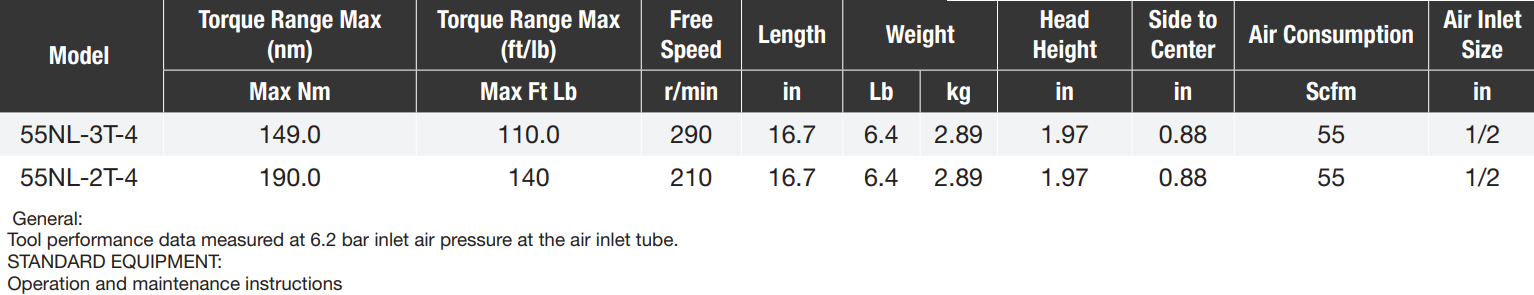

Type: Pneumatic Stall Non-Reversible Angle Nutrunner | Brand: Cleco | Model: 55NL-3T-4 | Series: 55 Series | Start Type: Lever Start | Drive Size: 1/2" Square Drive | Max Torque: 110 ft-lbs / 149 Nm | Free Speed: 290 RPM | Length: 16.8" / 425 mm | Weight: 6.4 lbs / 2.9 kg | Head Height: 2.0" / 50 mm | Side to Center: 0.9" / 22 mm | Air Inlet: 1/2" NPT | Minimum Hose I.D.: 1/2" | Air Consumption: 55 SCFM | Bolt Capacity: 9/16" Grade 5 / M14 Grade 9.8

Features:

• Stall-type fastening output supports controlled tightening on production assembly joints where consistent rundown behavior matters.
• Non-reversible forward-only operation is suited to stations dedicated to installation rather than fastener removal.
• Lever start gives the operator controlled actuation while positioning the angle head on the fastener.
• 1/2" square drive accepts compatible sockets for larger assembly fasteners and higher-torque nutrunner work.
• Planetary gearing supports tool speed changes with minimal parts replacement during service.
• Spindle bearings and splined retractable spindles help reduce friction, improve torque repeatability, and support longer tool life.
• Right-angle head configuration improves access around brackets, frames, fixtures, and other obstructions.

Made in USA:

Applications:

• Industrial assembly stations — tightening larger nuts and bolts where a 1/2" square drive angle tool is required.
• Heavy equipment and off-highway manufacturing — fastening frame, bracket, guard, and subassembly hardware in restricted areas.
• Automotive, truck, and trailer production — controlled rundown on larger assembly fasteners where reverse operation is handled separately.
• Machinery and equipment build lines — repetitive fastening on fixtures, housings, supports, and mounted components.
• Plant maintenance tool cribs — replacing or standardizing pneumatic angle nutrunners used in established Cleco 55 Series applications.

FAQs:

• Q: What does stall mean on this Cleco angle nutrunner?
  A: A stall nutrunner reaches torque when the motor stalls against the joint. This differs from a shut-off clutch tool, which automatically shuts off at a preset torque point.
• Q: Is the 55NL-3T-4 reversible?
  A: No. This model is non-reversible and is intended for forward tightening applications. Choose a reversible or collar-reverse model if the workstation requires fastener removal or reverse operation.
• Q: What socket drive does this tool use?
  A: The 55NL-3T-4 uses a 1/2" square drive. Use compatible sockets and follow the plant’s torque and fastening procedure for the joint being assembled.
• Q: What air supply does this nutrunner require?
  A: The catalog lists a 1/2" NPT air inlet, 1/2" minimum hose I.D., and 55 SCFM air consumption. Tool performance data is based on 6.2 bar inlet air pressure at the air inlet tube.
• Q: Is this tool appropriate for general garage or DIY use?
  A: This is a production pneumatic assembly nutrunner, not a general-purpose garage impact wrench. It is best matched to controlled assembly work where the 110 ft-lbs torque rating, angle-head access, and air supply requirements fit the application.
