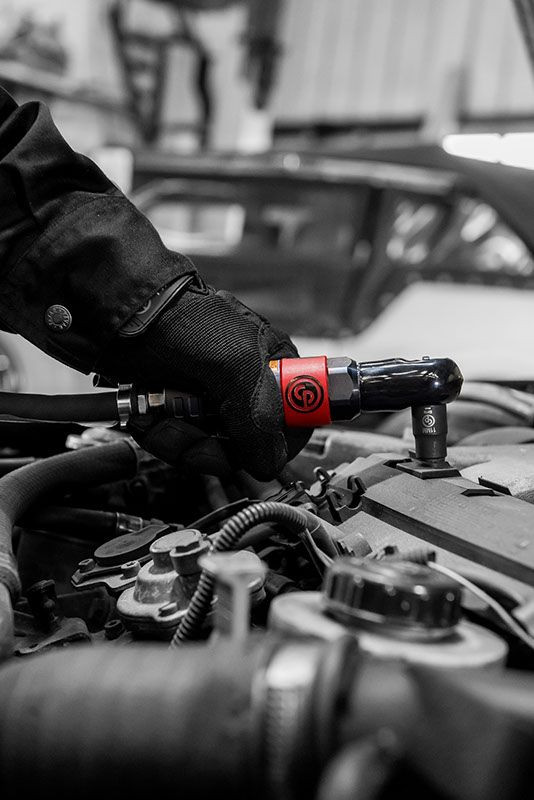

Built for fastening applications where high power and compact access are both important, the Chicago Pneumatic CP9427 Ultra Compact Ratchet Wrench combines a 3/8" square output drive, 270 RPM free speed, and 25.8 ft-lbs maximum reverse torque. Its extremely compact 5.04" overall length provides improved access in hard-to-reach areas while the 3/8" output drive accommodates compatible sockets.
The CP9427 shares the same high-power, ultra-compact configuration as the CP9426 and adds a 3/8" output drive with socket release button. The catalog specifies a 5.2–7 ft-lbs reverse working torque range, 1.08 lb net weight, and 11 CFM air consumption at load, making this ratchet suitable for compact maintenance and fastening applications where access is limited.
Type: Ultra Compact Ratchet Wrench | Model: CP9427 | Part Number: 6151919427 | Drive: 3/8" Square | Free Speed: 270 RPM | Working Torque: 5.2–7 ft-lbs | Max Reverse Torque: 25.8 ft-lbs | Overall Length: 5.04" | Net Weight: 1.08 lb | Air Consumption at Load: 11 CFM | Vibration: 5.6 m/s² | Sound Pressure: 82 dB(A) | Sound Power: 93 dB(A) | Air Inlet: 1/4"
Features:
- High-power output provides up to 25.8 ft-lbs of maximum reverse torque for compatible fastening and removal applications.
- Extremely compact 5.04" overall length enables access in hard-to-reach areas.
- 3/8" square output drive accommodates compatible sockets.
- Socket release button provides the specified socket-release configuration.
- 270 RPM free speed provides the catalog-specified rotational speed.
- 5.2–7 ft-lbs reverse working torque provides the specified operating torque range.
- Lightweight 1.08 lb configuration supports handling in compact work areas.
- 11 CFM air consumption at load provides the catalog-specified air consumption figure.
- 1/4" air inlet provides the specified pneumatic connection.
- 3/8" hose internal diameter is specified for all models at 90 PSI.
Applications:
- Fastening applications in confined areas where an ultra-compact pneumatic ratchet is beneficial.
- General maintenance work requiring a 3/8" square-drive ratchet wrench.
- Assembly and repair applications within the specified reverse working torque range.
- Service applications requiring up to 25.8 ft-lbs of maximum reverse torque in a compact tool configuration.
FAQs:
- Q: What is the maximum torque of the CP9427?
A: The catalog specifies 25.8 ft-lbs maximum reverse torque. - Q: What is the working torque range?
A: The specified reverse working torque range is 5.2–7 ft-lbs. - Q: What size drive does the CP9427 use?
A: It uses a 3/8" square output drive. - Q: Does the CP9427 have a socket release button?
A: Yes. The catalog identifies the CP9427 as having the same features as the CP9426 with a 3/8" output drive and socket release button. - Q: What is the free speed?
A: The specified free speed is 270 RPM. - Q: How long is the CP9427?
A: The specified overall length is 5.04 inches. - Q: How much does the CP9427 weigh?
A: The specified net weight is 1.08 lb. - Q: What is the air inlet size?
A: The specified air inlet is 1/4".
| MODEL | PART NUMBER | DRIVE (IN.) |
FREE SPEED (RPM) |
WORKING TORQUE (REV) | MAX TORQUE (REV) | OVERALL LENGTH | NET WEIGHT | AIR CONS. @ LOAD | VIBRATION (M/S²) |
SOUND PRESSURE dB(A) |
SOUND POWER dB(A) |
AIR INLET (IN.) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-LB | NM | FT-LB | NM | IN. | MM | LB | KG | CFM | L/S | ||||||||
| ModelCP9426 | Part Number6151919426 | Drive (in.)1/4 | Free Speed (RPM)270 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)25.8 | Max Torque REV (Nm)35 | Overall Length (in.)5.04 | Overall Length (mm)128 | Net Weight (lb)1.08 | Net Weight (kg)0.49 | Air Consumption @ Load (CFM)11 | Air Consumption @ Load (l/s)5.6 | Vibration (m/s²)5 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP9427 | Part Number6151919427 | Drive (in.)3/8 | Free Speed (RPM)270 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)25.8 | Max Torque REV (Nm)35 | Overall Length (in.)5.04 | Overall Length (mm)128 | Net Weight (lb)1.08 | Net Weight (kg)0.49 | Air Consumption @ Load (CFM)11 | Air Consumption @ Load (l/s)5.6 | Vibration (m/s²)5 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP825C | Part Number8941082511 | Drive (in.)1/4 | Free Speed (RPM)280 | Working Torque REV (ft-lb)3.7 | Working Torque REV (Nm)5 | Max Torque REV (ft-lb)18.4 | Max Torque REV (Nm)25 | Overall Length (in.)6.65 | Overall Length (mm)169 | Net Weight (lb)1.1 | Net Weight (kg)0.5 | Air Consumption @ Load (CFM)10 | Air Consumption @ Load (l/s)5.1 | Vibration (m/s²)4 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP826 | Part NumberT025074 | Drive (in.)1/4 | Free Speed (RPM)250 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)21 | Max Torque REV (ft-lb)15.5 | Max Torque REV (Nm)21 | Overall Length (in.)7.99 | Overall Length (mm)203 | Net Weight (lb)1.12 | Net Weight (kg)0.51 | Air Consumption @ Load (CFM)14 | Air Consumption @ Load (l/s)6.6 | Vibration (m/s²)2.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
| ModelCP826T | Part NumberT025075 | Drive (in.)3/8 | Free Speed (RPM)250 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)15.5 | Max Torque REV (Nm)21 | Overall Length (in.)7.99 | Overall Length (mm)203 | Net Weight (lb)1.12 | Net Weight (kg)0.51 | Air Consumption @ Load (CFM)14 | Air Consumption @ Load (l/s)6.6 | Vibration (m/s²)2.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
Looking for more information about Chicago Pneumatic Ratchet Wrench? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Ratchet Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Ratchet Wrench
- Drive Size (in.)
- 3/8
- RPM
- 270
- Max Torque Reverse (ft-lbs)
- 25.8
- Air Consumption (CFM)
- 11
- Sound Pressure (dBA)
- 82
- Sound Power (dBA)
- 93
- Air Inlet
- 1/4"
