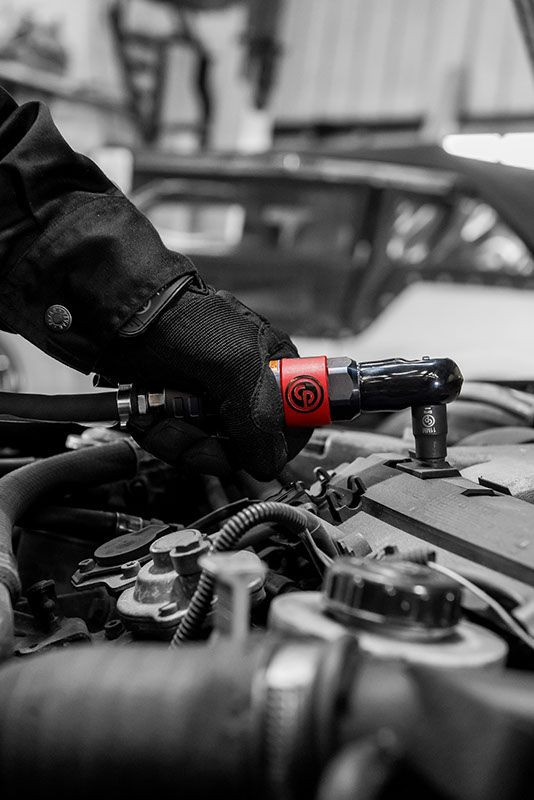

Designed for fastening work in confined areas, the Chicago Pneumatic CP825C Extremely Compact Ratchet Wrench features a 1/4" square drive, 280 RPM free speed, and 18.4 ft-lbs maximum reverse torque. Its ultra-compact 6.65" length and 1.1 lb weight provide the compact configuration specified for improved access in hard-to-reach areas.
The CP825C combines an aluminum body with an insulating composite housing and composite head protective cover. A short, wide teasing lever helps adjust torque, while the back exhaust directs exhaust air away from the work area. The tool also includes a power regulator for adjusting speed from zero to maximum.
Type: Extremely Compact Ratchet Wrench | Model: CP825C | Part Number: 8941082511 | Drive: 1/4" Square | Free Speed: 280 RPM | Working Torque: 3.7–18.4 ft-lbs | Max Reverse Torque: 18.4 ft-lbs | Length: 6.65" | Weight: 1.1 lb | Air Consumption at Load: 10 CFM | Vibration: 4 m/s² | Sound Pressure: 93 dB(A) | Sound Power: 82 dB(A) | Air Inlet: 1/4"
Features:
- Extremely compact 6.65" configuration provides the specified size for access in hard-to-reach areas.
- 1/4" square drive accommodates compatible sockets for small fastening applications.
- 280 RPM free speed provides the catalog-specified rotational speed.
- 3.7–18.4 ft-lbs working torque covers the specified reverse working torque range.
- 18.4 ft-lbs maximum reverse torque provides the catalog-specified maximum torque.
- Aluminum body provides the specified body construction.
- Insulating composite housing and composite head protective cover are supplied with the tool.
- Short and wide teasing lever provides torque adjustment control.
- Back exhaust directs exhaust air away from the immediate work area.
- Power regulator allows speed adjustment from zero to maximum.
- 1/4" air inlet provides the specified compressed-air connection.
- 3/8" hose internal diameter is specified for the CP825C at 90 PSI.
Applications:
- General maintenance applications requiring an extremely compact 1/4" pneumatic ratchet.
- Fastening work in hard-to-reach areas where a short tool configuration is beneficial.
- Automotive maintenance applications involving compatible small fasteners.
- Assembly and repair work requiring up to 18.4 ft-lbs of reverse torque.
FAQs:
- Q: What is the maximum torque of the CP825C?
A: The catalog specifies 18.4 ft-lbs maximum reverse torque. - Q: What is the working torque range?
A: The specified working torque range is 3.7–18.4 ft-lbs. - Q: What size drive does the CP825C use?
A: It uses a 1/4" square drive. - Q: What is the free speed?
A: The specified free speed is 280 RPM. - Q: How long is the CP825C?
A: The catalog lists an overall length of 6.65 inches. - Q: How much does the CP825C weigh?
A: The specified net weight is 1.1 lb. - Q: What air inlet size is specified?
A: The CP825C has a 1/4" air inlet.
| MODEL | PART NUMBER | DRIVE (IN.) |
FREE SPEED (RPM) |
WORKING TORQUE (REV) | MAX TORQUE (REV) | OVERALL LENGTH | NET WEIGHT | AIR CONS. @ LOAD | VIBRATION (M/S²) |
SOUND PRESSURE dB(A) |
SOUND POWER dB(A) |
AIR INLET (IN.) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-LB | NM | FT-LB | NM | IN. | MM | LB | KG | CFM | L/S | ||||||||
| ModelCP9426 | Part Number6151919426 | Drive (in.)1/4 | Free Speed (RPM)270 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)25.8 | Max Torque REV (Nm)35 | Overall Length (in.)5.04 | Overall Length (mm)128 | Net Weight (lb)1.08 | Net Weight (kg)0.49 | Air Consumption @ Load (CFM)11 | Air Consumption @ Load (l/s)5.6 | Vibration (m/s²)5 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP9427 | Part Number6151919427 | Drive (in.)3/8 | Free Speed (RPM)270 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)25.8 | Max Torque REV (Nm)35 | Overall Length (in.)5.04 | Overall Length (mm)128 | Net Weight (lb)1.08 | Net Weight (kg)0.49 | Air Consumption @ Load (CFM)11 | Air Consumption @ Load (l/s)5.6 | Vibration (m/s²)5 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP825C | Part Number8941082511 | Drive (in.)1/4 | Free Speed (RPM)280 | Working Torque REV (ft-lb)3.7 | Working Torque REV (Nm)5 | Max Torque REV (ft-lb)18.4 | Max Torque REV (Nm)25 | Overall Length (in.)6.65 | Overall Length (mm)169 | Net Weight (lb)1.1 | Net Weight (kg)0.5 | Air Consumption @ Load (CFM)10 | Air Consumption @ Load (l/s)5.1 | Vibration (m/s²)4 | Sound Pressure dB(A)82 | Sound Power dB(A)93 | Air Inlet (in.)1/4 |
| ModelCP826 | Part NumberT025074 | Drive (in.)1/4 | Free Speed (RPM)250 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)21 | Max Torque REV (ft-lb)15.5 | Max Torque REV (Nm)21 | Overall Length (in.)7.99 | Overall Length (mm)203 | Net Weight (lb)1.12 | Net Weight (kg)0.51 | Air Consumption @ Load (CFM)14 | Air Consumption @ Load (l/s)6.6 | Vibration (m/s²)2.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
| ModelCP826T | Part NumberT025075 | Drive (in.)3/8 | Free Speed (RPM)250 | Working Torque REV (ft-lb)5.2 | Working Torque REV (Nm)7 | Max Torque REV (ft-lb)15.5 | Max Torque REV (Nm)21 | Overall Length (in.)7.99 | Overall Length (mm)203 | Net Weight (lb)1.12 | Net Weight (kg)0.51 | Air Consumption @ Load (CFM)14 | Air Consumption @ Load (l/s)6.6 | Vibration (m/s²)2.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
Looking for more information about Chicago Pneumatic Ratchet Wrench? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Ratchet Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Ratchet Wrench
- Drive Size (in.)
- 1/4
- RPM
- 280
- Max Torque Reverse (ft-lbs)
- 18.4
- Air Consumption (CFM)
- 10
- Sound Pressure (dBA)
- 82
- Sound Power (dBA)
- 93
- Air Inlet
- 1/4"
