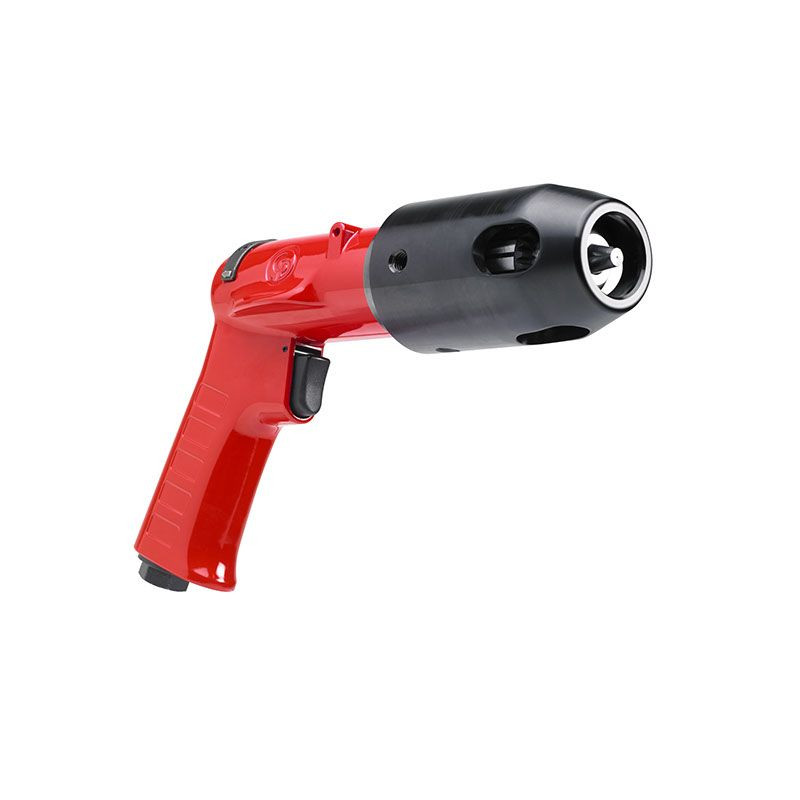

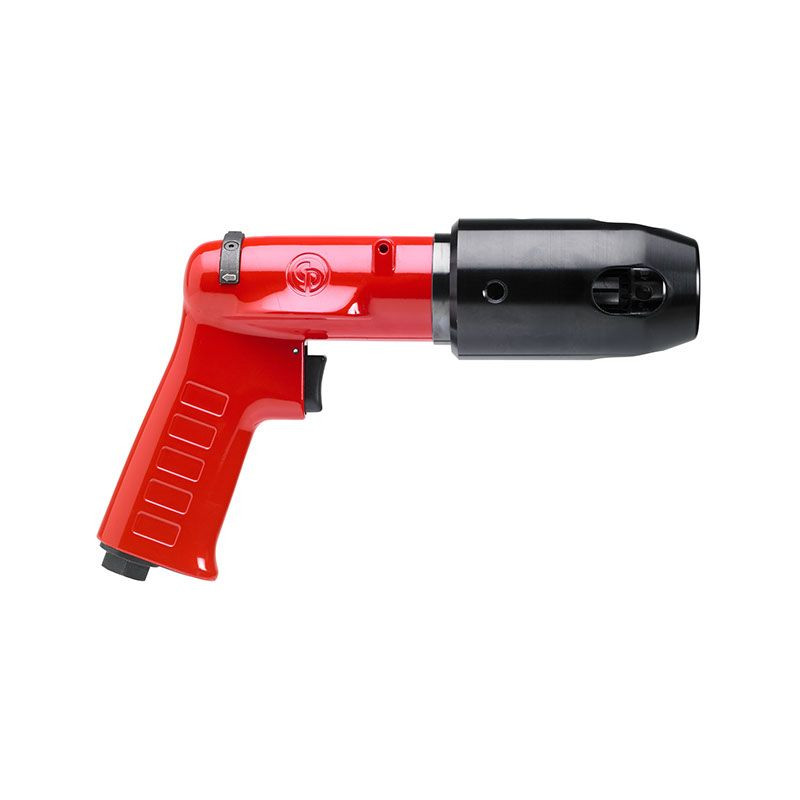

Chicago Pneumatic Reversible Pistol Grip Air Drill | CP1114R26 ATEX | 2600 RPM | 3/8" Chuck

Built for faster drilling in classified work areas, the Chicago Pneumatic CP1114R26 ATEX reversible pistol grip drill delivers 2600 RPM free speed for controlled hole-making with smaller drill bits. Its 3/8" / 10 mm keyed Jacobs industrial chuck holds common drill bits securely for drilling, reaming, and light tapping work, while the 0.55 HP / 410 W pneumatic motor provides steady power for maintenance and production tasks. ATEX refers to equipment intended for use in potentially explosive atmospheres, and this model adds a protected chuck to help reduce spark risk by preventing chuck contact with surrounding objects.

The CP1114R26 ATEX is the higher-speed ATEX model in the CP1114R pistol drill range, offering more drilling pace than the 500 RPM ATEX version while keeping the forward-reverse function needed for backing out bits and clearing holes. Chicago Pneumatic lists the CP1114R ATEX range as certified EX II 2 G and Ex h IIB T6 Gb X and approved for work in Zone 2 gas and Zone 22 dust areas. A progressive teasing trigger gives gradual speed control, while the compact CP Ergo Wing body, low-vibration gearbox, built-in silencer, and side-handle support help operators manage repeated drilling tasks in oil and gas, petrochemical, mining, and industrial MRO environments.

Type: ATEX Reversible Pistol Grip Pneumatic Drill | Model: CP1114R26 ATEX | SKU: 6151580390 | Free Speed: 2600 RPM | Max Power: 0.55 HP / 410 W | Chuck Capacity: 3/8" / 10 mm | Chuck Type: Keyed Jacobs Industrial Chuck | Stall Torque: 4.1 ft-lbf / 5.5 Nm | ATEX Marking: EX II 2 G and Ex h IIB T6 Gb X | Approved Areas Listed by CP: Zone 2 Gas and Zone 22 Dust | Air Consumption at Load: 25 CFM / 12 l/s | Air Consumption at Free Speed: 31 CFM / 15 l/s | Air Inlet: 1/4" NPT | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 0.38" / 10 mm | Length: 9.68" / 245.9 mm | Height: 5.97" / 151.7 mm | Width: 2.26" / 57.4 mm | Weight: 3.53 lb / 1.6 kg | Sound Pressure: 84 dB(A) | Sound Power: 95 dB(A) | Vibration Level: 2.1 m/s² / 6.9 ft/s² | Vibration Uncertainty K: 1.2 m/s² / 3.9 ft/s² | Main Material: Aluminum | Handle Type: Pistol | Reversible: Yes | Starting System: Trigger | Trigger Type: Progressive

Features:

• ATEX configuration supports drilling, tapping, and reaming operations in approved potentially explosive atmospheres.
• Protected chuck helps reduce the risk of sparks by preventing the chuck from contacting nearby objects during use.
• 2600 RPM free speed gives this model faster drilling performance than the 500 RPM ATEX version for smaller-hole work.
• 0.5 hp class pneumatic motor provides controlled power through the teasing throttle handle.
• Jacobs industrial keyed chuck supports accurate drilling with 3/8" / 10 mm chuck capacity.
• Forward-reverse switch helps with bit extraction, hole clearing, reaming, and light tapping operations.
• Compact CP Ergo Wing body helps align the wrist and tool for improved force transmission during repeated drilling.
• Strong and precise gearbox, built-in silencer, and low-vibration construction help improve handling in daily industrial use.

Applications:

• Oil and gas maintenance: drilling panels, guards, brackets, and repair components where ATEX-rated pneumatic tools are required by site procedure.
• Petrochemical facilities: controlled drilling, reaming, and bit extraction in areas where spark-risk reduction is a key tool-selection factor.
• Mining operations: air-powered drilling for maintenance crews working around equipment, frames, covers, and field-repair hardware.
• Industrial maintenance and MRO: repeated hole-making and repair work on production equipment, fixtures, and plant infrastructure.
• Metal fabrication in classified areas: drilling aluminum, steel, and stainless steel with a 3/8" keyed chuck and progressive speed control.

FAQs:

• Q: What makes the CP1114R26 ATEX different from the standard CP1114R26?
  A: The CP1114R26 ATEX includes the ATEX configuration and protected chuck used for approved potentially explosive atmospheres. The standard CP1114R26 has the same 2600 RPM speed and 3/8" chuck category, but it is not the ATEX model.
• Q: What does the ATEX marking mean for this drill?
  A: Chicago Pneumatic lists the CP1114R ATEX range as certified EX II 2 G and Ex h IIB T6 Gb X. The manufacturer states that this range is approved for jobs in Zone 2 gas and Zone 22 dust areas; always verify the final tool selection against your site safety requirements.
• Q: When should I choose the 2600 RPM ATEX model instead of the 500 RPM ATEX model?
  A: Choose the CP1114R26 ATEX when the job calls for faster drilling with smaller bits. Choose the 500 RPM CP1114R05 ATEX when slower speed, higher stall torque, or larger 1/2" chuck capacity is more important.
• Q: What air supply does the CP1114R26 ATEX need?
  A: Chicago Pneumatic lists 25 CFM / 12 l/s air consumption at load and 31 CFM / 15 l/s at free speed. Use an air system capable of maintaining 90 PSI / 6.3 bar at the tool through a minimum 0.38" / 10 mm hose.
• Q: Can this drill be used for tapping?
  A: Yes, Chicago Pneumatic lists drilling, tapping, and reaming as applications for the ATEX range. Use the correct tap size, lubricant, speed control, and site-approved procedures for the material and classified area.
