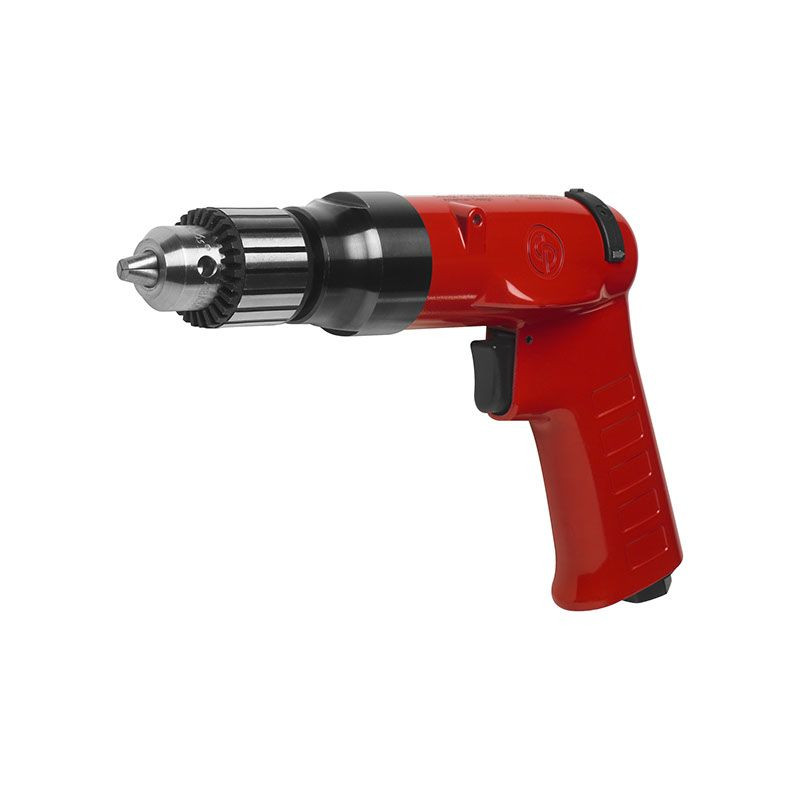

Chicago Pneumatic Reversible Pistol Grip Air Drill | CP1114R26 | 2600 RPM | 3/8" Chuck

Built for faster drilling in production, fabrication, and maintenance environments, the Chicago Pneumatic CP1114R26 reversible pistol grip drill delivers 2600 RPM free speed for quick hole-making with smaller drill bits and general-purpose metalworking tasks. Its 3/8" / 10 mm keyed chuck gives the operator secure bit retention for shop drilling, while the 0.54 HP / 400 W pneumatic motor provides steady output for repeated use on aluminum, steel, stainless steel, and common industrial materials. Compared with the lower-speed CP1114R05 and CP1114R09 models, this version trades stall torque for higher speed, making it a better fit when drilling pace and clean starts are the priority.

The CP1114R26 uses a pistol grip body for straight-line drilling control and includes forward-reverse operation for backing out bits, clearing holes, and supporting light reaming or tapping work. Its progressive trigger, also called a teasing throttle, lets the operator bring the bit up to speed gradually instead of starting abruptly. The compact CP Ergo Wings body, aluminum construction, low-vibration gearbox, and built-in silencer help keep the tool manageable during repetitive drilling across plant floors, repair benches, fabrication stations, and vehicle service areas.

Type: Reversible Pistol Grip Pneumatic Drill | Model: CP1114R26 | SKU: 6151580330 | Free Speed: 2600 RPM | Max Power: 0.54 HP / 400 W | Chuck Capacity: 3/8" / 10 mm | Chuck Type: Keyed | Handle Type: Pistol | Main Material: Aluminum | Reversible: Yes | Starting System: Trigger | Trigger Type: Progressive | Stall Torque: 4.1 ft-lbf / 5.5 Nm | Air Consumption at Load: 25 CFM / 12 l/s | Air Consumption at Free Speed: 31 CFM / 15 l/s | Air Inlet: 1/4" NPT | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 0.38" / 10 mm | Length: 8.86" / 225 mm | Weight: 2.87 lb / 1.3 kg | Sound Pressure: 82 dB(A) | Sound Power: 93 dB(A) | Vibration Level: 2.1 m/s² / 6.9 ft/s² | Vibration Uncertainty K: 1.2 m/s² / 3.9 ft/s²

Features:

• 2600 RPM free speed supports faster drilling with smaller bits compared with lower-speed drill models in the CP1114R range.
• 0.54 HP / 400 W pneumatic motor provides steady drilling power for maintenance, fabrication, and production use.
• 3/8" keyed chuck secures common drill bits for metalworking, assembly, and repair applications.
• Forward-reverse switch helps the operator back out drill bits, clear holes, and work through light reaming or tapping operations.
• Progressive teasing throttle gives controlled starts for better bit placement and reduced walking at the beginning of a hole.
• Compact CP Ergo Wings body supports improved hand positioning and force transfer during repeated drilling tasks.
• Low-vibration gearbox helps reduce vibration exposure during aggressive drilling cycles.
• Built-in silencer helps lower operating noise in shop and plant environments.

Applications:

• Production assembly: repeated drilling of smaller holes where a higher-speed pneumatic drill helps keep work moving.
• Industrial maintenance and MRO: drilling panels, brackets, guards, and fixtures during repair or installation work.
• Metal fabrication: hole-making in aluminum, steel, and stainless steel when a 3/8" chuck and 2600 RPM speed are appropriate for the bit size.
• Vehicle service and fleet repair: drilling sheet metal, brackets, body panels, and accessory mounts in air-equipped shops.
• Workshop and garage use: general drilling tasks for users with a compressor capable of maintaining the required air flow and pressure.

FAQs:

• Q: What is the main advantage of the CP1114R26 over the slower CP1114R models?
  A: The CP1114R26 runs at 2600 RPM, so it is better suited for faster drilling with smaller bits. The 500 RPM and 900 RPM versions offer more low-speed control and higher stall torque for larger holes, tapping, and tougher drilling loads.
• Q: What chuck size does the CP1114R26 use?
  A: This model uses a 3/8" / 10 mm keyed chuck. A keyed chuck tightens with a chuck key, helping hold the bit securely during drilling compared with light-duty hand-tightened chucks.
• Q: Is the CP1114R26 reversible?
  A: Yes. The forward-reverse switch allows the drill to run in both directions, which helps when backing a bit out of the workpiece, clearing chips, or performing light tapping and reaming tasks.
• Q: How much air does this drill require?
  A: Chicago Pneumatic lists air consumption at 25 CFM under load and 31 CFM at free speed. The tool should be supplied with 90 PSI / 6.3 bar dynamic air pressure through a minimum 0.38" / 10 mm hose.
• Q: Should I choose the CP1114R26 for large drill bits?
  A: Use the CP1114R26 when speed is more important than maximum torque and when the bit shank fits its 3/8" chuck. For larger bits or slower controlled drilling, a 1/2" chuck model such as the CP1114R05 or CP1114R09 may be the better match.
