Chicago Pneumatic

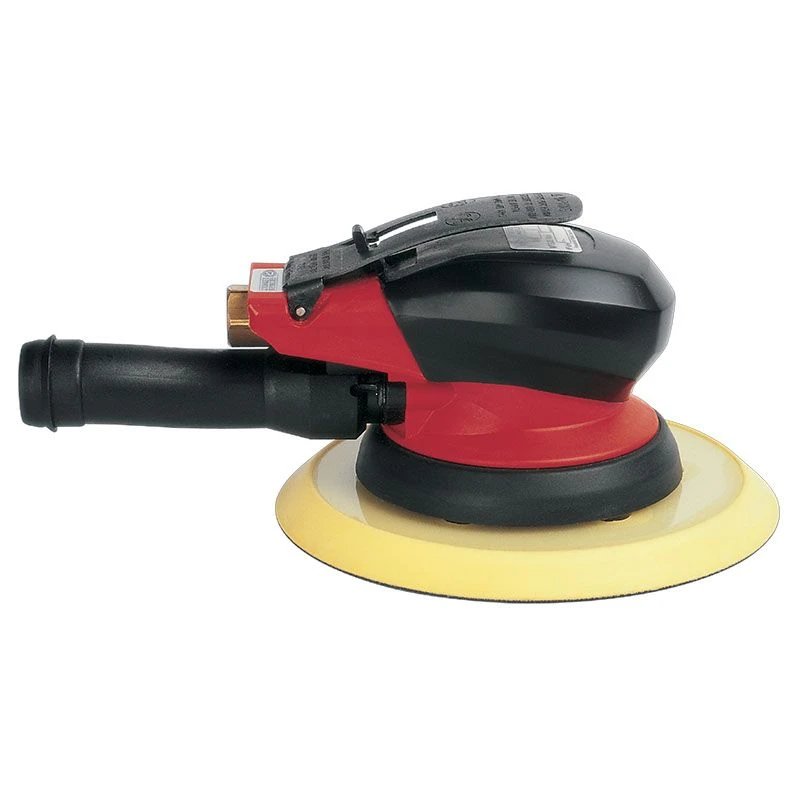

Chicago Pneumatic Random Orbital Sander | CP5314-60SV | 12000 RPM | 6" PSA Pad | 3/8" Orbit

(0 review)
Status: Available to order
Product code: 6151704640-CP
UPC: 15451674250
Condition: New
Weight: 3.3100 LBS
Shipping: Calculated at Checkout
$821.56
$663.83
(You save $157.73 )
Adding to cart… The item has been added


Built for 6" disc sanding with onboard dust collection, the Chicago Pneumatic CP5314-60SV Random Orbital Sander combines a 6" PSA pad format with a compact palm-style body for surface prep, filler shaping, and coating preparation. Its 12,000 RPM free speed keeps the abrasive moving quickly across panels, primer, body filler, coatings, and metal surfaces, while the manufacturer technical data lists a 7/16" / 11 mm orbit for faster material removal than smaller fine-finish orbit sanders.

This CP53 Series model is supplied in a self-vacuum configuration, meaning the sander is set up for tool-based dust extraction rather than a central vacuum line. The 0.3 hp / 210 W oil-free motor helps reduce the risk of oil contamination during sanding, which matters when preparing parts for paint, coating, bonding, or finishing. With its 6" circular pad, larger orbit, and dust-managed layout, the CP5314-60SV fits body shops, fabrication areas, maintenance departments, and production finishing stations that need efficient surface preparation with less loose sanding dust than a non-vacuum tool.

Type: Random Orbital Sander | Series: CP53 | Model: CP5314-60SV | SKU: 6151704640 | Free Speed: 12,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 6" / 150 mm | Pad Shape: Circular | Pad Type: PSA | Orbit Size: 7/16" / 11 mm | Vacuum Type: Self Vacuum | Pad Holes: 0 | Spindle Thread: 5/8-24 UNF | Air Consumption at Load: 17 CFM / 8 l/s | Net Weight: 1.76 lb / 0.8 kg | Length: 7.3" / 186 mm | Height: 3.26" / 83 mm | Vibration: 6.5 m/s² | Sound Pressure: 85 dB(A) | Sound Power: 96 dB(A) | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 1/4" / 6 mm | Air Pressure: 90 PSI / 6.3 bar

Features:

  • 6" circular PSA pad format supports adhesive-backed sanding discs for panel work, filler shaping, and general surface preparation.
  • Self-vacuum configuration helps collect sanding dust through the tool's dust extraction setup without requiring a central vacuum system.
  • 7/16" orbit provides faster cutting action for leveling, blending, and material removal on suitable surfaces.
  • 12,000 RPM free speed supports efficient sanding, finishing, and pre-polishing operations.
  • 0.3 hp / 210 W oil-free motor helps protect surface preparation work from oil contamination.
  • Palm-shaped soft grip gives the user better control when sanding flat panels, contours, and repair areas.
  • Integrated motor silencer helps reduce operating noise during repeated sanding tasks.
  • Manufacturer-listed low-maintenance design supports up to 2,000 operating hours in shop and production environments.

IMPORTANT: Use only sanding discs, pads, and abrasive accessories compatible with the tool, pad size, spindle thread, attachment style, and operating speed. Never use damaged abrasives. Always wear appropriate eye, face, respiratory, hearing, and body protection when sanding.

Applications:

  • Autobody and collision repair: shaping body filler, feathering repair edges, sanding primer, and preparing 6" panel areas before refinishing.
  • Paint and coating preparation: leveling surfaces, removing light imperfections, and preparing parts for primer, paint, powder coating, or bonding.
  • Metal fabrication: blending surface marks, cleaning up flat areas, and preparing steel or aluminum components before finishing.
  • Industrial maintenance and MRO: sanding guards, machine covers, access panels, and repaired parts during repaint or refurbishment work.
  • General shop finishing: dust-managed random orbital sanding where a larger orbit and 6" disc help cover more surface area efficiently.

FAQs:

  • Q: What does self-vacuum mean on the CP5314-60SV?
    A: Self-vacuum means the tool is configured for dust extraction through its own vacuum setup rather than a central shop vacuum line. It helps manage sanding dust better than a non-vacuum model when used with the correct dust collection components.
  • Q: What does PSA pad mean?
    A: PSA stands for pressure-sensitive adhesive. PSA sanding discs have an adhesive backing that sticks directly to the pad instead of using a hook-and-loop attachment surface.
  • Q: What is the benefit of the 7/16" orbit?
    A: A 7/16" orbit produces a larger sanding pattern for faster material removal than smaller fine-finish orbits. It is useful for filler shaping, surface leveling, and preparation work, but the final finish still depends on abrasive grit, pressure, material, and technique.
  • Q: How is this different from the CP5314-60?
    A: The CP5314-60SV is the self-vacuum version, while the CP5314-60 is the non-vacuum version. Choose the self-vacuum model when dust management is needed and a central vacuum system is not being used.
  • Q: What air supply does this sander require?
    A: The manufacturer lists 17 CFM / 8 l/s air consumption at load with 90 PSI / 6.3 bar operating pressure. Use a regulated air system and hose setup that can support the tool during sustained sanding.
Model Part Number Free Speed
rpm
Power Pad Capacity Pad Type Vac Spindle Thread
in.
Air Consumption @ Load Net Weight Vibration Level
ISO 28927
a (m/s²)
Sound
ISO 15744 — dB(A)
Air Inlet
in.
hp W in. mm cfm l/s lb kg Pressure Power
ModelCP5303-R5SV Part Number6151702350 Free Speed (rpm)10,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)3" × 5" Pad Capacity (mm)80 × 130 Pad TypeRectangular VacSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)17 Air Consumption @ Load (l/s)8 Net Weight (lb)2.2 Net Weight (kg)1 Vibration ISO 28927 — a (m/s²)<2.5 Sound Pressure ISO 15744 (dB(A))73 Sound Power ISO 15744 (dB(A))84 Air Inlet (in.)1/4
ModelCP5303-R5CV Part Number6151702370 Free Speed (rpm)10,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)3" × 5" Pad Capacity (mm)80 × 130 Pad TypeRectangular VacCentral vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)17 Air Consumption @ Load (l/s)8 Net Weight (lb)2.2 Net Weight (kg)1 Vibration ISO 28927 — a (m/s²)<2.5 Sound Pressure ISO 15744 (dB(A))73 Sound Power ISO 15744 (dB(A))84 Air Inlet (in.)1/4
ModelCP5303-R5 Part Number6151702330 Free Speed (rpm)10,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)3" × 5" Pad Capacity (mm)80 × 130 Pad TypeRectangular VacNon vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)17 Air Consumption @ Load (l/s)8 Net Weight (lb)2.2 Net Weight (kg)1 Vibration ISO 28927 — a (m/s²)<2.5 Sound Pressure ISO 15744 (dB(A))73 Sound Power ISO 15744 (dB(A))84 Air Inlet (in.)1/4
ModelCP5318-30H Part Number6151703320 Free Speed (rpm)12,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)3 Pad Capacity (mm)76 Pad TypeCircular VacNon vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)23 Air Consumption @ Load (l/s)11 Net Weight (lb)2.65 Net Weight (kg)1.2 Vibration ISO 28927 — a (m/s²)8.3 Sound Pressure ISO 15744 (dB(A))76 Sound Power ISO 15744 (dB(A))87 Air Inlet (in.)1/4
ModelCP5314-60SV Part Number6151704640 Free Speed (rpm)12,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)6 Pad Capacity (mm)150 Pad TypeCircular VacSelf vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)17 Air Consumption @ Load (l/s)8 Net Weight (lb)1.76 Net Weight (kg)0.8 Vibration ISO 28927 — a (m/s²)6.5 Sound Pressure ISO 15744 (dB(A))85 Sound Power ISO 15744 (dB(A))96 Air Inlet (in.)1/4
ModelCP5314-60 Part Number6151704620 Free Speed (rpm)12,000 Power (hp)0.3 Power (W)210 Pad Capacity (in.)6 Pad Capacity (mm)150 Pad TypeCircular VacNon vacuum Spindle Thread (in.)5/8-24 UNF Air Consumption @ Load (cfm)17 Air Consumption @ Load (l/s)8 Net Weight (lb)1.76 Net Weight (kg)0.8 Vibration ISO 28927 — a (m/s²)5 Sound Pressure ISO 15744 (dB(A))76 Sound Power ISO 15744 (dB(A))87 Air Inlet (in.)1/4

All models: hose internal diameter 3/8" (10 mm). Specifications at 90 PSI (6.3 bar).

industrial-tools-parts-breakdown.pngLooking for more information about Chicago Pneumatic Orbital Sander? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com

Type
Orbital Sander
RPM
12000
Power (hp)
0.3
Pad Size (in.)
6
Pad Type
Circular
Vacuum Type
Self-vacuum
Spindle Thread (in.)
5/8-24 UNF
Air Consumption (CFM)
17
Air Consumption (l/s)
8
Sound Power (dBA)
85
Sound Pressure (dBA)
96
Air Inlet
1/4"
One year warranty against manufacturer's defects
