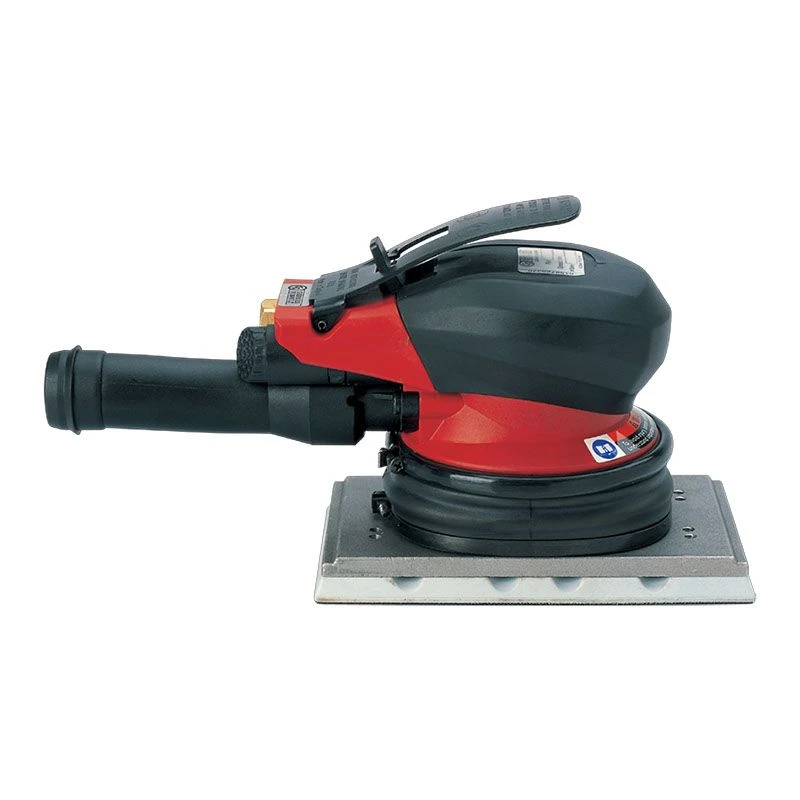

Chicago Pneumatic Orbital Sander | CP5303-R5CV | 10000 RPM | 3"x5" PSA Pad | 3/32" Orbit

Built for dust-controlled rectangular-pad sanding, the Chicago Pneumatic CP5303-R5CV Orbital Sander combines a compact palm-grip body with a 3" x 5" PSA pad for adhesive-backed abrasive sheets used on flat panels, narrow surfaces, and detail areas. Its 10,000 RPM free speed supports consistent sanding action during surface preparation, while the 3/32" orbit creates a fine sanding pattern for smoother pre-paint, pre-coating, and finishing work.

This CP53 Series model is supplied in a central vacuum configuration, meaning it is made to connect with an external dust extraction system for cleaner sanding in production, autobody, woodworking, and maintenance environments. The 0.3 hp / 210 W lubrication-free motor helps protect the work surface from oil contamination, which is especially important when preparing parts for paint, adhesives, coatings, or final finish operations.

Type: Orbital Sander | Series: CP53 | Model: CP5303-R5CV | SKU: 6151702370 | Free Speed: 10,000 RPM | Power: 0.3 hp / 210 W | Pad Size: 3" x 5" / 80 x 130 mm | Pad Shape: Rectangular | Pad Type: PSA | Orbit Size: 3/32" / 2.4 mm | Vacuum Type: Central Vacuum | Pad Holes: 0 | Spindle Thread: 5/8-24 UNF | Air Consumption at Load: 17 CFM / 8 l/s | Net Weight: 2.2 lb / 1 kg | Length: 5.24" / 133 mm | Height: 3.94" / 100 mm | Vibration: <2.5 m/s² | Sound Pressure: 73 dB(A) | Sound Power: 84 dB(A) | Air Inlet: 1/4" NPT | Air Pressure: 90 PSI / 6.3 bar

Features:

• 3" x 5" rectangular PSA pad format supports adhesive-backed sanding sheets for controlled finishing on flat and narrow surfaces.
• Central vacuum configuration connects to an external dust extraction system for cleaner sanding than non-vacuum models.
• 3/32" orbit produces a fine sanding pattern for smoother surface preparation before paint, coating, bonding, or finish work.
• 0.3 hp / 210 W motor provides efficient sanding performance in a compact pneumatic palm sander.
• Lubrication-free motor helps reduce oil contamination risk during finish-sensitive sanding operations.
• Palm-shaped soft grip improves control during panel sanding, edge blending, and detail work.
• Integrated motor silencer helps reduce operating noise during repeated sanding tasks.
• Manufacturer-listed low-maintenance design supports up to 2,000 operating hours in shop and production use.

IMPORTANT: Use only sanding sheets and abrasive accessories compatible with the tool, pad size, attachment style, and operating speed. Never use damaged abrasives. Always wear appropriate eye, face, respiratory, and body protection when sanding.

Applications:

• Autobody and paint preparation: sanding primer, feathering repair edges, and preparing rectangular panel areas before refinishing.
• Industrial finishing lines: dust-controlled sanding of parts, panels, covers, and components before coating or assembly.
• Woodworking and cabinet shops: sanding rails, stiles, trim pieces, and flat stock where a rectangular pad fits the workpiece shape.
• Metal fabrication: smoothing light marks, blending small flat areas, and preparing surfaces for paint or protective coating.
• Maintenance and MRO departments: cleaning up machine guards, access panels, and equipment surfaces during repair or repaint work.

FAQs:

• Q: What does central vacuum mean on the CP5303-R5CV?
  A: Central vacuum means the sander is configured to connect to an external dust extraction system. This is different from a self-vacuum model, which uses its own dust collection setup, and a non-vacuum model, which does not provide built-in dust extraction.
• Q: What does PSA pad mean?
  A: PSA stands for pressure-sensitive adhesive. PSA sanding sheets have an adhesive backing that sticks directly to the pad instead of attaching with a hook-and-loop surface.
• Q: What is the benefit of the 3/32" orbit?
  A: A 3/32" orbit creates a smaller sanding pattern for finer surface preparation and smoother finish work. Larger orbit sanders remove material faster but usually leave a more visible scratch pattern.
• Q: How is this different from the CP5303-R5SV?
  A: The CP5303-R5CV is the central vacuum version for connection to an external dust extraction system. The CP5303-R5SV is the self-vacuum version, while the CP5303-R5 is the non-vacuum model.
• Q: Why does the lubrication-free motor matter for sanding?
  A: A lubrication-free motor helps reduce the chance of oil reaching the work surface. That is useful when sanding before paint, coatings, adhesive bonding, or finish-sensitive assembly work.
