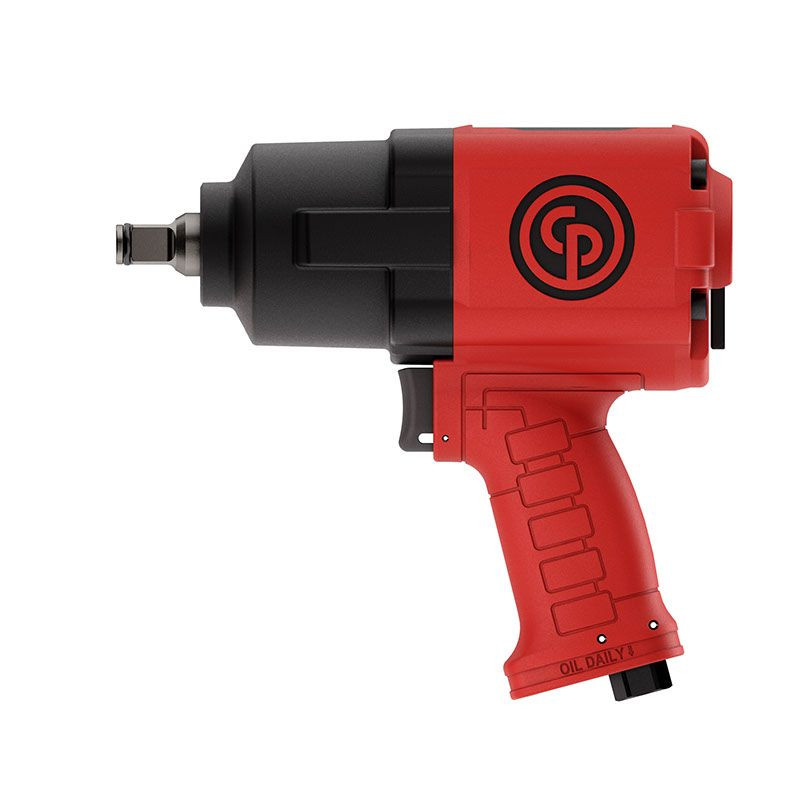

Built for general maintenance and fastening applications, the Chicago Pneumatic CP7741 Pneumatic Impact Wrench combines a 1/2" square drive with a 10,000 RPM free speed and 715 ft-lbs maximum reverse torque. Its twin hammer impact mechanism provides the specified impact configuration, while the composite housing helps reduce heat transfer between the motor and handle.
The CP7741 delivers a 120–690 ft-lbs forward working torque range and is designed around operator comfort, with a lightweight composite construction and compact 7.64" overall length. The manufacturer specifically notes that the CP7741 weighs 2.25 kg (4.96 lb) and is 15% lighter than its former version.
Type: Pneumatic Impact Wrench | Model: CP7741 | Part Number: 8941077410 | Drive: 1/2" Square | Impact Mechanism: Twin Hammer | Free Speed: 10,000 RPM | Working Torque: 120–690 ft-lbs | Max Torque: 715 ft-lbs | Weight: 4.96 lb | Length: 7.64" | Vibration Level: 8.5 m/s² | Vibration K: 2.7 m/s² | Sound Pressure: 93 dB(A) | Sound Power: 104 dB(A) | Air Inlet: 1/4"
Features:
- Twin hammer impact mechanism provides the specified impact configuration for fastening applications.
- 1/2" square drive accommodates compatible impact sockets.
- 10,000 RPM free speed provides the catalog-specified rotational speed.
- 120–690 ft-lbs forward working torque provides the specified tightening range.
- 715 ft-lbs maximum reverse torque provides the specified maximum torque for fastener removal.
- Composite housing helps reduce heat transfer between the motor and handle.
- At 2.25 kg, the CP7741 is specified as 15% lighter than its former version for improved operator comfort.
- Compact 7.64" length provides the manufacturer's specified overall tool dimension.
Applications:
- General maintenance — tightening and removing compatible nuts and bolts with a 1/2" pneumatic impact wrench.
- Automotive service — fastening and removal applications where the specified 120–690 ft-lbs working torque range is appropriate.
- Industrial maintenance and MRO — routine fastening work requiring a compact twin hammer impact wrench.
- Workshop service — applications requiring the combination of a 1/2" drive, 10,000 RPM free speed, and 715 ft-lbs maximum reverse torque.
FAQs:
- Q: What is the maximum torque of the CP7741?
A: The manufacturer specifies 715 ft-lbs maximum reverse torque. - Q: What is the working torque range?
A: The CP7741 has a specified forward working torque range of 120–690 ft-lbs. - Q: What size drive does the CP7741 use?
A: It uses a 1/2" square drive. - Q: What is the free speed?
A: The specified free speed is 10,000 RPM. - Q: What impact mechanism does the CP7741 use?
A: It uses a twin hammer impact mechanism. - Q: How much does the CP7741 weigh?
A: The catalog lists a net weight of 4.96 lb, or 2.25 kg. - Q: What is the air inlet size?
A: The manufacturer specifies a 1/4" air inlet.
| MODEL | PART NUMBER | DRIVE (IN.) |
IMPACT MECHANISM | BLOWS PER MINUTE | FREE SPEED (RPM) |
WORKING TORQUE (FW) | MAX TORQUE (REV) | NET WEIGHT | LENGTH | AIR CONS. @ LOAD | VIBRATION LEVEL ISO 28927 | SOUND PRESS. dB(A) |
SOUND POWER dB(A) |
AIR INLET (IN.) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FT-LB | NM | FT-LB | NM | LB | KG | IN. | MM | CFM | L/S | A (M/S²) | K (M/S²) | |||||||||
| ModelCP7739 | Part Number8941077390 | Drive (in.)1/2 | Impact MechanismTwin hammer | Blows Per Minute1700 | Free Speed (RPM)9900 | Working Torque FW (ft-lb)50.2–305 | Working Torque FW (Nm)68–414 | Max Torque REV (ft-lb)450 | Max Torque REV (Nm)610 | Net Weight (lb)2.65 | Net Weight (kg)1.2 | Length (in.)6.42 | Length (mm)163 | Air Consumption @ Load (CFM)20 | Air Consumption @ Load (l/s)9.4 | Vibration Level a (m/s²)6.9 | Vibration Level k (m/s²)2.5 | Sound Pressure dB(A)92 | Sound Power dB(A)103 | Air Inlet (in.)1/4 |
| ModelCP749 | Part NumberT024587 | Drive (in.)1/2 | Impact MechanismTwin hammer | Blows Per Minute1320 | Free Speed (RPM)6400 | Working Torque FW (ft-lb)50.2–450 | Working Torque FW (Nm)68–610 | Max Torque REV (ft-lb)610 | Max Torque REV (Nm)827 | Net Weight (lb)5.51 | Net Weight (kg)2.5 | Length (in.)7.01 | Length (mm)178 | Air Consumption @ Load (CFM)22 | Air Consumption @ Load (l/s)10.4 | Vibration Level a (m/s²)6.2 | Vibration Level k (m/s²)2 | Sound Pressure dB(A)96 | Sound Power dB(A)107 | Air Inlet (in.)1/4 |
| ModelCP7741 | Part Number8941077410 | Drive (in.)1/2 | Impact MechanismTwin hammer | Blows Per Minute— | Free Speed (RPM)10000 | Working Torque FW (ft-lb)88.5–509 | Working Torque FW (Nm)120–690 | Max Torque REV (ft-lb)715 | Max Torque REV (Nm)970 | Net Weight (lb)4.96 | Net Weight (kg)2.25 | Length (in.)7.64 | Length (mm)194 | Air Consumption @ Load (CFM)— | Air Consumption @ Load (l/s)— | Vibration Level a (m/s²)8.5 | Vibration Level k (m/s²)2.7 | Sound Pressure dB(A)93 | Sound Power dB(A)104 | Air Inlet (in.)1/4 |
| ModelCP7741-2 | Part Number8941077412 | Drive (in.)1/2 | Impact MechanismTwin hammer | Blows Per Minute— | Free Speed (RPM)10000 | Working Torque FW (ft-lb)88.5–509 | Working Torque FW (Nm)120–690 | Max Torque REV (ft-lb)715 | Max Torque REV (Nm)970 | Net Weight (lb)5.18 | Net Weight (kg)2.35 | Length (in.)9.65 | Length (mm)245 | Air Consumption @ Load (CFM)— | Air Consumption @ Load (l/s)— | Vibration Level a (m/s²)9.4 | Vibration Level k (m/s²)3.8 | Sound Pressure dB(A)93 | Sound Power dB(A)104 | Air Inlet (in.)1/4 |
| ModelCP7729 | Part Number8941077290 | Drive (in.)3/8 | Impact MechanismTwin hammer | Blows Per Minute1700 | Free Speed (RPM)9400 | Working Torque FW (ft-lb)50.2–300 | Working Torque FW (Nm)68–407 | Max Torque REV (ft-lb)415 | Max Torque REV (Nm)563 | Net Weight (lb)2.76 | Net Weight (kg)1.25 | Length (in.)6.42 | Length (mm)163 | Air Consumption @ Load (CFM)20 | Air Consumption @ Load (l/s)9.4 | Vibration Level a (m/s²)6.4 | Vibration Level k (m/s²)1.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
| ModelCP7729-P | Part Number8941077292 | Drive (in.)3/8 | Impact MechanismTwin hammer | Blows Per Minute1700 | Free Speed (RPM)9400 | Working Torque FW (ft-lb)50.2–300 | Working Torque FW (Nm)68–407 | Max Torque REV (ft-lb)415 | Max Torque REV (Nm)563 | Net Weight (lb)2.76 | Net Weight (kg)1.25 | Length (in.)6.42 | Length (mm)163 | Air Consumption @ Load (CFM)20 | Air Consumption @ Load (l/s)9.4 | Vibration Level a (m/s²)6.4 | Vibration Level k (m/s²)1.9 | Sound Pressure dB(A)91 | Sound Power dB(A)102 | Air Inlet (in.)1/4 |
Looking for more information about Chicago Pneumatic Impact Wrench? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Impact Wrenches for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1/2
- Impact Mecanism
- Twin Hammer
- RPM
- 10000
- Max Torque Reverse (ft-lbs)
- 715
- Sound Level Pressure dB(A)
- 93
- Sound Level Power dB(A)
- 104
- Air Inlet
- 1/4"
