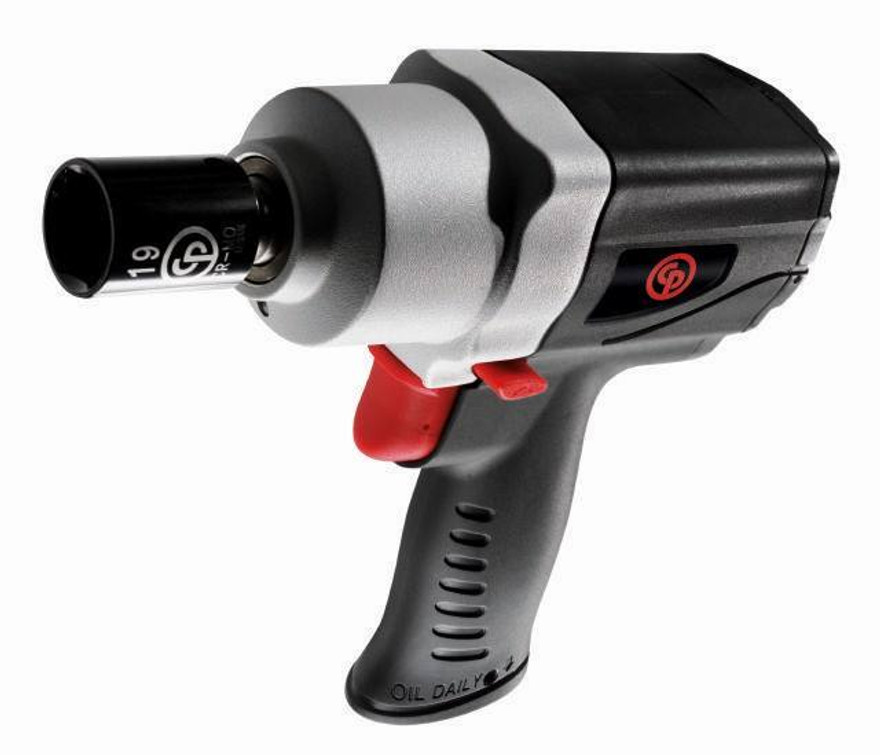

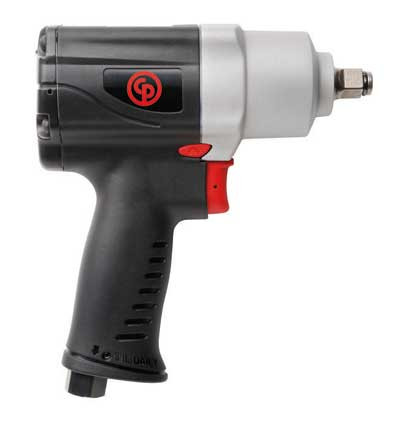

The Chicago Pneumatic CP7739 Impact Wrench comes with 1/2-inch output drive and delivers smooth operation and extended durability, it is a versatile tool ideal for all general repairs and maintenance applications. It features a twin hammer clutch for improved performance and strength. CP7739 is powered by the most convenient and unique forward/reverse technology in the market, the S2S technology and comes with 3 positive power settings. The full teasing trigger, the composite handle and magnesium clutch housing makes CP7739 extremely light and maximizes operator comfort with an ideal and well-balanced design. It delivers up to 450 ft.-lbs (610 Nm). of true torque and weighs only 2.78 lbs.
Type: Impact Wrench | Drive Size (in.): 1/2 | Impact Mecanism: Twin hammer | Blows Per Minute (BPM): 1700 | Free Speed (RPM): 9900 | Working Torque Range (ft-lbs): 50.2-305 | Working Torque Range (fwd) (Nm): 68-414 | Max Reverse Torque (ft-lbs): 450 | Max Reverse Torque (Nm): 610 | Length (in.): 6.42 | Length (mm): 163 | Air Consumption @ Load (CFM): 20 | Air Consumption @ Load (l/s): 9.4 | Vibration Level (a): 6.9 | Vibration Level (k): 2.5 | Sound Pressure (dbA): 92 | Sound Power (dbA): 103 | Air Inlet Size (in.): 1/4 | Min Hose Size (in.): 3/8 | Min Hose Size (mm): 10
Features:
- Mini 1/2" compact impact wrench for general maintenance
- Twin hammer clutch
- Composite handle and magnesium clutch housing
- Curved handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip.
- S2S technology and 3 positive power settings
- Full teasing trigger
Benefits:
- General Maintenance
- Maximize operator comfort with an extremely light & well balanced tool
- Most convenient and unique reverse technology in the market
Looking for more information about Chicago Pneumatic Grinder? Click here to view the Catalog.
For help selecting the correct Chicago Pneumatic Grinders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Impact Wrench
- Drive Size (in.)
- 1/2
- Impact Mechanism
- Twin hammer
- Blows Per Minute (BPM)
- 1700
- RPM
- 9900
- Working Torque Range (ft-lbs)
- 50.2-305
- Working Torque Range (fwd) (nm)
- 68-414
- Max Reverse Torque (ft-lbs)
- 450
- Max Reverse Torque (nm)
- 610
- Length (in.)
- 6.42
- Length (mm)
- 163
- Air Consumption @ Load (CFM)
- 20
- Air Consumption @ Load (l/s)
- 9.4
- Vibration Level (a)
- 6.9
- Vibration Level (k)
- 2.5
- Sound Pressure (dbA)
- 92
- Sound Power (dbA)
- 103
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 3/8
- Min Hose Size (mm)
- 10
