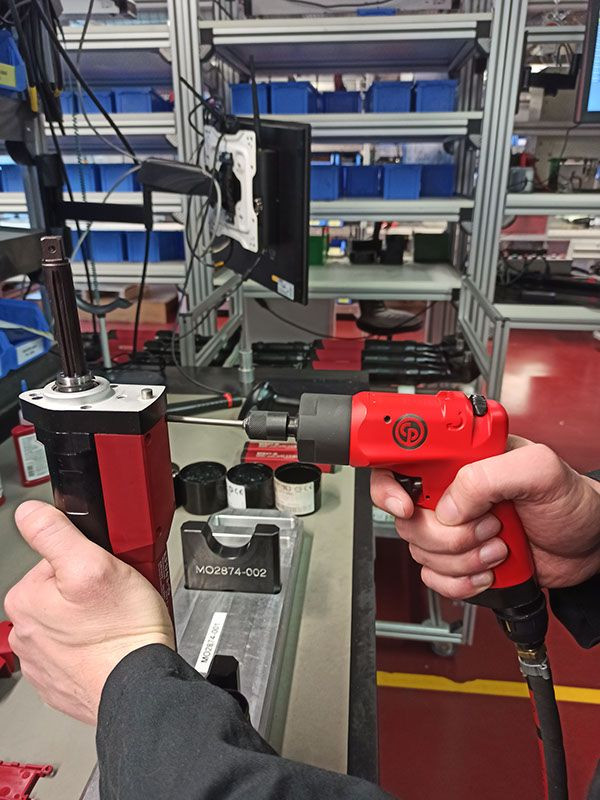

Chicago Pneumatic Direct Drive Pistol Air Screwdriver | CP2810 | 2400 RPM | 3.3 (ft-lbs) Max Torque | 1/4" Hex Drive

Built for fast assembly screwdriving, maintenance fastening, and bench work, the Chicago Pneumatic CP2810 Direct Drive Pistol Air Screwdriver delivers a higher-speed option within the CP28 direct drive range. Its 2,400 RPM free speed supports quick rundown on screws and threaded fasteners, while the 3.3 ft-lbs maximum working torque gives operators controlled tightening capacity for lighter fastening tasks. The 1/4" hex quick-change drive accepts compatible screwdriver bits and bit holders, helping reduce downtime when switching between fastener styles.

The CP2810 uses a direct drive clutch type, meaning torque is delivered directly through the tool rather than through an automatic shut-off clutch. That makes it a straightforward choice for trigger-controlled fastening where speed, bit access, and simple forward/reverse operation are more important than preset torque shut-off. The aluminum body, steel clutch housing, progressive trigger, and one-hand reverse button support repeat shop use while keeping the tool compact at 7.2" long and 1.8 lb.

Type: Direct Drive Pistol Air Screwdriver | Model: CP2810 | SKU: 6151630070 | Series: CP28 Series | Clutch Type: Direct Drive | Torque Control System: None | Max Torque in Forward: 3.3 ft-lbs / 4.5 Nm | Free Speed: 2,400 RPM | Output Drive Size: 1/4" | Output Drive Type: Hex | Output Retainer Type: Quick Change | Handle Type: Pistol | Starting System: Trigger | Reversible: Yes | Air Consumption at Free Speed: 11.9 CFM / 5.6 l/s | Air Inlet: 1/4" BSP | Max Dynamic Air Working Pressure: 90 PSI / 6.3 bar | Minimum Hose Diameter: 5/16" / 8 mm | Body: Aluminum | Clutch Housing: Steel | Length: 7.2" / 183 mm | Height: 6.3" / 160 mm | Width: 1.9" / 49 mm | Weight: 1.8 lb / 0.8 kg | Sound Pressure: 83 dB(A) | Sound Power: 94 dB(A) | Vibration: <2.5 m/s²

Features:

• Direct drive clutch type provides simple trigger-controlled fastening for applications where automatic torque shut-off is not required.
• 2,400 RPM free speed supports faster screw rundown on lighter assembly and maintenance fastening jobs.
• 1/4" hex quick-change output drive allows quick bit changes between screw types and fastening steps.
• Maximum forward torque of 3.3 ft-lbs / 4.5 Nm suits lower-torque screwdriving tasks within the tool’s rated range.
• Progressive trigger helps the operator control startup speed and fastener seating.
• One-hand reverse button allows quick direction changes during installation and removal work.
• Aluminum body and steel clutch housing provide a practical balance of light handling and durability for repeated shop use.

Applications:

• Light industrial assembly - running screws into panels, brackets, covers, and small assemblies at production benches.
• Maintenance and MRO - removing and installing hardware during equipment service, guard removal, and access-panel work.
• Fabrication and fixture work - fastening small components, jigs, and shop-built assemblies where repeat bit changes are common.
• Automotive and fleet service - interior, trim, accessory, and light shop fastening where pneumatic speed is useful.
• Garage and workshop use - repeat screwdriving tasks where a compact air screwdriver is preferred over a manual screwdriver.

FAQs:

• Q: What is the CP2810 best used for?
  A: The CP2810 is best used for faster, lower-torque screwdriving in assembly, maintenance, and shop fastening tasks. Its 2,400 RPM speed helps run screws down quickly, while its 3.3 ft-lbs maximum working torque keeps it suited to lighter fastening work.
• Q: Does the CP2810 have torque shut-off?
  A: No. Manufacturer data lists the torque control system as none. For applications that require repeatable torque shut-off, choose a shut-off clutch screwdriver matched to the target torque range.
• Q: What is the difference between the CP2810 and CP2811?
  A: The CP2810 is faster at 2,400 RPM and lower in torque at 3.3 ft-lbs, making it better for quicker light fastening. The CP2811 is slower at 750 RPM and higher in torque at 8.9 ft-lbs, which suits more controlled fastening on larger fasteners.
• Q: What bits fit this air screwdriver?
  A: The CP2810 uses a 1/4" hex quick-change output drive. Use compatible 1/4" hex screwdriver bits, bit holders, or adapters rated for pneumatic screwdriver use.
• Q: What air supply does the CP2810 require?
  A: Chicago Pneumatic specifies 90 PSI / 6.3 bar maximum dynamic working pressure, a 1/4" BSP air inlet, and a minimum 5/16" / 8 mm hose diameter for a 16 ft / 5 m hose length.

Looking for more information about Chicago Pneumatic Screwdriver? Click here to view the Catalog.

For help selecting the correct Chicago Pneumatic Screwdrivers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
