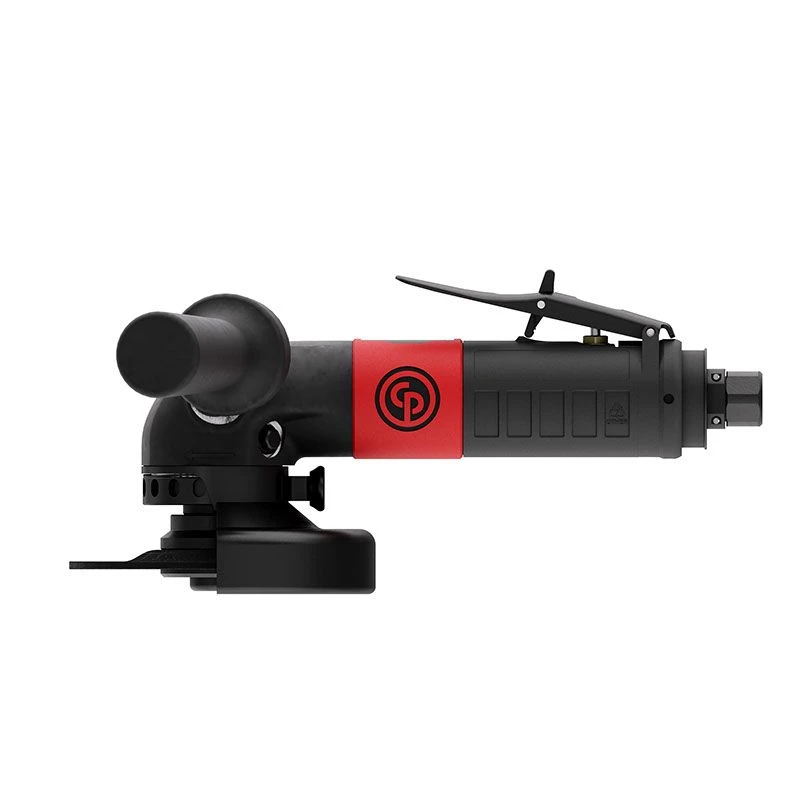

Chicago Pneumatic Angle Grinder | CP3650-120AB45 | 12000 RPM | 4-1/2" Wheel Size

Built for 4-1/2" wheel grinding, cutting, and surface preparation, the Chicago Pneumatic CP3650-120AB45 angle grinder delivers 12,000 RPM free speed for fast work with compatible abrasive wheels. Its 2.4 HP / 1800 W governed pneumatic motor helps maintain wheel speed under load, which matters when removing weld seams, cleaning edges, cutting body panels, or preparing metal surfaces for repair and finishing. The 4-1/2" / 115 mm wheel capacity gives operators a compact wheel size for tighter access than larger 7" grinders, while the 5/8"-11 UNC spindle thread matches common North American grinder wheel hardware when the accessory, guard, and speed rating are correct.

The CP3650-120AB45 is part of Chicago Pneumatic's CP3650 Series, built for productive pneumatic grinding with safety-focused handling features. The keyless pull-and-turn swiveling guard allows quick guard repositioning as the grinding or cutting angle changes, while the spindle lock button helps speed up abrasive disc changes. A steel swiveling air inlet helps reduce hose drag around fixtures and workpieces, and the aluminum body with composite over-sleeve gives the operator a manageable grip surface during repeated grinding, cutting, and surface preparation work.

Type: Angle Grinder | Series: CP3650 | Model: CP3650-120AB45 | SKU: 6151607840 | Free Speed: 12,000 RPM | Power: 2.4 HP / 1800 W | Max Wheel Capacity: 4-1/2" / 115 mm | Spindle Thread: 5/8"-11 UNC | Auto Balancer: No | Air Consumption at Free Speed: 37.3 CFM / 17.6 l/s | Air Consumption at Load: 63.1 CFM / 29.8 l/s | Air Inlet: 3/8" BSP | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 1/2" / 13 mm | Length: 9.74" / 247.5 mm | Height: 4.02" / 102 mm | Width: 5.12" / 130 mm | Side to Center: 1.34" / 34 mm | Weight: 4.85 lb / 2.2 kg | Sound Pressure: 90 dB(A) | Sound Power: 101 dB(A) | Vibration Level: 7.0 m/s² | Vibration Uncertainty K: 2.1 m/s² | Guard Rotation: 360° | Guard Positions: 15 | Guard Type: Keyless Pull and Turn | Main Material: Aluminum with Composite Over-Sleeve | Spindle Lock: Yes | Starting System: Safety Lever

Features:

• 12,000 RPM free speed supports fast grinding and cutting with compatible 4-1/2" abrasive wheels.
• 2.4 HP / 1800 W governed motor helps maintain productive wheel speed during surface preparation, weld cleanup, and cutting tasks.
• 4-1/2" / 115 mm wheel capacity provides a compact abrasive format for access around panels, brackets, frames, and fabricated parts.
• 5/8"-11 UNC spindle thread supports compatible wheel hardware when the correct guard and accessory are selected.
• Keyless pull-and-turn swiveling guard offers 360° rotation with 15 guard positions for faster guard adjustment.
• Spindle lock button allows faster abrasive disc changes and helps reduce downtime between grinding or cutting operations.
• Steel swiveling air inlet helps reduce hose pull while the tool is moved around workpieces and fixtures.
• Aluminum body with composite over-sleeve provides a durable tool housing with a more manageable grip surface.

Applications:

• Metal fabrication: grinding weld seams, cleaning cut edges, removing burrs, and preparing steel or aluminum parts for finishing.
• Body shop and vehicle repair: cutting panels, cleaning brackets, grinding repair sections, and preparing metal before refinishing.
• Industrial maintenance and MRO: surface cleanup, rust removal, wheel-based cutting, and repair work on guards, covers, fixtures, and plant hardware.
• Frame and equipment service: grinding mounts, supports, tabs, and repair components where a compact 4-1/2" wheel is preferred.
• Workshop and field service: pneumatic grinding and cutting for users with a compressor system capable of supporting the tool's air demand.

FAQs:

• Q: What wheels can be used with the CP3650-120AB45?
  A: Use compatible 4-1/2" / 115 mm grinding or cutting wheels that match the 5/8"-11 UNC spindle setup, guard configuration, and work application. The wheel's maximum operating speed must equal or exceed the grinder's 12,000 RPM free speed.
• Q: What air supply does this angle grinder require?
  A: Chicago Pneumatic lists 63.1 CFM / 29.8 l/s air consumption at load and 37.3 CFM / 17.6 l/s at free speed. Use a compressed-air system that can maintain 90 PSI / 6.3 bar at the tool through a minimum 1/2" / 13 mm hose.
• Q: How is the CP3650-120AB45 different from a 7" angle grinder?
  A: The CP3650-120AB45 uses a 4-1/2" wheel, making it more compact for tighter access and smaller grinding or cutting paths. A 7" grinder covers more surface area per pass but requires more space around the workpiece.
• Q: What does the keyless swiveling guard do?
  A: The keyless pull-and-turn guard lets the operator reposition the guard without a separate tool. This helps keep the guard aligned correctly as the tool angle changes during grinding or cutting.
• Q: Does this model have an auto balancer?
  A: No. The CP3650-120AB45 is listed without an auto balancer. For applications where lower vibration is a priority, compare it with CP3650 variants that include an auto balancer.
