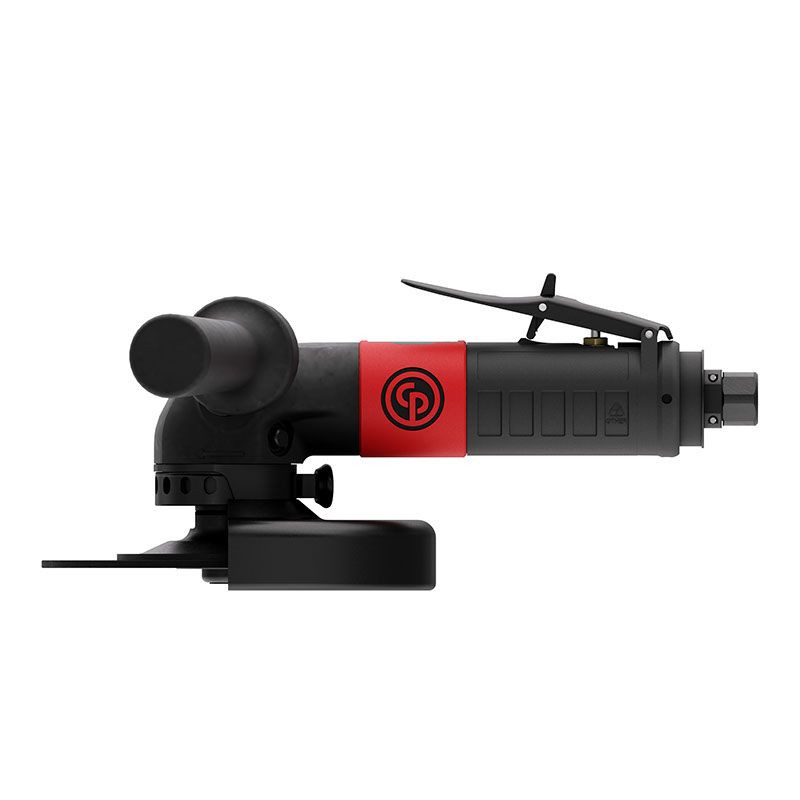

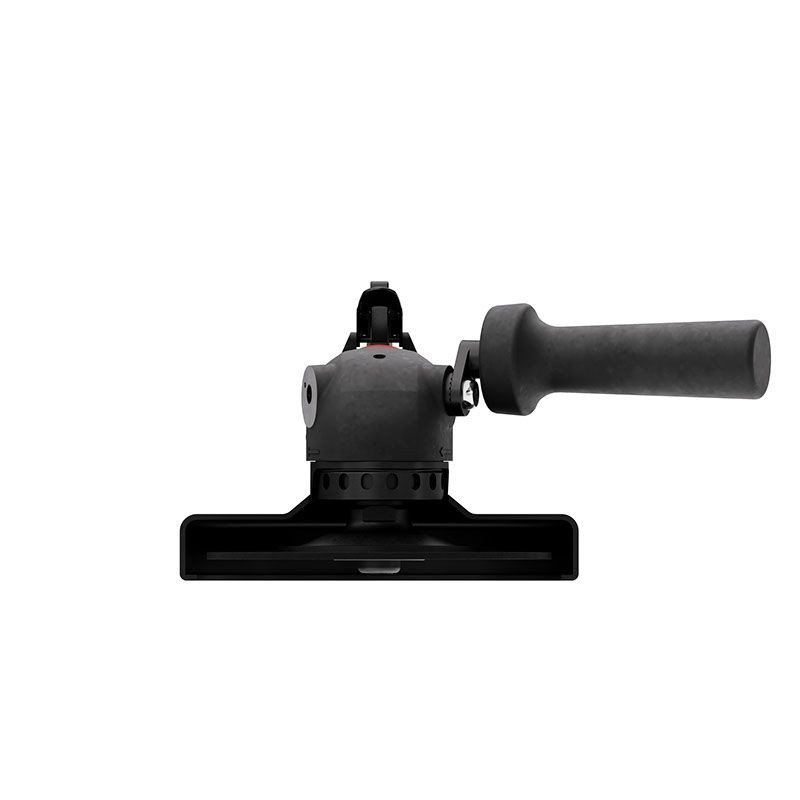

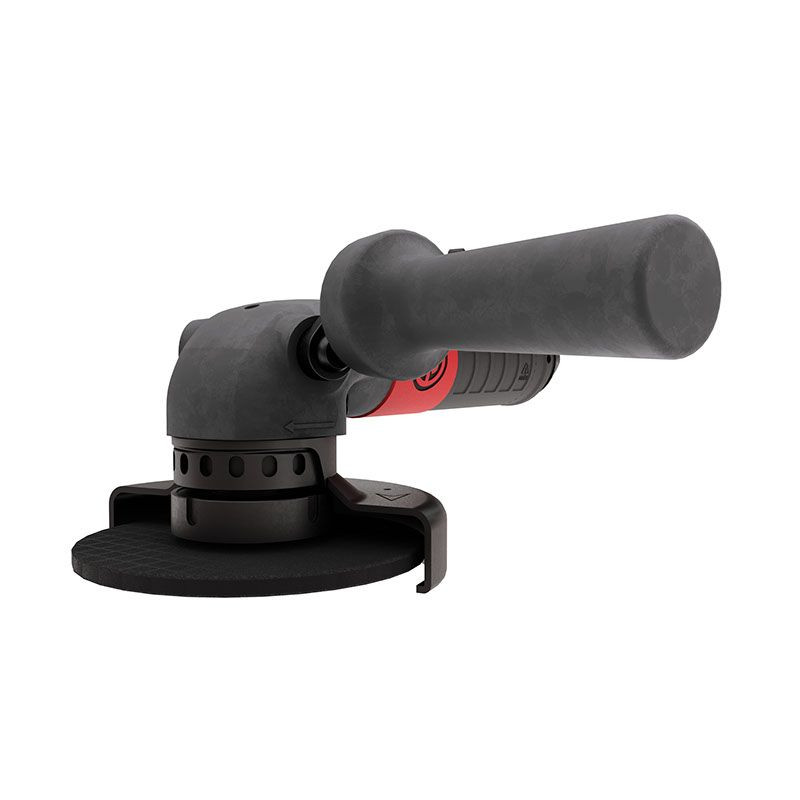

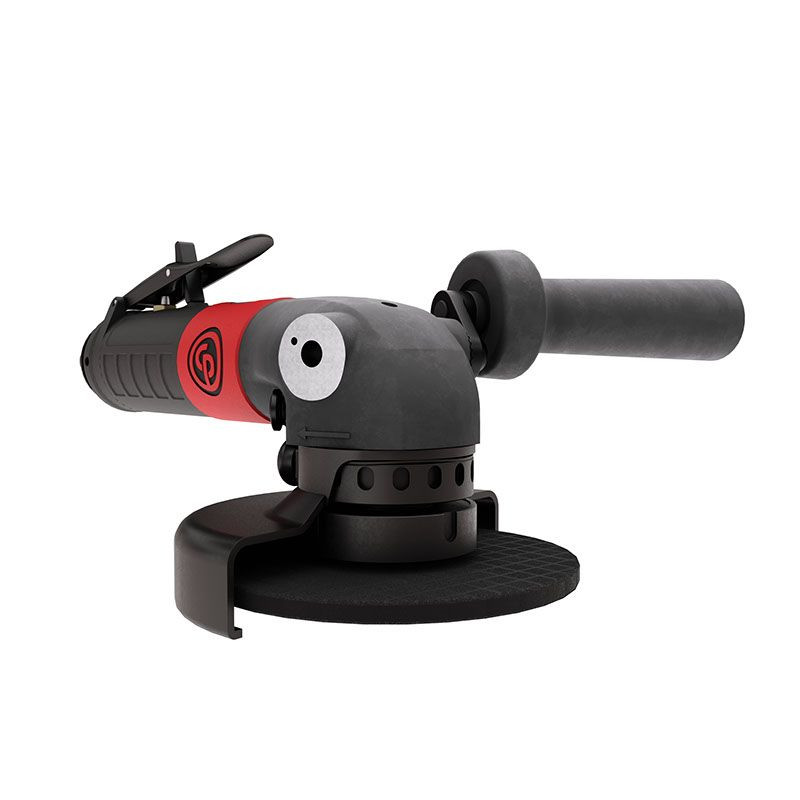

Chicago Pneumatic Angle Grinder | CP3650-100AB6 | 10000 RPM | 6" Wheel Size

Built for 6" wheel grinding, cutting, and metal surface preparation, the Chicago Pneumatic CP3650-100AB6 Angle Grinder delivers 10,000 RPM free speed for controlled work with properly rated abrasive wheels. Its 2.27 HP / 1695 W governed pneumatic motor helps maintain wheel speed under load, which matters when removing weld seams, cutting repair sections, cleaning edges, or preparing metal before finishing. The 6" / 150 mm wheel capacity gives users more coverage than 4-1/2" and 5" grinders while remaining more maneuverable than larger 7" wheel models. A 5/8"-11 UNC spindle thread supports common North American grinder wheel hardware when the selected wheel, guard, and speed rating match the job.

The CP3650-100AB6 is part of Chicago Pneumatic's CP3650 Series, built for productive pneumatic grinding and cutting with safety-focused handling features. The keyless pull-and-turn swiveling guard offers 360° rotation with indexed guard positions, helping the operator reposition the guard as the work angle changes. A spindle lock button supports faster abrasive disc changes, while the steel swiveling air inlet helps reduce hose pull around frames, weldments, fixtures, and workpieces. The aluminum body with composite over-sleeve gives the tool a manageable grip surface during repeated grinding, cutting, and surface preparation work.

Type: Angle Grinder | Series: CP3650 | Model: CP3650-100AB6 | SKU: 6151607890 | Free Speed: 10,000 RPM | Power: 2.27 HP / 1695 W | Max Wheel Capacity: 6" / 150 mm | Spindle Thread: 5/8"-11 UNC | Auto Balancer: No | Air Consumption at Free Speed: 27.5 CFM / 13.0 l/s | Air Consumption at Load: 55.3 CFM / 26.1 l/s | Air Inlet: 3/8" BSP | Working Pressure: 90 PSI / 6.3 bar | Min. Hose Diameter: 1/2" / 13 mm | Length: 9.74" / 247.5 mm | Height: 4.06" / 103 mm | Width: 6.81" / 173 mm | Side to Center: 1.34" / 34 mm | Weight: 5.07 lb / 2.3 kg | Sound Pressure: 89 dB(A) | Sound Power: 100 dB(A) | Vibration Level: 5.9 m/s² | Vibration Uncertainty K: 1.6 m/s² | Guard Rotation: 360° | Guard Positions: 15 | Guard Type: Keyless Pull and Turn | Main Material: Aluminum with Composite Over-Sleeve | Spindle Lock: Yes | Starting System: Safety Lever

Features:

• 10,000 RPM free speed supports controlled grinding and cutting with compatible 6" abrasive wheels.
• 2.27 HP / 1695 W governed motor helps maintain productive wheel speed during weld cleanup, edge grinding, cutting, and surface preparation.
• 6" / 150 mm wheel capacity provides more coverage than smaller grinder formats while preserving better handling than larger 7" tools.
• 5/8"-11 UNC spindle thread supports compatible wheel hardware when the correct guard and abrasive accessory are selected.
• Keyless pull-and-turn swiveling guard offers 360° rotation with 15 guard positions for faster guard adjustment.
• Spindle lock button helps reduce abrasive disc change time between cutting, grinding, and cleanup operations.
• Steel swiveling air inlet helps reduce hose drag while the tool is moved around workpieces, fixtures, and frames.
• Protective rubber on the angle head housing and composite over-sleeve help support daily use in grinding and repair environments.

Applications:

• Metal fabrication: grinding weld seams, cleaning cut edges, removing burrs, and preparing steel or aluminum parts before finishing.
• Industrial maintenance and MRO: rust removal, wheel-based cutting, surface cleanup, and repair work on guards, covers, fixtures, and plant hardware.
• Frame and equipment service: grinding supports, tabs, brackets, repair plates, and structural components where a 6" wheel is appropriate.
• Body shop and vehicle repair: cutting panels, cleaning brackets, grinding repair sections, and preparing metal surfaces before refinishing.
• Workshop and field service: pneumatic grinding and cutting for users with a compressor system capable of supporting the tool's air demand.

FAQs:

• Q: What wheels can be used with the CP3650-100AB6?
  A: Use compatible 6" / 150 mm grinding or cutting wheels that match the 5/8"-11 UNC spindle setup, guard configuration, and work application. The wheel's maximum operating speed must equal or exceed the grinder's 10,000 RPM free speed.
• Q: How is the CP3650-100AB6 different from the 5" CP3650 models?
  A: The CP3650-100AB6 uses a larger 6" wheel and runs at 10,000 RPM. The 5" CP3650 models run at 12,000 RPM and are more compact, while the 6" model gives more wheel coverage per pass.
• Q: What air supply does this angle grinder require?
  A: Chicago Pneumatic lists 55.3 CFM / 26.1 l/s air consumption at load and 27.5 CFM / 13.0 l/s at free speed. Use a compressed-air system that can maintain 90 PSI / 6.3 bar at the tool through a minimum 1/2" / 13 mm hose.
• Q: Does this model include an auto balancer?
  A: No. The CP3650-100AB6 is listed without an auto balancer. For applications where reduced vibration is a major selection factor, compare it with CP3650 variants that include the auto-balancer feature.
• Q: What does the keyless guard do?
  A: The keyless pull-and-turn guard lets the operator reposition the guard without a separate tool. This helps keep the guard aligned correctly as the grinding or cutting angle changes around frames, panels, weldments, and fixtures.
