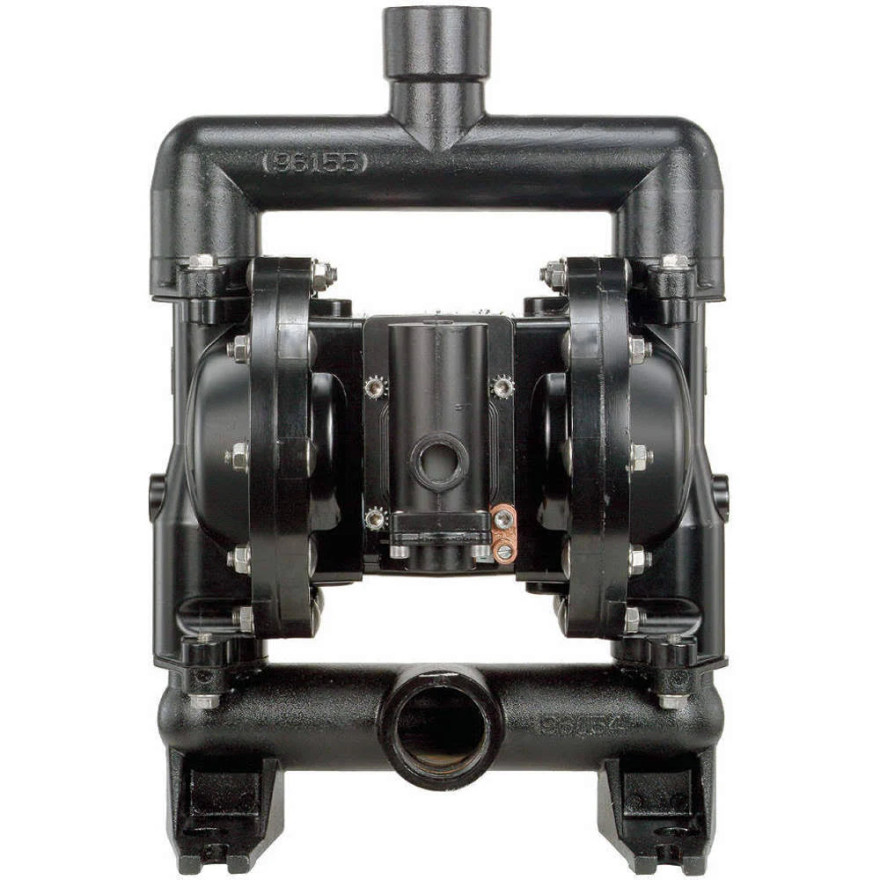

ARO PW10A-AAS-FGG Standard Specialty Pump | 1" PW Series | 60 Maximum GPM | Nitrile Ball Material

ARO Diaphragm Pumps are engineered to be simple and smart, resulting in efficient operation, high performance, and low maintenance. PW10A-AAS-FGG Air Operated Diaphragm Pump is a truly versatile fluid handling solution for numerous applications, practically compatible with any automation system in the industry. PW10A-AAS-FGG Diaphragm Pump has a distinctive ARO Quick Dump valve that keeps cold exhaust air out of the air motor, which helps to prevent icing. It also comes with pre-assembled components for hassle-free and error-proof installation and operator comfort. The solenoid actuation allows accurate cycle rate control and provides a more consistent volume per stroke. ARO Expert Series Diaphragm Pumps are known for industry-leading efficiency, reliability, flow rates, and a large range of materials and porting, ensuring consistency in even the most demanding environments.

Maximum GPM (LPM): 60 GPM / 227.1 LPM | Ratio: 1:1 | Air Inlet (Female): 1/2 - 14 N.P.T. | Suspended solids max. dia. in. (mm): 1/8 (3.3) | Fluid Cap/Manifold: Aluminum | Center Section: Aluminum | Seat: Aluminum | Ball: Nitrile | Diaphragm Material: Nitrile

Features:

• Fits Wilden® P4, M4 and T4 pumps or Versa-Matic® E4 pump configurations
• The ARO PW Series offers a dimensional interchange solution to inefficient, leaking pumps
• Bolted Construction eliminates problems associated with leaking band-clamps and reduces maintenance costs
• The Ingersoll Rand / ARO PW10X-X EXP pump has the same footprint as the Wilden® P4, M4 and T4 pumps, plus the Versa-Matic® E4 pumps
• The EXP air motor has exclusive Simul-Shift valve technology for faster pump trip-over and smoother flow. It also features Quick Dump valves; the final answer to pump stalling due to ice build-up
• The Ingersoll Rand / ARO PW10X-X EXP pump matches the fluid inlet / outlet port dimensions of the Wilden P4, M4 and T4 pumps, plus the Versa-matic E4 pumps

Made in USA:

Looking for more information about Ingersoll Rand ARO Diaphragm Pump? Click here to view the Catalog

For help selecting the correct Ingersoll Rand ARO Diaphragm Pump for your assembly application, call (800) 608-5210 or email info@intlairtool.com
