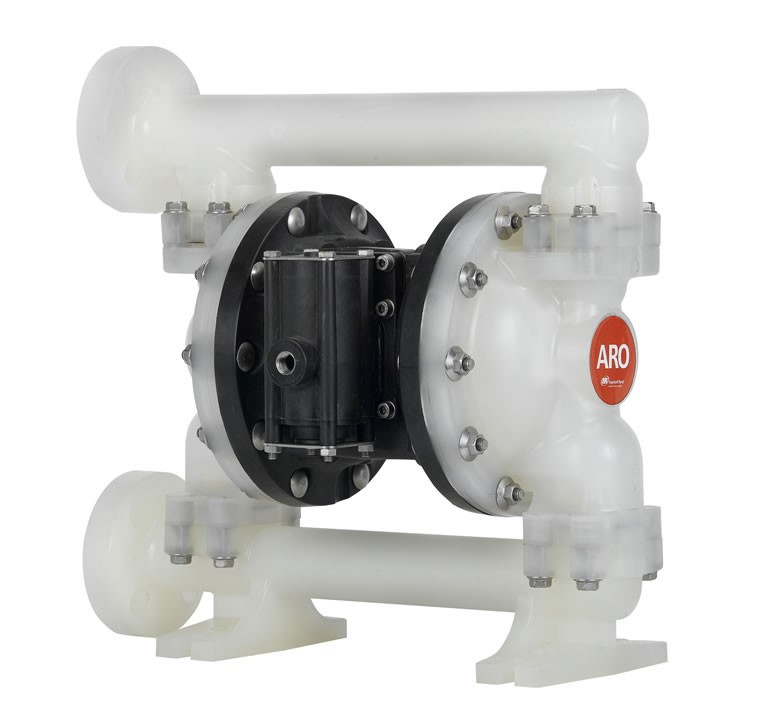

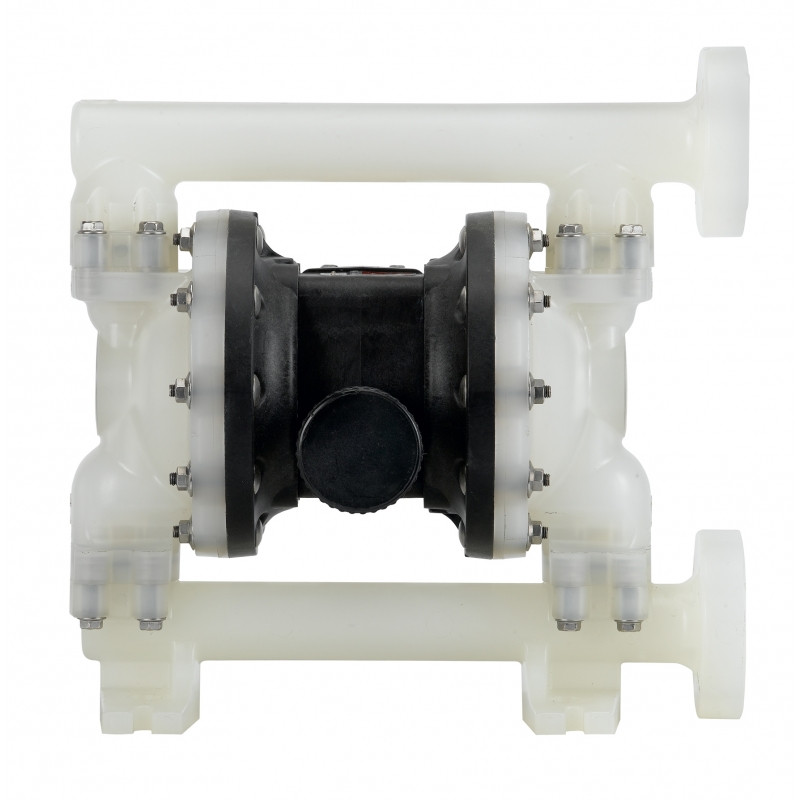

ARO Diaphragm Pumps are engineered to be simple and smart, resulting in efficient operation, high performance, and low maintenance. PD10P-YPS-PTT Air Operated Diaphragm Pump is a truly versatile fluid handling solution for numerous applications, practically compatible with any automation system in the industry. PD10P-YPS-PTT Diaphragm Pump has a distinctive ARO Quick Dump valve that keeps cold exhaust air out of the air motor, which helps to prevent icing. It also comes with pre-assembled components for hassle-free and error-proof installation and operator comfort. The solenoid actuation allows accurate cycle rate control and provides a more consistent volume per stroke. ARO Expert Series Diaphragm Pumps are known for industry-leading efficiency, reliability, flow rates, and a large range of materials and porting, ensuring consistency in even the most demanding environments.
Type: Diaphragm Pump | Max Flow (gpm): 53 | Ratio: 1:1 | Air Inlet NPT (in.): 1/4-18 Female | Suspended Solids Max Diameter (in.): 1/8 | Center Section: Polypropylene | Connections (in.): 1 A.N.S.I./DIN Flange (Center) | Wetted Parts: Polypropylene | Hardware: Stainless Steel | Seat Material: Polypropylene | Ball Material: PTFE | Diaphragm Material: PTFE/Santoprene
Features:
-
Efficiency - Simul-Shift valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Broad range in materials of construction for optimum fluid compatibility
- Environmentally Sound - Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
- Serviceability - Easier service through modular design
Made in USA:
Flow Charts
Looking for more information about Ingersoll Rand ARO Diaphragm Pump? Click here to view the Catalog
For help selecting the correct Ingersoll Rand ARO Diaphragm Pumps for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Diaphragm Pump
- Ratio
- 1:1
- Max Flow Rate (GPM)
- 53
- Displacement Per Cycle (Gallons)
- 0.226
- Air Inlet
- 1/4" Female NPT
- Max Operating Pressure (PSI)
- 120
- Max Operating Pressure (bar)
- 8.3
- Suspended Solids Max Diameter (in.)
- 1/8
- Max Dry Suction Lift (ft.)
- 19
- Sound Level (dbA)
- 79.7
- Center Section
- Polypropylene
- Wetted Parts
- Polypropylene
- Hardware
- Stainless Steel
- Seat Material
- Polypropylene
- Ball Material
- PTFE
- Diaphragm Material
- PTFE / Santoprene
