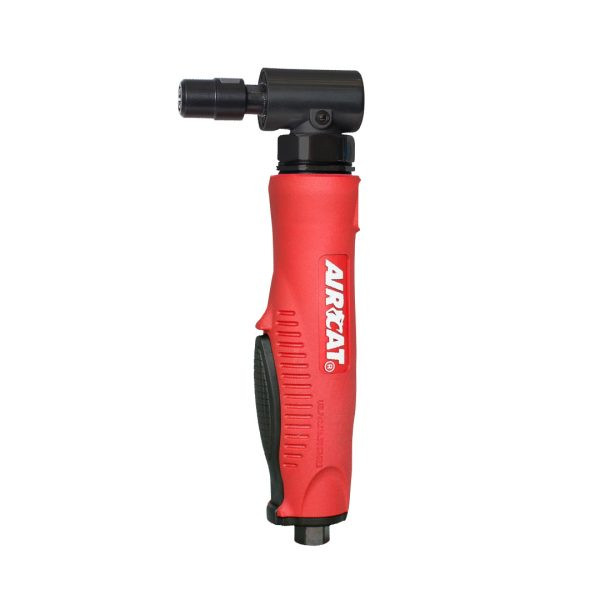

Aircat Pneumatic Tools 6265 Composite Angle Die Grinder | 1 HP | 18000 RPM | 1/4" Collet Size | Rear Exhaust

When right-angle grinding, deburring, and finishing work requires the higher output of a 1 HP tool, the AIRCAT 6265 1/4" Composite Angle Die Grinder gives technicians a powerful pneumatic grinder for controlled material removal in confined or awkward work areas. Its 1.0 HP motor and 18,000 RPM free speed support work with compatible mounted stones, carbide burrs, sanding accessories, and other properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for edge cleanup, burr removal, gasket-surface preparation, casting cleanup, weld-detail blending, smoothing, porting, and general shop finishing.

At 1.80 lbs. and 9.50" long, the 6265 provides a right-angle head layout with enough body length for control during repeated grinding and finishing tasks. The spiral bevel gear design transfers power through the angled head, while the rear exhaust directs air away from the front of the tool and work surface. AIRCAT lists this model with a 1 HP non-stall motor, feather trigger for improved speed control, an ergonomically designed housing and throttle lever, and superior steel grade internal bevel gears for longer service life.

Type: Composite Angle Die Grinder | Model: 6265 | Motor: 1.0 HP | Free Speed: 18,000 RPM | Collet Size: 1/4" | Gears: Spiral Bevel | Exhaust: Rear | Weight: 1.80 lbs. | Length: 9.50" | Air Consumption: 4.2 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT

Features:

• 1.0 HP non-stall motor and 18,000 RPM free speed support grinding, deburring, smoothing, porting, and finishing work.
• 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, sanding accessories, and rotary accessories when accessory speed ratings match the tool.
• Angle-head design helps technicians work in confined areas where a straight die grinder may not align comfortably with the work surface.
• Spiral bevel gearing transfers power through the right-angle head for demanding die grinder applications.
• Superior steel grade internal bevel gears support longer service life during regular shop use.
• Feather trigger provides better speed control during edge cleanup, surface blending, and controlled material removal.
• Ergonomically designed housing and throttle lever support comfortable handling during repeated automotive, fabrication, commercial, and maintenance work.
• Rear exhaust directs air away from the immediate work point to help keep exhaust flow off the grinding area.
• Composite housing helps keep the tool manageable while delivering 1 HP output for higher-load angle die grinder tasks.

Applications:

• Automotive repair: Cleaning edges, removing burrs, preparing gasket surfaces, and performing small-area finishing around engine, brake, exhaust, suspension, and body components.
• Metal fabrication: Blending small weld details, smoothing cut edges, cleaning holes, porting, and touching up metal features after cutting, drilling, or machining.
• Manufacturing maintenance: Finishing fixtures, housings, brackets, panels, guards, and production support components with properly rated 1/4" shank accessories.
• Commercial and shipbuilding work: Supporting detail grinding, edge conditioning, and cleanup where right-angle access helps reach confined or obstructed work areas.
• MRO and equipment service: Removing burrs from mounts, covers, guards, brackets, and compact service components in shop and field maintenance environments.

FAQs:

• Q: What is the AIRCAT 6265 best used for?
  A: The AIRCAT 6265 is best used for grinding, deburring, smoothing, porting, edge cleanup, and finishing where right-angle access and 1 HP output are useful. Common uses include automotive repair, fabrication cleanup, manufacturing work, commercial maintenance, shipbuilding, equipment service, and MRO finishing.
• Q: How is the AIRCAT 6265 different from the AIRCAT 6255?
  A: The AIRCAT 6265 is listed with a 1.0 HP motor, 18,000 RPM free speed, 1.80 lb. weight, and 9.50" length. The AIRCAT 6255 is a lower-output composite angle die grinder listed with a 0.4 HP motor, 20,000 RPM free speed, 1.10 lb. weight, and 7.00" length.
• Q: What accessories can I use with this angle die grinder?
  A: Use compatible mounted stones, carbide burrs, sanding accessories, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 18,000 RPM operation. Always follow the accessory manufacturer’s safety and speed instructions.
• Q: What does spiral bevel gearing mean?
  A: Spiral bevel gearing is a gear arrangement used to transfer power through the right-angle head of the grinder. On the 6265, AIRCAT lists superior steel grade internal bevel gears for longer service life.
• Q: What air hose size should I use with the AIRCAT 6265?
  A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life.
• Q: Should I disconnect the air supply before changing accessories?
  A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, sanding accessories, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
