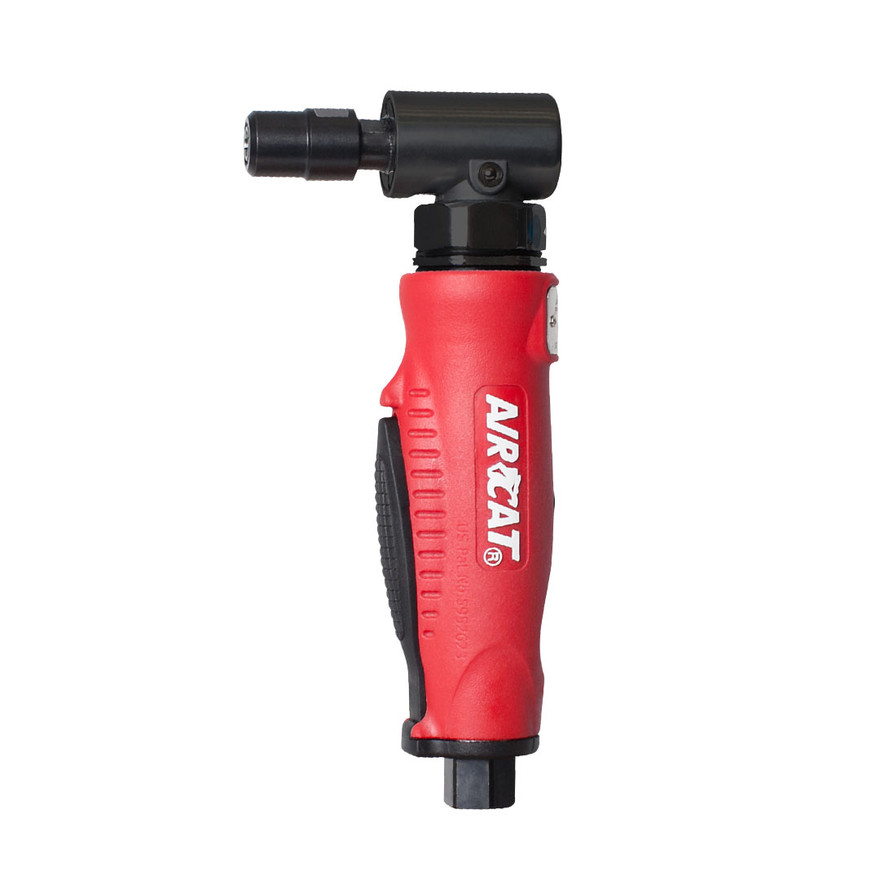

Aircat Pneumatic Tools 6255 Composite Angle Die Grinder | 0.4 HP | 20000 RPM | 1/4" Collet Size | Rear Exhaust

When tight-access finishing work requires more speed and motor output than a compact mini angle grinder, the AIRCAT 6255 1/4" Composite Angle Die Grinder gives technicians a right-angle pneumatic tool for controlled blending, smoothing, porting, deburring, and edge cleanup. Its 0.4 HP motor and 20,000 RPM free speed support work with compatible mounted stones, carbide burrs, sanding accessories, and other properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for confined-area repair, fabrication, manufacturing, commercial, and maintenance tasks.

At 1.10 lbs. and 7.00" long, the 6255 provides an angled-head layout that helps position the accessory around brackets, housings, panels, service cavities, castings, and close-clearance repair areas. The spiral bevel gear set transfers power through the right-angle head, while the rear exhaust directs air away from the front of the tool and work surface. AIRCAT lists this model with patented quiet technology at 82 dBA, superior steel-grade internal bevel gears for longer life, and a feather trigger for improved speed control during detail grinding and finishing work.

Type: Composite Angle Die Grinder | Model: 6255 | Motor: 0.4 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Gears: Spiral-Bevel | Exhaust: Rear | Weight: 1.10 lbs. | Length: 7.00" | Air Consumption: 4.2 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT | Noise Level: 82 dBA | Vibration: 2.5 m/sec²

Features:

• 0.4 HP motor and 20,000 RPM free speed support high-speed blending, smoothing, porting, deburring, and finishing work.
• 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, and rotary accessories when accessory speed ratings match the tool.
• Angle-head design helps technicians work in confined areas where a straight die grinder may not align comfortably with the surface.
• Superior steel grade internal bevel gears support longer service life during regular shop use.
• Feather trigger provides better speed control during edge cleanup, surface blending, and controlled material removal.
• Patented quiet technology reduces operating noise to 82 dBA.
• Ergonomically designed housing supports comfortable handling during repeated automotive, fabrication, commercial, and maintenance work.
• Trigger design is listed by AIRCAT as one of the most comfortable in the industry.
• Rear exhaust directs air away from the immediate work point to help keep exhaust flow off the grinding area.

Applications:

• Automotive repair: Deburring edges, preparing gasket surfaces, cleaning brackets, and performing small-area finishing around engine, brake, exhaust, and body components.
• Metal fabrication: Blending small weld details, smoothing cut edges, cleaning holes, porting, and touching up metal features after cutting, drilling, or machining.
• Manufacturing maintenance: Finishing fixtures, panels, housings, light assemblies, and production support components with properly rated 1/4" shank accessories.
• Commercial and shipbuilding work: Supporting high-speed smoothing, deburring, and cleanup where right-angle access is useful in confined work areas.
• MRO and equipment service: Removing burrs from mounts, covers, guards, brackets, and compact service components in shop and field maintenance environments.

FAQs:

• Q: What is the AIRCAT 6255 best used for?
  A: The AIRCAT 6255 is best used for high-speed blending, smoothing, porting, deburring, and finishing in confined areas. Common uses include automotive repair, fabrication cleanup, manufacturing work, equipment service, commercial maintenance, and MRO finishing.
• Q: How is the AIRCAT 6255 different from the AIRCAT 6250?
  A: The AIRCAT 6255 has a 0.4 HP motor, 20,000 RPM free speed, 1.10 lb. weight, and 7.00" length. The AIRCAT 6250 is a more compact angle die grinder listed with a 0.3 HP motor, 18,000 RPM free speed, 1.00 lb. weight, and 5.00" length.
• Q: What accessories can I use with this angle die grinder?
  A: Use compatible mounted stones, carbide burrs, sanding accessories, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 20,000 RPM operation. Always follow the accessory manufacturer's safety and speed instructions.
• Q: What does spiral-bevel gearing mean?
  A: Spiral-bevel gearing is a gear arrangement used to transfer power through the right-angle head of the grinder. On the 6255, AIRCAT lists superior steel-grade internal bevel gears for longer service life.
• Q: What air hose size should I use with the AIRCAT 6255?
  A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life.
• Q: Should I disconnect the air supply before changing accessories?
  A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, sanding accessories, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
