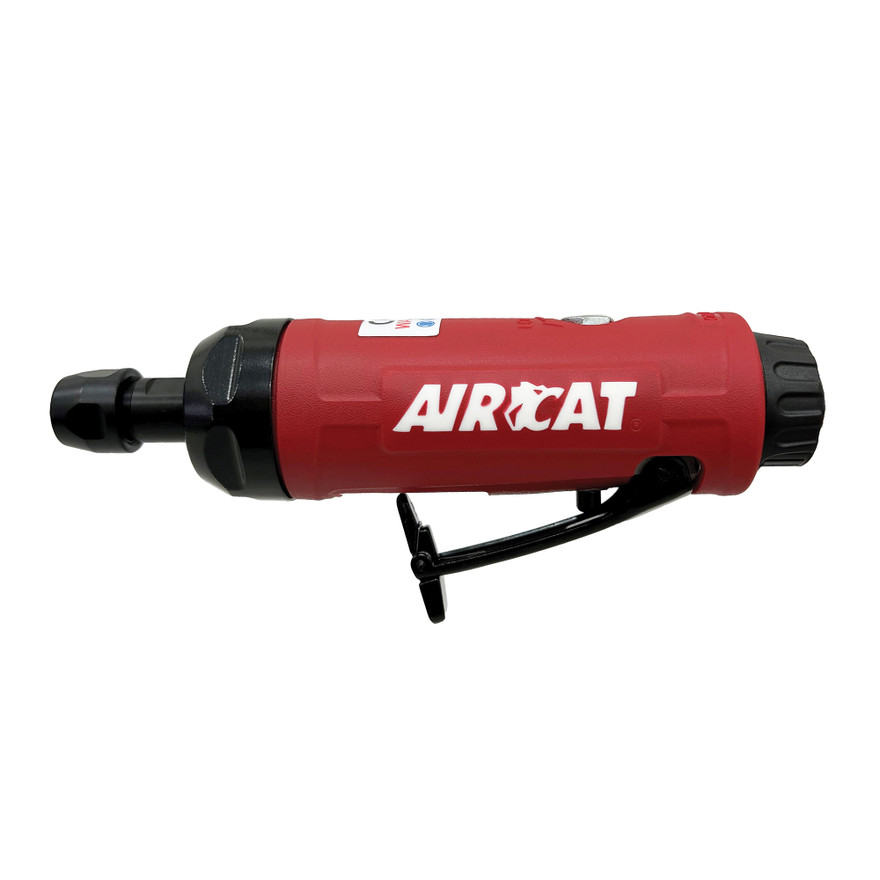

When grinding, deburring, and finishing work calls for a compact straight die grinder with a higher operating speed than 20,000 RPM models, the AIRCAT 6225 1/4" Straight Die Grinder gives technicians a lightweight pneumatic tool for controlled material removal. Its 0.5 HP motor and 22,000 RPM free speed support work with compatible mounted stones, carbide burrs, and properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for edge cleanup, burr removal, gasket-surface preparation, casting cleanup, weld-detail blending, and general shop finishing.
At 1.30 lbs. and 7.00" long, the 6225 provides a compact straight-body layout for detailed grinding while maintaining enough reach for common repair and fabrication tasks. The low weight composite housing helps keep the tool manageable during repeated finishing work, while the high quality 3-piece precision collet supports secure accessory holding. AIRCAT lists this model with a safety lock-off trigger for added safety, precision bearing construction to reduce vibration and spindle run out, and built-in silencing to reduce noise levels.
Type: Straight Die Grinder | Model: 6225 | Motor: 0.5 HP | Free Speed: 22,000 RPM | Collet Size: 1/4" | Gears: Direct Drive | Exhaust: Rear | Weight: 1.30 lbs. | Length: 7.00" | Air Consumption: 3.5 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT
Features:
- 0.5 HP motor and 22,000 RPM free speed support grinding, deburring, edge cleanup, and finishing work.
- 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, and rotary accessories when accessory speed ratings match the tool.
- Low weight composite housing helps keep the grinder manageable during repeated detail work.
- High quality 3-piece precision collet supports secure accessory holding and controlled grinding performance.
- Safety lock-off trigger helps reduce accidental starts during tool handling, positioning, and accessory setup.
- Precision bearing construction helps reduce vibration and spindle run out during high-speed operation.
- Built-in silencing reduces noise levels compared with unsilenced pneumatic grinding tools.
- Rear exhaust directs air away from the immediate work point to help keep exhaust flow off the grinding area.
Applications:
- Automotive repair: Cleaning edges, removing burrs, preparing gasket surfaces, and performing small-area finishing around engine, brake, exhaust, and body components.
- Manufacturing and fabrication: Deburring machined parts, blending edges, cleaning drilled holes, and touching up metal features after cutting, drilling, or machining.
- Commercial maintenance: Finishing brackets, housings, guards, panels, fixtures, and repair parts during general service and maintenance work.
- Shipbuilding and marine repair: Supporting small-scale cleanup, edge conditioning, and detail grinding where compact straight-tool access is useful.
- MRO and equipment service: Removing burrs from mounts, brackets, access covers, and compact service components in shop and field maintenance environments.
FAQs:
- Q: What is the AIRCAT 6225 best used for?
A: The AIRCAT 6225 is best used for grinding, deburring, edge cleanup, and finishing work where a compact straight die grinder provides good control. Common uses include automotive repair, fabrication cleanup, manufacturing work, equipment service, and MRO finishing. - Q: How is the AIRCAT 6225 different from the AIRCAT 6201?
A: The AIRCAT 6225 is listed with a 0.5 HP motor, 22,000 RPM free speed, 1.30 lb. weight, and 7.00" length. The AIRCAT 6201 is also a 0.5 HP straight die grinder, but it is listed at 20,000 RPM with an 8.50" length. - Q: What accessories can I use with this die grinder?
A: Use compatible mounted stones, carbide burrs, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 22,000 RPM operation. Always follow the accessory manufacturer's safety and speed instructions. - Q: What air hose size should I use with the AIRCAT 6225?
A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life. - Q: Should I disconnect the air supply before changing accessories?
A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
| SKU | Free Speed (RPM) |
Motor (HP) |
Collet Size (in) |
Gears | Exhaust | Weight (lbs.) |
Length (in) |
Air Cons. (CFM) |
Rec. Hose Size (in.) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6225 | 22,000 | .5 | 1/4 | Direct drive | Rear | 1.30 | 7.00 | 3.5 | 3/8 | 1/4 |
| 6210 | 20,000 | .5 | 1/4 | Direct Drive | Rear | 2.50 | 13.50 | 4.2 | 3/8 | 1/4 |
| 6285 | 23,000 | .75 | 1/4 | Direct drive | Rear | 1.40 | 7.00 | 4.1 | 3/8 | 1/4 |
Looking for more information about the Aircat Pneumatic Straight Die Grinders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
