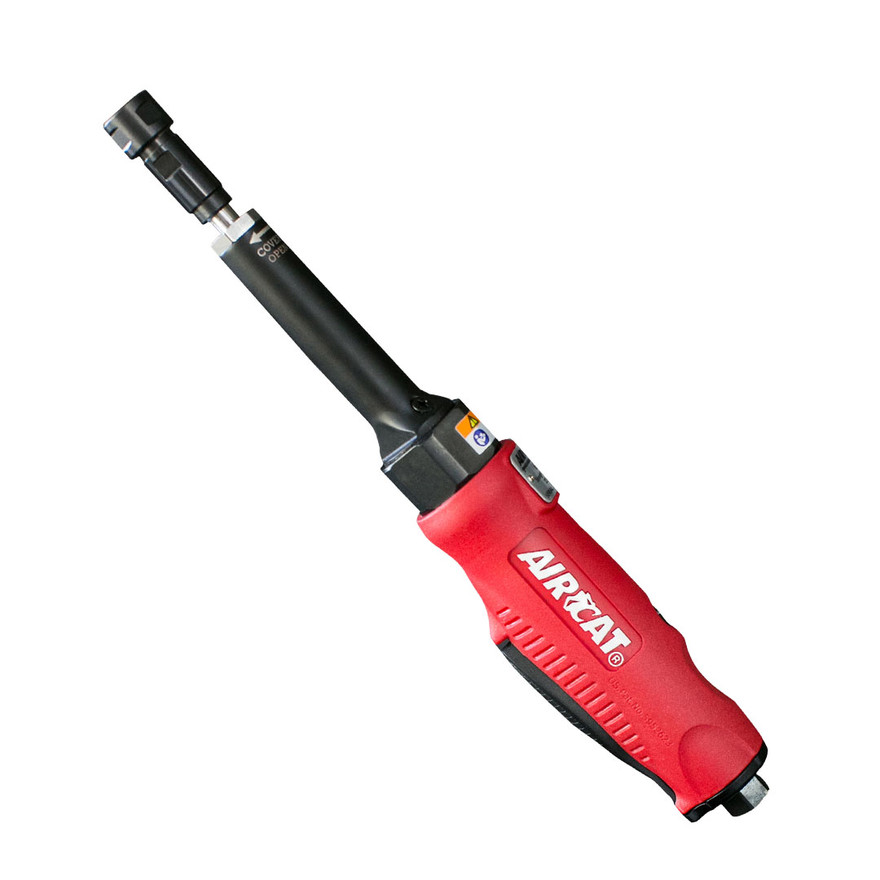

When grinding, deburring, and finishing work requires extra reach beyond a standard straight die grinder, the AIRCAT 6210 1/4" Composite Extended Straight Die Grinder gives technicians a longer pneumatic tool for accessing recessed or obstructed work areas. Its 0.5 HP motor and 20,000 RPM free speed support controlled material removal with compatible mounted stones, carbide burrs, and properly rated rotary accessories. The 1/4" collet size accepts matching 1/4" shank accessories for edge cleanup, burr removal, gasket-surface preparation, casting cleanup, weld-detail blending, and general shop finishing.
At 2.50 lbs. and 13.50" long, the 6210 is built for reach where shorter die grinders may not position the accessory comfortably on the work surface. The extended head helps technicians reach into tight spots around brackets, housings, panels, fixtures, equipment frames, and service cavities. AIRCAT's patented quiet tuned exhaust reduces sound output to 82 dBA, while the feather trigger helps the operator control speed during deburring, blending, and precision cleanup tasks.
Type: Composite Extended Straight Die Grinder | Model: 6210 | Motor: 0.5 HP | Free Speed: 20,000 RPM | Collet Size: 1/4" | Gears: Direct Drive | Exhaust: Rear | Weight: 2.50 lbs. | Length: 13.50" | Air Consumption: 4.2 CFM | Recommended Hose Size: 3/8" | Air Inlet: 1/4" NPT | Noise Level: 82 dBA | Vibration: 3.1 m/sec²
Features:
- 0.5 HP motor and 20,000 RPM free speed support grinding, deburring, edge cleanup, and finishing work.
- 1/4" collet accepts compatible 1/4" shank mounted stones, carbide burrs, and rotary accessories when accessory speed ratings match the tool.
- Extended head helps reach tight spots where shorter straight die grinders may not provide enough access.
- 13.50" overall length supports recessed-area grinding, blending, and cleanup work around surrounding components.
- Patented quiet tuned exhaust reduces operating noise to 82 dBA.
- Superior steel grade internal bearings support longer service life during regular shop use.
- Feather trigger provides better speed control during burr removal, surface blending, and material cleanup.
- Ergonomically designed housing and comfortable trigger support controlled handling during repeated finishing work.
Applications:
- Automotive repair: Reaching recessed edges, gasket areas, brackets, exhaust components, engine-bay hardware, and body repair locations that require extended tool access.
- Metal fabrication: Deburring cut edges, blending small weld details, cleaning drilled holes, and touching up metal features after cutting, drilling, or machining.
- Equipment service: Cleaning burrs and edges around housings, guards, mounts, frames, access covers, and compact repair areas.
- Manufacturing maintenance: Finishing fixtures, brackets, panels, repair components, and production support parts where a longer straight grinder helps reach the work surface.
- MRO and shop finishing: Supporting general material cleanup, surface preparation, and edge conditioning with properly rated 1/4" shank accessories.
FAQs:
- Q: What is the AIRCAT 6210 best used for?
A: The AIRCAT 6210 is best used for grinding, deburring, edge cleanup, and finishing work where technicians need more reach than a standard straight die grinder provides. Common uses include automotive repair, fabrication cleanup, equipment service, manufacturing maintenance, and MRO finishing. - Q: How is the AIRCAT 6210 different from the AIRCAT 6201?
A: The AIRCAT 6210 is the extended straight die grinder listed at 13.50" long and 2.50 lbs. The AIRCAT 6201 is a standard straight die grinder listed at 8.50" long and 1.10 lbs. Both are listed with a 0.5 HP motor and 20,000 RPM free speed. - Q: What accessories can I use with this die grinder?
A: Use compatible mounted stones, carbide burrs, and rotary accessories with the correct 1/4" shank size and a speed rating suitable for 20,000 RPM operation. Always follow the accessory manufacturer's safety and speed instructions. - Q: What air hose size should I use with the AIRCAT 6210?
A: AIRCAT lists a 3/8" recommended hose size and a 1/4" NPT air inlet for this model. Using clean, regulated air helps the grinder maintain proper speed, performance, and service life. - Q: Should I disconnect the air supply before changing accessories?
A: Yes. Disconnect the air supply and air hose before changing mounted stones, carbide burrs, collets, or other accessories. This helps prevent accidental starts while the tool is being adjusted.
| SKU | Free Speed (RPM) |
Motor (HP) |
Collet Size (in) |
Gears | Exhaust | Weight (lbs.) |
Length (in) |
Air Cons. (CFM) |
Rec. Hose Size (in.) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6225 | 22,000 | .5 | 1/4 | Direct drive | Rear | 1.30 | 7.00 | 3.5 | 3/8 | 1/4 |
| 6210 | 20,000 | .5 | 1/4 | Direct Drive | Rear | 2.50 | 13.50 | 4.2 | 3/8 | 1/4 |
| 6285 | 23,000 | .75 | 1/4 | Direct drive | Rear | 1.40 | 7.00 | 4.1 | 3/8 | 1/4 |
Looking for more information about the Aircat Pneumatic Straight Die Grinders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
