Palmgren 9683311 is a durable, Semi-Automatic Horizontal Band Saw designed for efficient metal cutting in maintenance, fabrication, and light production environments. Built with a rigid steel and cast iron frame, it offers full blade support to minimize vibration and ensure accurate cuts. Powered by a 1 HP motor running at 1725 RPM, this saw features four blade speeds (96, 132, 178, and 260 FPM), enabling optimal cutting across various metals and materials. It has a cutting capacity of 7" round stock and 7" x 11-3/4" rectangular stock, with miter cutting capability up to 45°. Additional features include hydraulic downfeed control for smooth, consistent cutting, an integrated flood coolant system to extend blade life, and a portable design with casters for easy mobility within the workshop. Ideal for maintenance shops, fabrication facilities, and light production work, the Palmgren 9683311 combines versatility, precision, and ease of use in a compact, mobile design.
Includes: operators manual, chip screen, 4 wheels, 2 axle shafts, heavy duty work stop, drive belt cover.

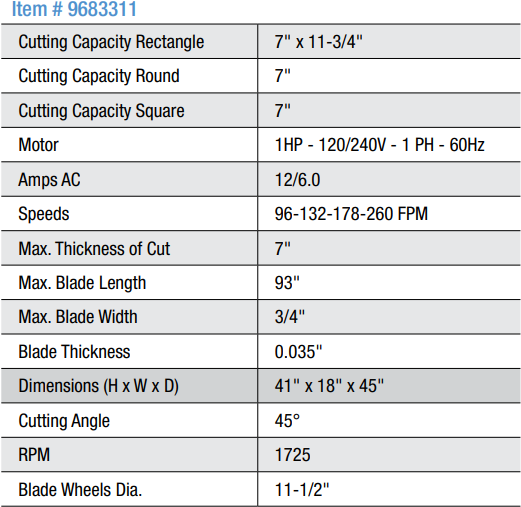

Type: Horizontal Band Saw | AMPS: 12/6.0 | Cold Saw and Band Saw Saw Type: Semi-Automatic | Coolant: Flood | Cutting Angle: 45° | Manual Horizontal Band Saw Type: Single Miter | Max. Thickness of Cut (in.): 7 | Motor (HP): 1 | Number of Spindle Speeds: 96-132-178-260 FPM | Overall Dimensions (in.): 41 x 18 x 45 | Phase: Single | RPM: 1725 | Sawing Type: Horizontal Band Saws | Voltage: 120/240
Features:
- Step pulley drive train with 4 speed settings to cover all your sawing applications
- Gear box utilizes a bronze worm gear and hardened worm shaft running in an oil bath
- Adjustable hydraulic down feed of the saw head
- Automatic shut off at end of cut
- Adjustable ball bearing blade guides delivers straight accurate cuts
- Flood coolant system cools and cleans chips from the blade
- Chip brush
- Rapid acting vise
- Adjustable material work stop
- Castors for easy positioning of the saw anywhere in the shop
Looking for more information about Palmgren Horizontal Band Saws? Click here to view the Catalog.
Need help selecting the correct Palmgren Horizontal Band Saw for your application? Please call (800) 608-5210 or email info@intlairtool.com
- Type
- Horizontal Band Saw
- AMPS
- 12/6.0
- Cold and Band Saw Type
- Semi-Automatic
- Coolant
- Flood
- Cutting Angle
- 45°
- Frequency of Use
- Intermittent Use,Light Production (Less than 25%of work day)
- Manual Horizontal Band Saw Type
- Single Miter
- Material to be Cut
- Ferrous Metals, Non-Ferrous Metals, Composites, Plastics
- Max. Thickness of Cut (in.)
- 7
- Motor (hp)
- 1
- Number of Spindle Speeds
- 96-132-178-260 FPM
- Optional Accessories
- 9683331 - Replacement Blade - Bi-Metal, 3/4 x 0.035 x 6-10 TPI
- Overall Dimensions (in.)
- 41 x 18 x 45
- Phase
- Single
- RPM
- 1725
- Sawing Type
- Horizontal Band Saws
- Type of Cutting
- Angle/Miter, Contour, Cutting-Off, Pattern/Cutting Out/Notching, Ripping,Single Piece, Stacking, Straight
- Voltage
- 120/240
